Spindle Chiller CW-5200 for 7kW to 14kW Spindle

Spindle Chiller CW-5200 for 7kW to 14kW Spindle

Spindle chiller CW-5200 can enhance the longevity of 7kW to 14kW CNC router engraver spindle, ensuring the spindle can perform at an optimum. This compact recirculating chiller comes with an intelligent control panel which provides automatic and precise temperature control. The integrated black handles mounted on top increase the mobility of the water chiller. Comparing with oil cooling counterpart, this water cooling chiller system is more efficient in energy consumption and has better cooling performance with no risk of oil contamination. Water adding and draining are pretty convenient with an easy-fill port and easy-drain port together with a clear water level check. UL certified version is available.

Inquiry

Write a Review

Product Introduction

Model: CW-5200

Machine Size: 58X29X47cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-5200TH	CW-5200DH	CW-5200TI	CW-5200DI
Voltage	AC 1P 220-240V	AC 1P 110V	AC 1P 220-240V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60Hz	60Hz
Current	0.5~4.8A	0.5~8.9A	0.4~5.7A	0.6~8.6A
Max. power consumption	0.69/0.83kW	0.79kW	0.73/0.87kW	0.79kW
Compressor power	0.56/0.7kW	0.66kW	0.56/0.7kW	0.66kW
	0.75/0.93HP	0.9HP	0.75/0.93HP	0.9HP
Nominal cooling capacity	4879Btu/h
	1.43kW
	1229Kcal/h
Pump power	0.05kW		0.09kW
Max. pump pressure	1.2bar		2.5bar
Max. pump flow	13L/min		15L/min
Refrigerant	R-134a	R-410A	R-134a	R-410A
Precision	±0.3℃
Reducer	Capillary
Tank capacity	6L
Inlet and outlet	OD 10mm Barbed connector		10mm Fast connector
N.W.	22Kg		25Kg
G.W.	25Kg		28Kg
Dimension	58X29X47cm (L X W X H)
Package dimension	65X36X51cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 1430W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant:R-134a or R-410A

* Compact, portable design and quiet operation

* High efficiency compressor

* Top mounted water fill port

* Integrated alarm functions

* Low maintenance and high reliability

* 50Hz/60Hz dual-frequency compatible available

* Optional dual water inlet & outlet

* UL certified version available

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

User-friendly control panel

The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Dust-proof filter

Integrated with the grill of the side panels, easy mounting and removal.

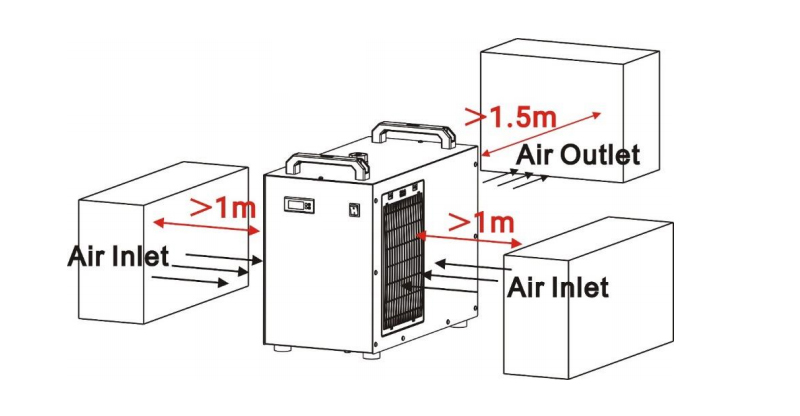

Ventilation Distance

Spindle Chiller CW-5200 Ventilation Distance

Certificate

Product Working Principle

Spindle Chiller CW-5200 Product Working Principle

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (techsupport@teyu.com.cn) first.
