TEYU 6U air-yakatonhorera rack chiller RMUP-500 inoratidzira 6U rack gomo dhizaini uye yakanakira 10W-15W UV laser, ultrafast laser, semiconductor uye laboratory chiridzwa kutonhora maapplication. Inokwirirwa mune 6U rack, iyi indasitiri yekutonhodza mvura system inobvumira kuturika kwemidziyo ine hukama, ichiratidza huwandu hwepamusoro hwekuchinjika uye kufamba. Inopa kutonhora kwakanyanya kwe ± 0.1 ° C kugadzikana nePID control tekinoroji.
Simba refiriji rerack gomo remvura chiller RMUP-500 inogona kusvika kusvika 650W. Cheki yezinga remvura inoiswa kumberi nezviratidzo zvine mufungo. Tembiricha yemvura inogona kuiswa pakati pe5°C kusvika 35°C nekugara tembiricha modhi kana nehungwaru tembiricha yekudzora modhi yekusarudza.
Muenzaniso: RMUP-500

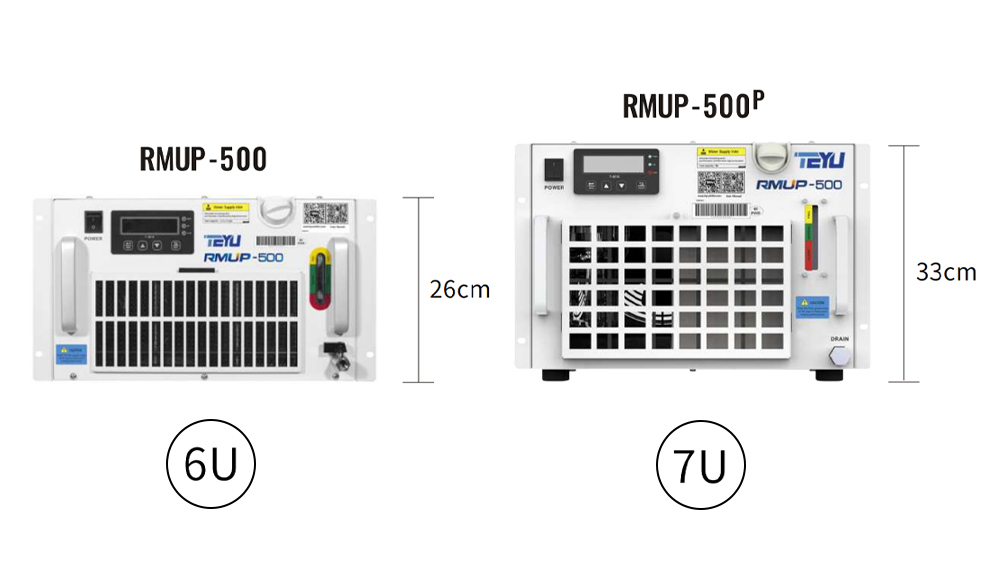

Saizi yemuchina: 49 X 48 X 26cm (L X W X H) 6U
Warranty: 2 makore
Standard: CE, REACH uye RoHS
| Model | RMUP-500AITY | RMUP-500BITY | RMUP-500ANPTY | RMUP-500BNPTY |
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 0.6~5.2A | 0.6~5.2A | 0.91~5.41A | 0.91~5.41A |
| Max. kushandiswa kwesimba | 0.98kW | 1kW | 1.99kW | 2.89kW |
| Compressor simba | 0.32kW | 0.35kW | 1.73kW | 2.09kW |
| 0.44HP | 0.46HP | 2.32HP | 2.8HP | |
| Nominal kutonhora simba | 2217Btu/h | 4229Btu/h | ||
| 0.65kW | 1.24kW | |||
| 558Kcal/h | 1064Kcal/h | |||
| Refrigerant | R-134a | R-407c | ||
| Precision | ±0.1℃ | |||
| Reducer | Capillary | |||
| Tangi kugona | 5.5L | 7L | ||
| Inlet uye outlet | Rp1/2” | |||
| Pombi simba | 0.09kW | 0.2kW | ||
| Max. pombi pressure | 2.5bar | 4.0bar | ||
| Max. kuyerera kwepombi | 15L/min | 38L/min | ||
| N.W | 21Kg | 35Kg | ||
| G.W | 24Kg | 39Kg | ||
| Dimension | 49X48X26cm (L X W X H) 6U | 67x48x33cm (L X W X H) 7U | ||
| Package dimension | 59X53X34cm (L X W X H) | 74x57x50cm (L X W X H) | ||
Iko kushanda ikozvino kunogona kunge kwakasiyana pasi pemamiriro akasiyana ekushanda. Ruzivo rwuri pamusoro nderwekureva chete. Ndokumbira uzviise kune chaiyo yaunzwa chigadzirwa.
Mabasa ane njere
* Yakaderera tangi yemvura level yekuona
* Yakaderera mvura inoyerera mwero wekuona
* Pamusoro pemvura tembiricha yekuona
*Kupisa kwemvura inotonhorera pakadzikama ambient tembiricha
Kuzvitarisa-tarisa kuratidza
* 12 mhando dzearamu makodhi
Easy routine maintenance
* Kusashanda kugadzirisa kweguruva refirita skrini
* Inokurumidza-inotsiva sarudzo yemvura sefa
Kukurukurirana basa
* Yakashongedzerwa neRS485 Modbus RTU protocol
Heater
Sefa
US yakajairika plug / EN yakajairika plug

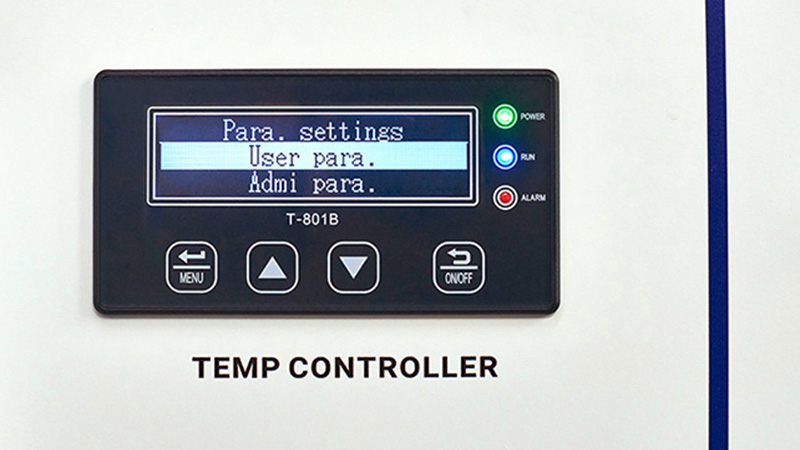

Digital tembiricha controller
Iyo T-801B tembiricha controller inopa yakanyanya kunyatso kudzora tembiricha ye ± 0.1 ° C.

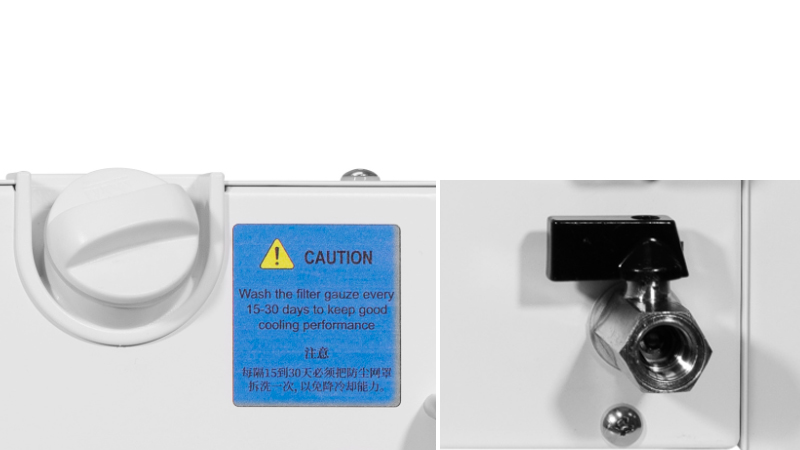

Kumberi kwakaiswa mvura inozadza chiteshi uye chiteshi chemvura
Iyo mvura inozadza chiteshi uye yekudhonza chiteshi inoiswa kumberi kuitira nyore kuzadza mvura uye kudhonza.

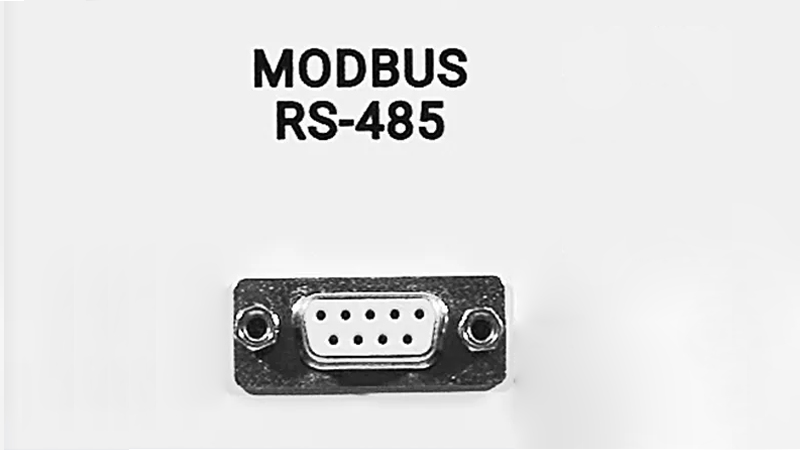

Modbus RS485 kutaurirana chiteshi
