Endistriyèl Chiller CW-5200-Hot-vann dlo Chiller inite nan Teyu Chiller manifakti

Industrial Chiller CW-5200 - Hot-selling Water Chiller Unit of TEYU Chiller Manufacturer

Industrial chiller CW-5200 stands out as one of the hot-selling water chiller units within the TEYU Chiller lineup. It features a small structure, compact footprint and lightweight design. Small though, CW-5200 industrial chiller has a cooling capacity of up to 1430W, while delivering a temperature precision of ±0.3℃. It's manufactured with premium evaporator, high-efficiency compressor, energy-efficient pump, and low-noise fan... Constant and intelligent temperature control modes are switchable for different needs. For safety operation, small industrial chiller CW-5200 is also equipped with multiple alarm protection functions. Rest assured, a 2-year warranty is supported. Being energy-saving, highly reliable and low maintenance, portable industrial water chiller CW-5200 is favored among many industrial processing professionals to cool their motorized spindle, CNC machine tool, CO2 laser, welder, printer, LED-UV, packing machine, vacuum sputter coaters, rotary evaporator, acrylic folding machine, etc.

jouda

Ekri yon revizyon

Entwodiksyon pwodwi

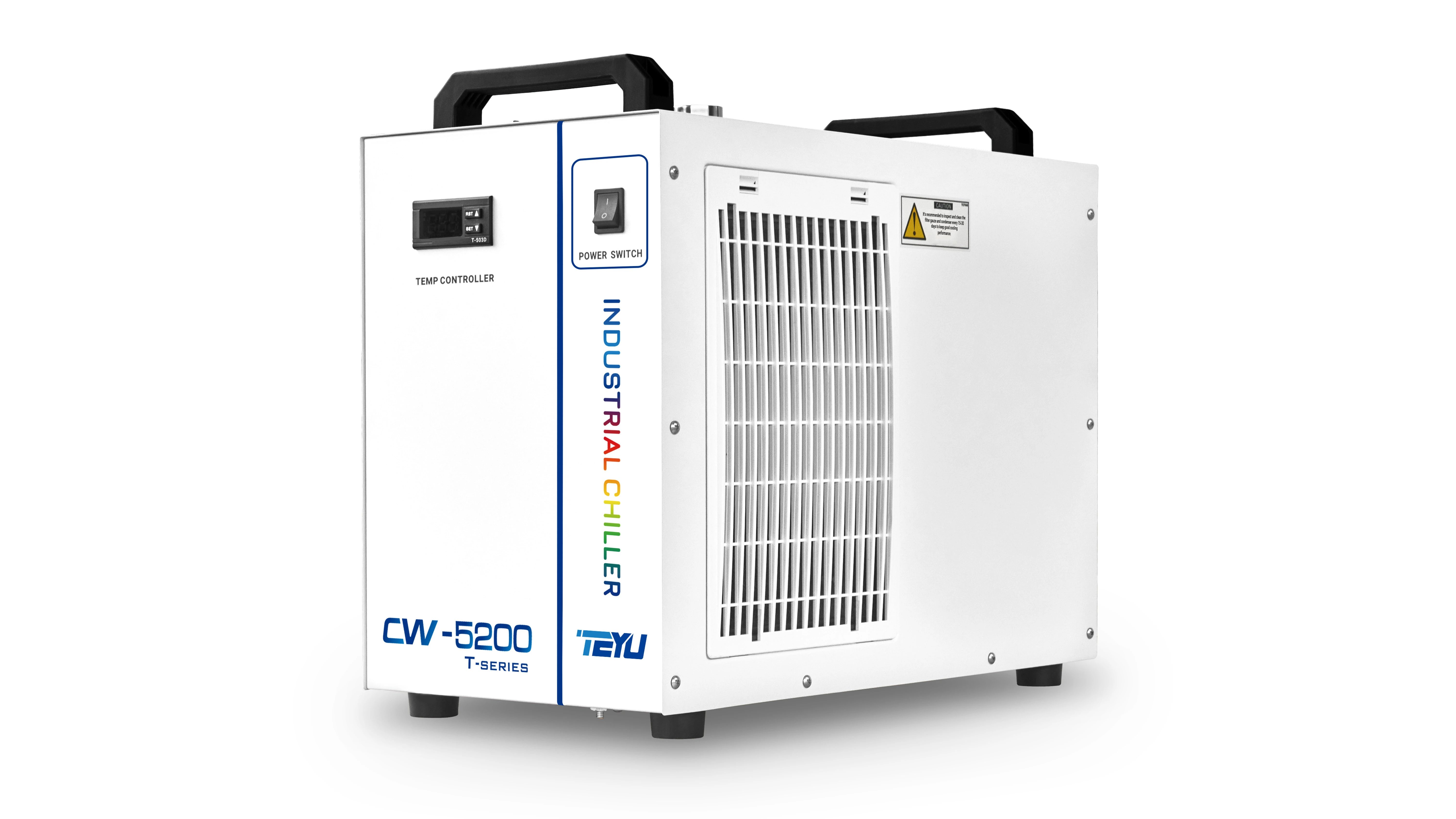

Industrial Chiller CW-5200 - Hot-selling Water Chiller Unit of TEYU Chiller Manufacturer

Modèl: CW-5200

Gwosè machin: 58X29X47cm (LXWXH)

Garanti: 2 zan

Estanda: CE, REACH ak RoHS

Paramèt pwodwi yo

Modèl	CW-5200THTY	CW-5200DHTY	CW-5200TITY	CW-5200DITY
Vòltaj	AC 1P 220~240V	AC 1P 110V	AC 1P 220~240V	AC 1P 110V
Frekans	50/60Hz	60Hz	50/60Hz	60Hz
Kouran	0.5~4.8A	0.5~8.9A	0.4~5.7A	0.6~8.6A
Maksimòm konsomasyon enèji	0.69/0.83kilowat	0.79kilowat	0.73/0.87kilowat	0.79kilowat
Pouvwa konpresè	0.56/0.7kilowat	0.66kilowat	0.56/0.7kilowat	0.66kilowat
	0.75/0.93HP	0.9HP	0.75/0.93HP	0.9HP
Kapasite refwadisman nominal	4879Btu/èdtan
	1.43kilowat
	1229Kcal/èdtan
Pouvwa ponp	0.05kilowat		0.09kilowat
Maksimòm presyon ponp	1.2ba		2.5ba
Maksimòm koule ponp	13L/min		15L/min
Frijidè	R-134a	R-410A	R-134a	R-410A
Presizyon	±0.3℃
Rediktè	Kapilè
Kapasite tank	6L
Antre ak sòti	Konektè barb OD 10mm		Konektè rapid 10mm

N.W.	22kilogram		25kilogram
G.W.	25kilogram		28kilogram
Dimansyon	58X29X47cm (Longè/Lajè/Hò)
Dimansyon pake a	65X36X51cm (Longè/Lajè/Hò)

Kouran k ap travay la ka diferan anba diferan kondisyon travay. Enfòmasyon ki anwo yo se pou referans sèlman. Tanpri, depann sou pwodwi reyèl ki te delivre a.

Karakteristik pwodwi yo

* Kapasite Refwadisman: 1430W

* Refwadisman aktif

* Estabilite tanperati: ±0.3°C

* Ranje kontwòl tanperati: 5°C ~35°C

* Frijidè: R-134a oswa R-410A

* Konsepsyon kontra enfòmèl ant, pòtab ak operasyon trankil

* Konpresè ki gen gwo efikasite

* Pò ranpli dlo monte anlè a

* Fonksyon alam entegre

* Ti antretyen ak gwo fyab

* Konpatib ak doub frekans 50Hz/60Hz disponib

* Si ou vle, doub antre dlo & priz

Aplikasyon

* Lazè CO2 (kouto lazè, graveur, soudeur, makè, elatriye)

* Machin enprime (enprimant lazè, enprimant 3D, enprimant UV, enprimant jè lank, elatriye)

* Machin zouti ( file koton gwo vitès, tour, moulen, machin perçage, machin fraisage, elatriye )

* Machin soude

* Machin anbalaj

* Machin bòdi plastik

* Evaporatè rotatif

* Kouvèti vakyòm pou pulverizasyon

* Machin pliye Acrylic

* Machin grave plasma

Atik Opsyonèl

Chofaj

Filtre

Ploge estanda Etazini / Ploge estanda EN

Detay pwodwi

Hot-selling Water Chiller CW-5200 User-friendly control panel

Panèl kontwòl fasil pou itilize

Kontwolè tanperati a ofri yon kontwòl tanperati ki gen gwo presizyon ±0.3°C ak de mòd kontwòl tanperati reglabl pa itilizatè a - mòd tanperati konstan ak mòd kontwòl entelijan.

Industrial Chiller CW-5200 Easy-to-read water level indicator

Endikatè nivo dlo fasil pou li

Endikatè nivo dlo a gen 3 zòn koulè - jòn, vèt ak wouj.

Zòn jòn - nivo dlo ki wo.

Zòn vèt - nivo dlo nòmal.

Zòn wouj - nivo dlo a ba.

Filtè ki reziste pousyè

Entegre ak griyaj panno bò yo, fasil pou monte ak retire.

Distans Vantilasyon

Industrial Chiller CW-5200 Ventilation Distance

Sètifika

Prensip Travay Pwodwi a

Industrial Water Chiller CW-5200 Product Working Principle

FAQ

Èske TEYU Chiller se yon konpayi komès oswa yon manifakti?

Nou se yon manifakti pwofesyonèl pou refwadisman dlo endistriyèl depi 2002.

Ki dlo yo rekòmande pou itilize nan refwadisè dlo endistriyèl la?

Dlo ideyal la ta dwe dlo deyonize, dlo distile oswa dlo pirifye.

Konbyen fwa mwen ta dwe chanje dlo a?

Anjeneral, frekans chanjman dlo a se chak 3 mwa. Li kapab depann tou de anviwònman travay reyèl refwadisè dlo resikle yo. Pa egzanp, si anviwònman travay la twò enferyè, yo sijere ke frekans chanjman an se 1 mwa oswa mwens.

Ki tanperati chanm ideyal pou refwadisman an?

Anviwònman travay refwadisè dlo endistriyèl la ta dwe byen ayere epi tanperati chanm nan pa ta dwe pi wo pase 45 degre Sèlsiyis.

Kijan pou anpeche frijidè mwen an jele?

Pou itilizatè k ap viv nan zòn latitid ki wo, sitou nan sezon ivè, yo souvan fè fas ak pwoblèm dlo jele. Pou anpeche refrijerè a jele, yo ka ajoute yon aparèy chofaj opsyonèl oswa ajoute anti-frizè nan refrijerè a. Pou plis detay sou itilizasyon anti-frizè a, li sijere pou kontakte ekip sèvis kliyan nou an (service@teyuchiller.com) premye.
