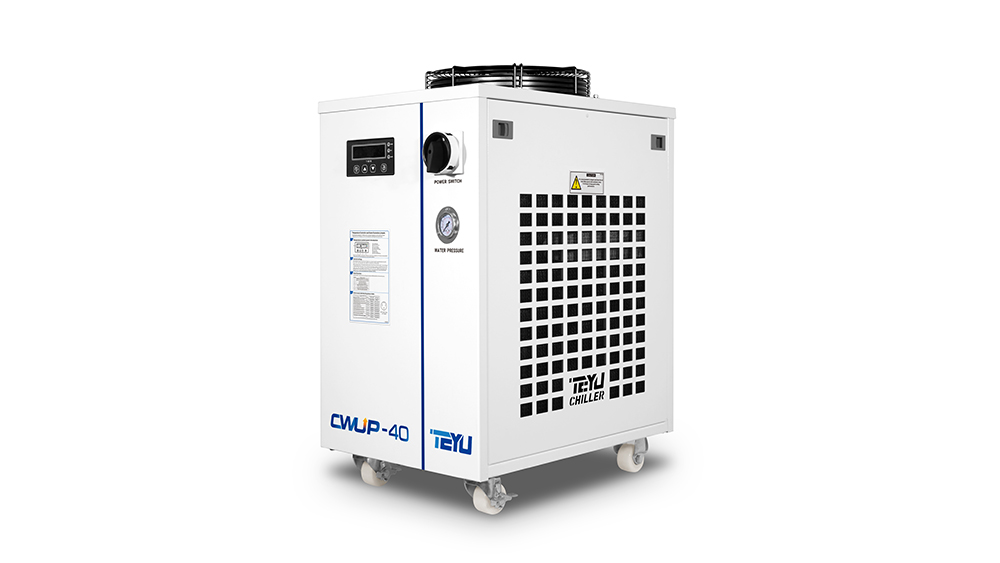

Ultrafast Precision Laser Process Cooling System CWUP-40 ±0.1°C Kugadzikana Modbus-485 Communication
Unyanzvi hwedu muhunyanzvi hwekutonhodza tekinoroji hunoturikira mune iyi diki laser process water chiller CWUP-40 . Iyi chiller inogona kunge iri nyore mukugadzira asi ichipa kutonhora chaiko kuine ± 0.1 ° C kugadzikana nePID control tekinoroji uye kuyerera kwakadzikama kwemvura inotonhorera kune ako ekupedzisira anokurumidza lasers uye UV lasers. Modbus 485 kutaurirana basa rakagadzirirwa kupa kutaurirana kunoshanda pakati pechiller nelaser system.
TEYU ultrafast precision laser chiller CWUP-40 yakanyatsozvimiririra, inosanganisa yakakwirira inoshanda compressor uye yakasimba fan-yakatonhorera condenser uye inokodzera kunatswa mvura, distilled mvura kana deionized mvura. Iyo mvura inozadza chiteshi uye chiteshi chemvura chakaiswa kumashure pamwe neinofungisisa yemazinga emvura. Yakangwara yedhijitari control panel inoratidza tembiricha uye yakavakirwa-mukati alarm macode. Iyi chiller ine hushamwari kwezvakatipoteredza, inochengetedza simba, yakanyanya-kushanda, uye yakasimbiswa neEC, RoHS uye REACH.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Ndokumbirawo zadza fomu pazasi kukumbira quote kana kukumbira rumwe ruzivo nezvedu. Ndokumbira uve nerondedzero sezvinobvira mune yako meseji, uye isu tichadzokera kwauri nekukurumidza sezvinobvira nemhinduro. Isu takagadzirira kutanga kushanda pane yako itsva chirongwa, taura nesu ikozvino kuti titange.
Product Sumo
Muenzaniso: CWUP-40
Saizi yemuchina: 70X47X89cm (LXWXH)
Warranty: 2 makore
Standard: CE, REACH uye RoHS
Product Parameters
| Model | CWUP-40ANTY | CWUP-40BNTY | CWUP-40AN5TY | CWUP-40BN5TY |
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 1P 220~240V | AC 1P 220~240V |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 2.3~11.1A | 2.1~11.4A | 3.4~17.7A | 3.9~21.1A |
Max. kushandiswa kwesimba | 2.19kW | 2.45kW | 3.63kW | 4.07kW |
| 0.92kW | 1.16kW | 1.55kW | 1.76kW |
| 1.25HP | 1.58HP | 2.1HP | 2.4HP | |
| 10713Btu/h | 17401Btu/h | ||
| 3.14kW | 5.1kW | |||
| 2699Kcal/h | 4384Kcal/h | |||
| Refrigerant | R-410A /R32 | R-410A | ||
| Precision | ±0.1℃ | |||
| Reducer | Capillary | |||
| Pombi simba | 0.37kW | 0.55kW | 0.75kW | |
| Tangi kugona | 14L | 22L | ||
| Inlet uye outlet | Rp1/2” | |||
Max. pombi pressure | 2.7 bha | 4.4 bha | 5.3 bha | |
| Max. kuyerera kwepombi | 75L/min | |||
| N.W. | 59Kg | 67Kg | ||
| G.W. | 70Kg | 79Kg | ||
| Dimension | 70X47X89cm (LXWXH) | |||
| Package dimension | 73X57X105cm (LXWXH) | |||
Iko kushanda ikozvino kunogona kunge kwakasiyana pasi pemamiriro akasiyana ekushanda. Ruzivo rwuri pamusoro nderwekureva chete. Ndokumbira uzviise kune chaiyo yaunzwa chigadzirwa.
Product Features
Mabasa ane njere
* Yakadzika tangi yemvura level yekuona
* Yakaderera mvura inoyerera mwero wekuona
* Pamusoro pemvura tembiricha yekuona
*Kupisa kwemvura inotonhorera pakadzikama ambient tembiricha
Kuzvitarisa-tarisa kuratidza
* 12 mhando dzearamu makodhi
Easy routine maintenance
* Kusashanda kugadzirisa kweguruva refirita skrini
* Inokurumidza-inotsiva sarudzo yemvura sefa
Kukurukurirana basa
* Yakashongedzerwa neRS485 Modbus RTU protocol
Optional Items
Product Details

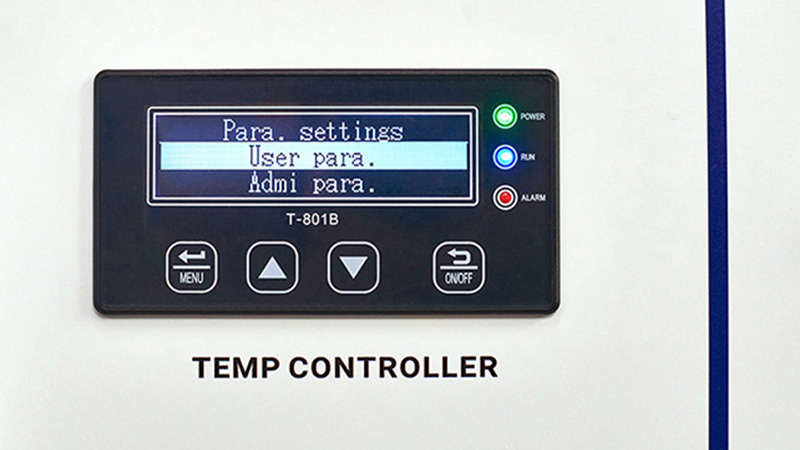

Digital tembiricha controller
Iyo T-801B tembiricha controller inopa yakanyanya kunyatso kudzora tembiricha ye ± 0.1 ° C.

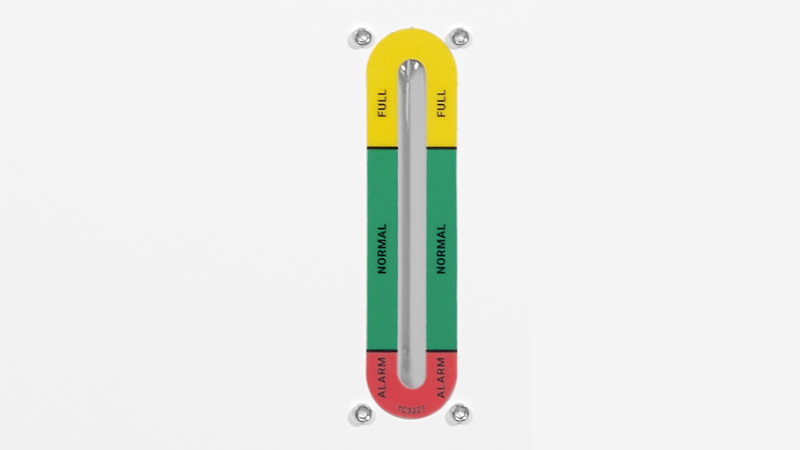

Chiratidzo chechiyero chemvura chiri nyore-kuverenga
Chiratidzo chechiyero chemvura chine nzvimbo nhatu dzemavara - yero, girini uye tsvuku.
Yellow area - yakakwirira yemvura.
Green area - yakajairika mvura mwero.
Nzvimbo yakatsvuka - pasi pemvura.

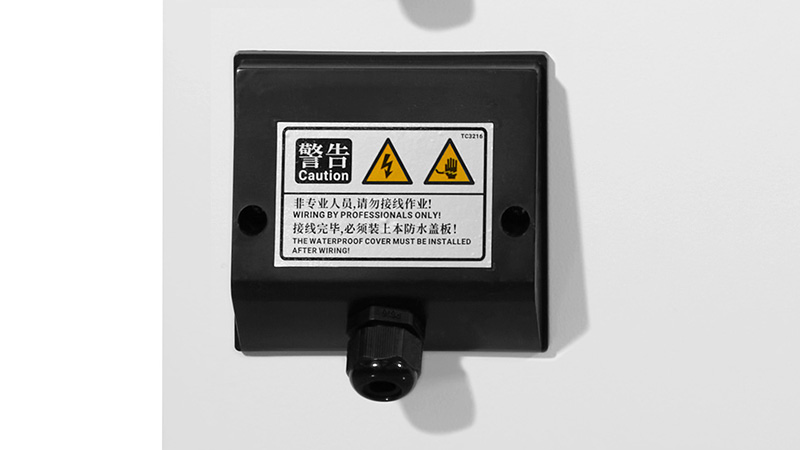

Modbus RS485 yekutaurirana chiteshi yakabatanidzwa mumagetsi ekubatanidza bhokisi
Iyo RS485 yekutaurirana port yakabatanidzwa mumagetsi yekubatanidza bhokisi inogonesa kutaurirana nelaser system.

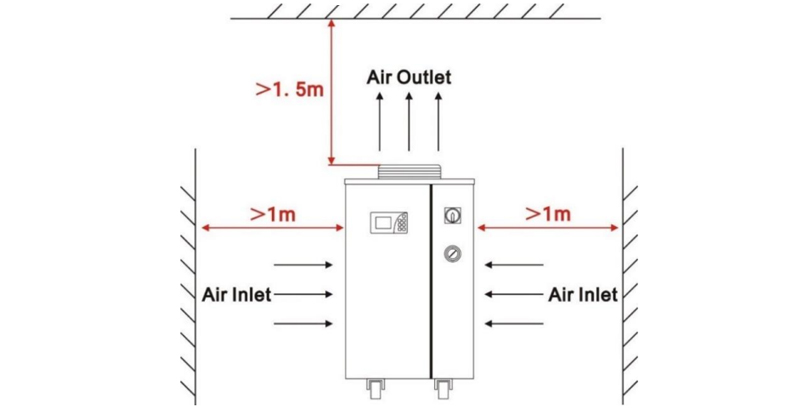

Ventilation Distance
Chitupa

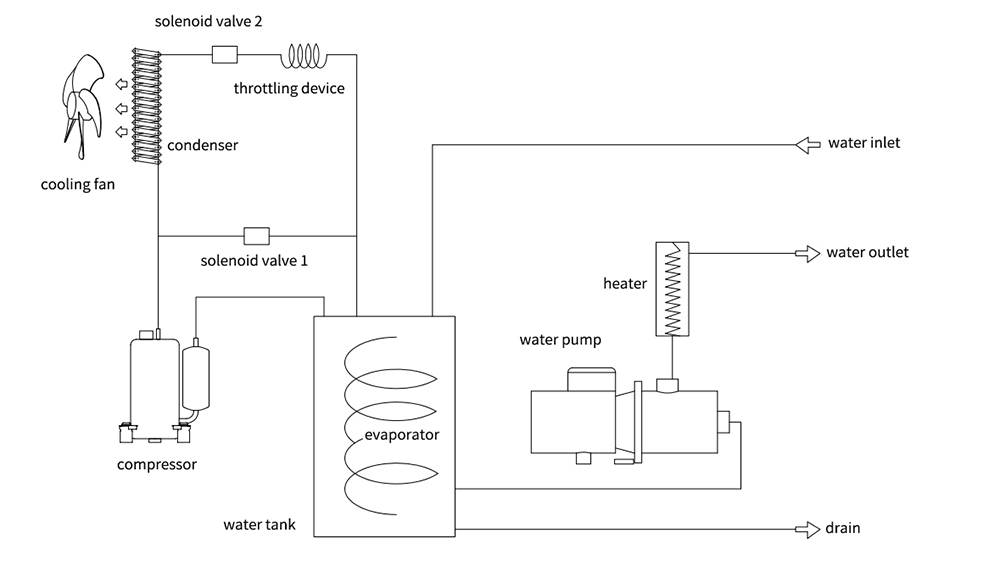

Product Working Principle
FAQ
Ko TEYU Chiller ikambani yekutengesa kana mugadziri?
Isu tiri nyanzvi maindasitiri chiller mugadziri kubvira 2002.
Ndeipi mvura inokurudzirwa inoshandiswa muindasitiri yemvura inotonhorera?
Mvura yakakodzera inofanira kuva mvura yakasvibiswa, mvura yakasvibiswa kana mvura yakacheneswa.
Ndinofanira kuchinja mvura kakawanda sei?
Kazhinji kutaura, mvura inochinja frequency ndeye 3 mwedzi. Inogonawo kutsamira pane chaiyo yekushanda nharaunda ye recirculating mvura chillers. Semuenzaniso, kana nzvimbo yekushanda yakanyanya kuderera, iyo inoshanduka frequency inokurudzirwa kuva 1 mwedzi kana kupfupika.
Ndeipi kamuri yakakodzera tembiricha yekutonhora kweindasitiri?
Nzvimbo yekushanda yemuindastiri yemvura inotonhorera inofanirwa kunge ichifefeterwa zvakanaka uye tembiricha yemumba haifanire kunge yakakwira kupfuura 45 degrees C.
Nzira yekudzivirira sei chiller yangu kubva kuchando?
Kune vashandisi vanogara munzvimbo dzakakwirira kunyanya munguva yechando, vanowanzotarisana nedambudziko remvura yakaoma nechando. Kudzivirira kutonhora kubva kuchando, vanogona kuwedzera hita yesarudzo kana kuwedzera anti-firiza muchando. Kuti ushandise zvakadzama anti-freezer, zvinokurudzirwa kubata timu yedu yekutsigira vatengi (service@teyuchiller.com ) chekutanga.
