I-industrial water chiller yokukhanya okukhokelela kwiskena

S&A I-Teyu CW-6000 i-chiller yamanzi kwimizi-mveliso ingasetyenziselwa ukupholisa ukukhanya okukhokelela kwiskena.
I-CW-6000 yokupholisa amanzi inomthamo wokupholisa we-3000W kunye nozinzo ± 0.5 ℃, ineendlela ezi-2 zokulawula ubushushu njengobushushu obuqhubekayo kunye nokulawula ubushushu obukrelekrele.

CW-6000 recirculating water chillers iveliswa yi Guangzhou Teyu Electromechanical Co., Ltd. Ngaphezu kweminyaka eli-16 ekuhlolweni kunye noqeqesho, sidibanisa amaqashiso amacandelo aphezulu ababoneleli. Iimpawu zethu "S&A Teyu" kunye ne "TEYU" zifumene imvume kunye nokuthenjwa kumawakawaka abavelisi basekhaya nakwamanye amazwe nto leyo eyenza ukuba izinga lemveliso yethu yokuthumela ngaphandle ligcinwe ngaphezulu kwe-60% kwixesha elide.

S&A I-Teyu i-chiller yamanzi yoshishino ithandwa kwiindlela zayo zokulawula ubushushu ezi-2 njengemowudi yokushisa eqhubekayo kunye nemowudi yokulawula ubushushu obukrelekrele.Ngokuthetha ngokubanzi, ukusetwa okungagqibekanga kumlawuli wobushushu yimowudi yokulawula ubushushu obukrelekrele. Phantsi kwemowudi yokulawula ubushushu obukrelekrele, ubushushu bamanzi buya kuzilungisa ngokwawo ngokweqondo lobushushu elikhoyo. Nangona kunjalo, phantsi kwemodi yokulawula ubushushu obuqhubekayo, abasebenzisi banokuhlengahlengisa ubushushu bamanzi ngesandla.

1. 3000W amandla okupholisa; ifriji ekhethiweyo yokusingqongileyo;
2. ±0.5℃ ngokuchanekileyo ulawulo lobushushu;
3. Umlawuli weqondo lokushisa uneendlela ezi-2 zokulawula, ezisebenzayo kwiimeko ezahlukeneyo ezisetyenzisiweyo; kunye nemisebenzi eyahlukeneyo yokuseta kunye nokubonisa;
4. Imisebenzi ye-alamu emininzi: ukukhuselwa kwexesha lokulibaziseka kwe-compressor, ukukhuselwa kwe-compressor overcurrent, i-alamu yokuhamba kwamanzi kunye ne-alamu ephezulu / ephantsi yokushisa;
5. Iimpawu ezininzi zamandla; CE imvume; Imvume ye-RoHS; FIKELELA kwimvume;
6. Isifudumezisi esinokuzikhethela kunye nesihluzo samanzi

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

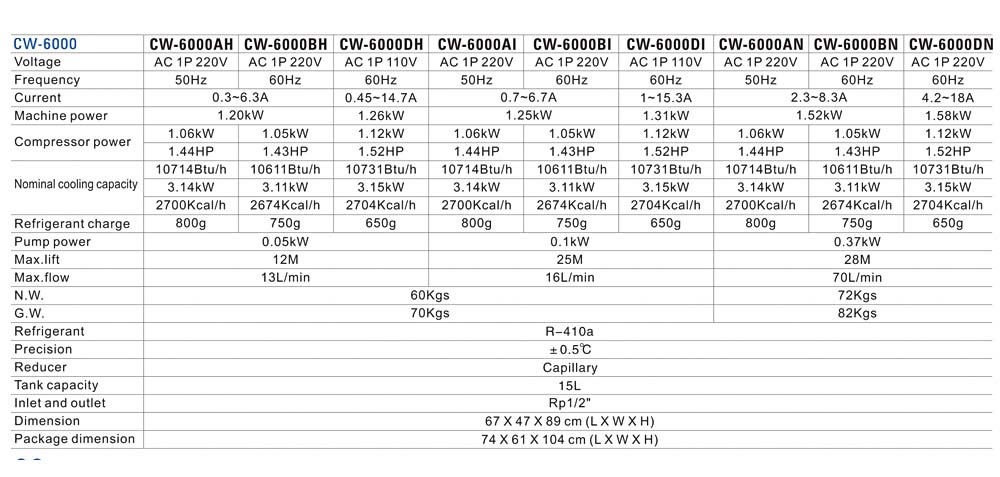

Ukujikeleza kwakhona inkcazo ye-chillers

Qaphela: ukusebenza kwangoku kunokwahluka phantsi kweemeko ezahlukeneyo zokusebenza; Ezi nkcukacha zingentla zenzelwe ireferensi kuphela. Nceda uxhomekeke kweyona mveliso ithunyelweyo.

  PRODUCT INTRODUCTION

Imveliso ezimeleyo yeshiti lesinyithi, i-evaporator kunye ne-condenser

Ukhuseleko lwe-alam oluninzi.

Yamkela i-IPG i-fiber laser ye-welding kunye nokusika isinyithi. I-laser iya kuyeka ukusebenza xa ifumana isignali ye-alam kwi-chiller yamanzi ngenjongo yokukhusela.

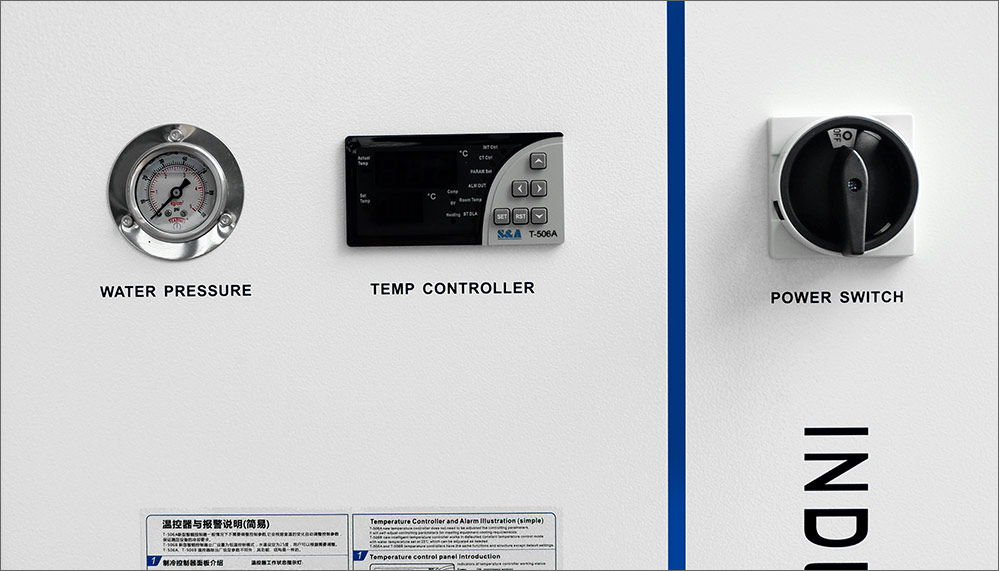

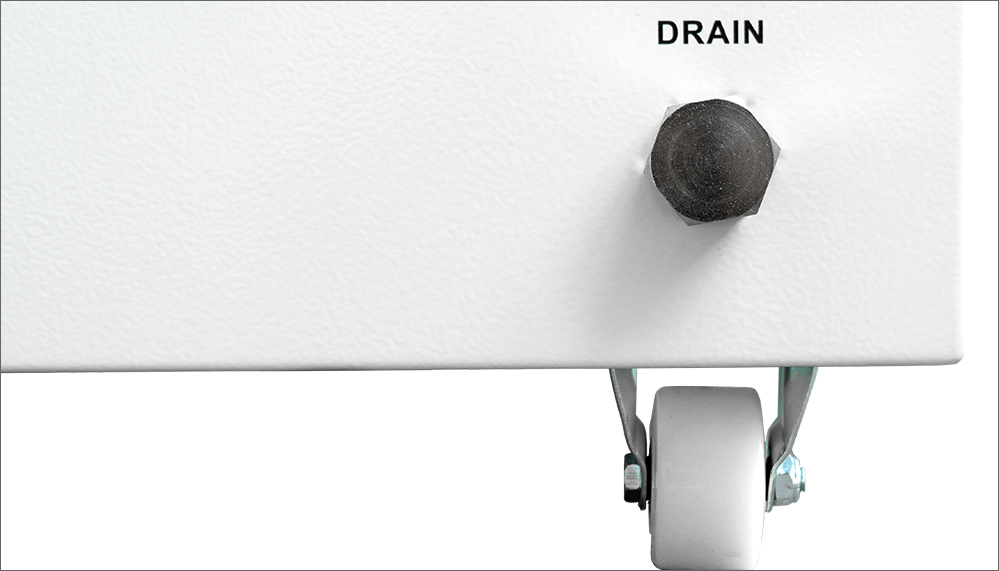

Ixhotyiswe ngeegeji zoxinzelelo lwamanzi kunye namavili endalo yonke.

Iigeyiji zoxinzelelo lwamanzi zinceda esweni ukukhutshwa koxinzelelo lwempompo yamanzi ngelixa amavili endalo yonke eququzelela ukuhamba kwe-chiller.

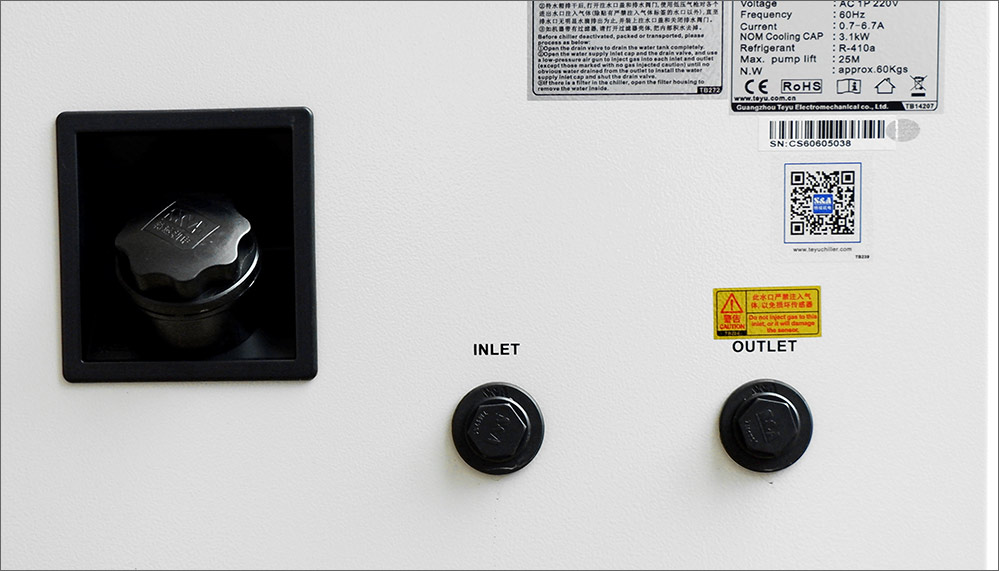

Isidibanisi sokungena kunye nesikhuphayo sixhotyiswe.

I-Chiller inlet idibanisa kwi-laser outlet connector. I-Chiller outlet idibanisa i-laser inlet connector.

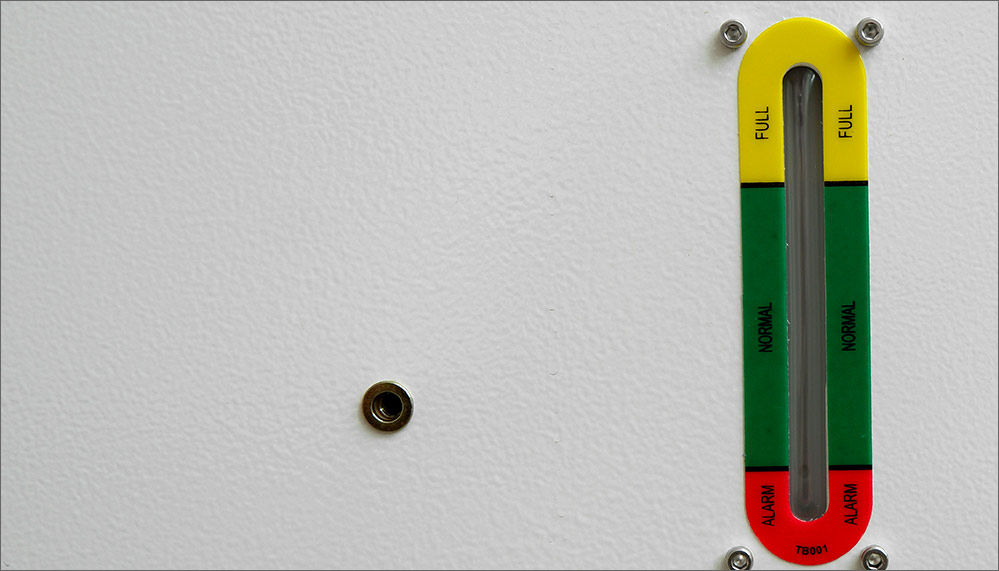

I-level gauge ixhotyiswe.

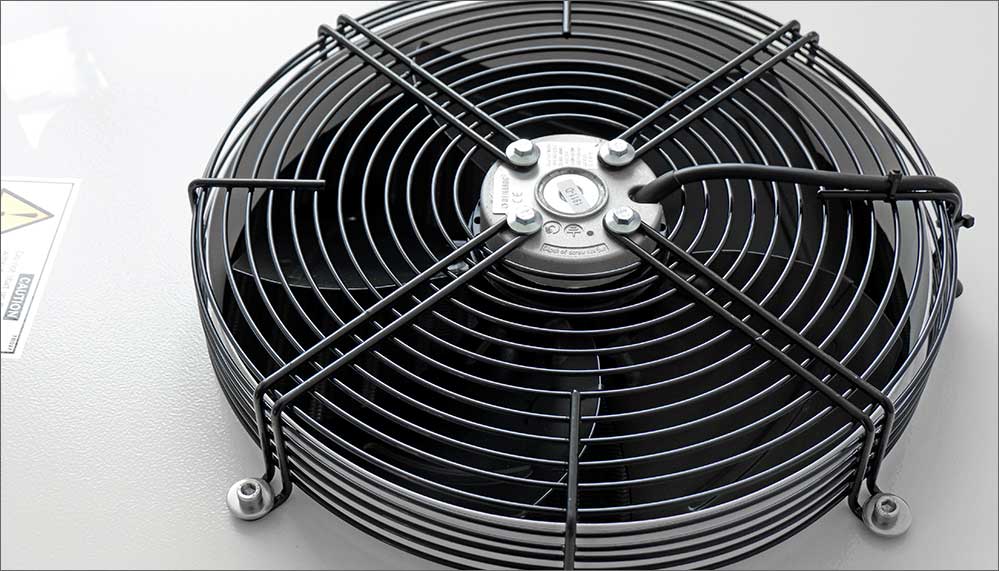

Umlandeli wokupholisa wophawu oludumileyo olufakiweyo.

Ngomgangatho ophezulu kunye nezinga lokungaphumeleli eliphantsi.

Igauze yothuli eyenziwe ngokwezifiso iyafumaneka kwaye kulula ukuyiqhawula.

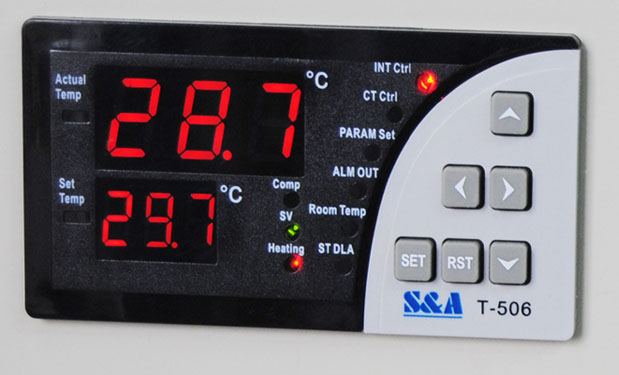

  TEMPERATURE CONTROLLER PANEL DESCRIPTION

Umlawuli weqondo lokushisa ohlakaniphile akadingi ukulungelelanisa iiparitha zokulawula phantsi kweemeko eziqhelekileyo. Iya kuzilungisa ngokwayo iiparamitha zokulawula ngokweqondo lobushushu begumbi ukuhlangabezana neemfuno zokupholisa izixhobo.

Umsebenzisi unokuhlengahlengisa ubushushu bamanzi njengoko kufuneka.

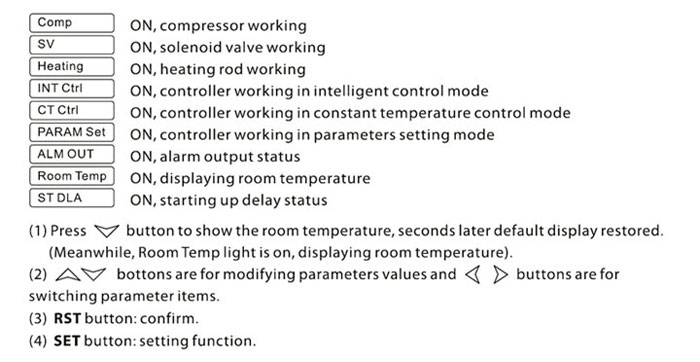

Inkcazelo yepaneli yokulawula ubushushu:

   Umsebenzi we-alam

(1) Umboniso weAlam :

E1 - iqondo lokushisa eliphezulu kakhulu
I-E2 - iqondo lokushisa eliphezulu lamanzi
I-E3 - ubushushu bamanzi aphantsi kakhulu
I-E4 - ukungaphumeleli kwenzwa yeqondo lokushisa
I-E5 - ukungaphumeleli kwenzwa yokushisa kwamanzi
I-E6 - igalelo le-alamu yangaphandle
I-E7 - igalelo le-alarm yokuhamba kwamanzi

Xa i-alam isenzeka, ikhowudi yempazamo kunye neqondo lobushushu liya kuboniswa ngokuhlukileyo .
(2) Ukunqumamisa isivusi:
Kwimeko eyothusayo, isandi se-alam sinokunqunyanyiswa ngokucofa naliphi na iqhosha, kodwa isiboniso se-alam sihlala de imeko ye-alam isuswe.

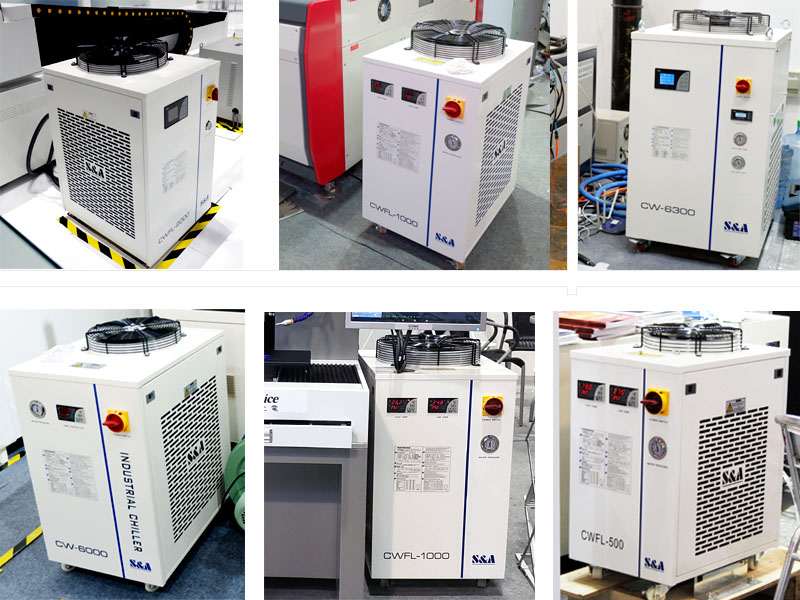

  CHILLER APPLICATION



---

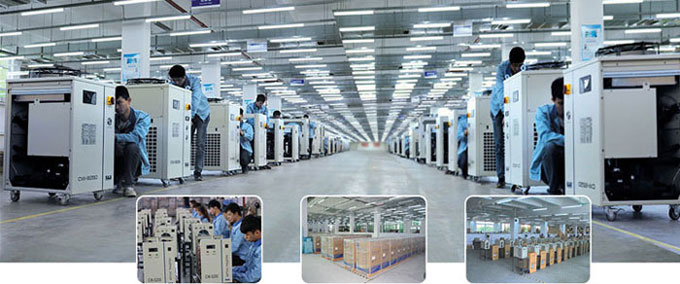

  WAREHOUSE

I-18,000 yeemitha zesikwere kraca kwiziko lophando lwenkqubo yefriji yefriji entsha kunye nesiseko semveliso. Yenza ngokungqongqo inkqubo yolawulo lwemveliso ye-ISO, kusetyenziswa imveliso yomgangatho wemodyuli eninzi, kunye nemilinganiselo yemigangatho efikelela kuma-80% engumthombo wozinzo lomgangatho.

Umthamo wonyaka wemveliso yeeyunithi ezingama-60,000, kugxilwe kumandla amakhulu, aphakathi kunye namancinci imveliso yechiller kunye nokuveliswa .

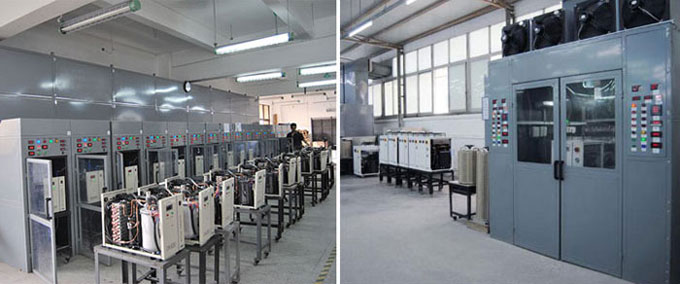

  TEST SYSTEM

Ngenkqubo yovavanyo lwelabhoratri egqwesileyo, ilinganisa indawo yokusebenza yokwenyani ye-chiller. Uvavanyo lomsebenzi lulonke phambi kokunikezelwa: uvavanyo lokuguga kunye novavanyo olupheleleyo lokusebenza kufuneka lwenziwe kwi-chiller nganye egqityiweyo.
