Yog vim li cas koj CO2 Laser System xav tau ib tug kws tshaj lij Chiller: Qhov kawg Guide
2025-02-21
Lub luag haujlwm tseem ceeb ntawm CO2 Laser Chillers nyob rau hauv Modern Applications
CO2 lasers tau dav siv hauv kev lag luam xws li txiav, kos duab, kho kom zoo nkauj, thiab ntau dua vim lawv lub zog siab thiab lub zog wavelength. Txawm li cas los xij, cov raj laser tsim hluav taws xob tseem ceeb thaum lub sijhawm ua haujlwm, uas tuaj yeem ua rau qhov kub thiab txias ntawm ± 5 ° C lossis ntau dua. Yog tsis muaj kev ua kom txias, qhov no tuaj yeem ua rau:
1. Lub zog tsis ruaj khov: Kev tswj tsis tau qhov kub thiab txias hloov pauv txo cov photon emission sib xws, degrading txiav / engraving raug
2. Accelerated Component Degradation: Optics thiab laser raj muaj 68% kev laus sai dua ntawm qhov kub thiab txias (Optical Engineering Journal, 2022)
3. Unplanned Downtime: Txhua 1 ° C overshoot dhau qhov kev pom zoo ua rau muaj kev pheej hmoo tsis ua haujlwm los ntawm 15% (Industrial Laser Solutions)
Ib tus kws tshaj lij CO2 laser chiller siv lub voj kaw kaw qhov ntsuas kub (nrog qhov tseeb ntawm ± 0.1 ~ 1 ° C) kom tswj tau lub raj laser kub hauv qhov kev ua haujlwm zoo (feem ntau 20 ~ 25 ° C), kom ntseeg tau tias lub zog siab tshaj plaws ntawm kev hloov pauv.
Lub Chiller ua haujlwm li cas hauv CO2 Laser Equipment?
Txoj Cai Txias: Lub CO2 laser chiller lub tub yees system txias cov dej, uas yog ces pumped rau hauv CO2 laser khoom. Lub coolant absorbs cua sov thiab sov ua ntej rov qab mus rau lub chiller kom txias dua thiab recirculated rov qab mus rau hauv lub system.
Internal Refrigeration Cycle: Lub CO2 laser chiller lub tub yees lub tub yees ua haujlwm los ntawm kev ua kom txias los ntawm cov evaporator, qhov twg nws nqus cua sov los ntawm cov dej rov qab, evaporating rau hauv chav. Tom qab ntawd lub compressor rho tawm cov chav, compresses nws, thiab xa cov high-temperature, high-pressure chav rau lub condenser. Nyob rau hauv lub condenser, cua sov yog dissipated los ntawm ib tug kiv cua, ua rau lub chav rau condense rau hauv ib tug high-pressure kua. Tom qab dhau los ntawm kev nthuav dav valve, cov kua refrigerant nkag mus rau hauv lub evaporator, qhov twg nws evaporates dua, absorbing ntau cua sov. Cov txheej txheem no rov ua dua, thiab cov neeg siv tuaj yeem saib xyuas lossis kho cov dej kub uas siv lub ntsuas kub.

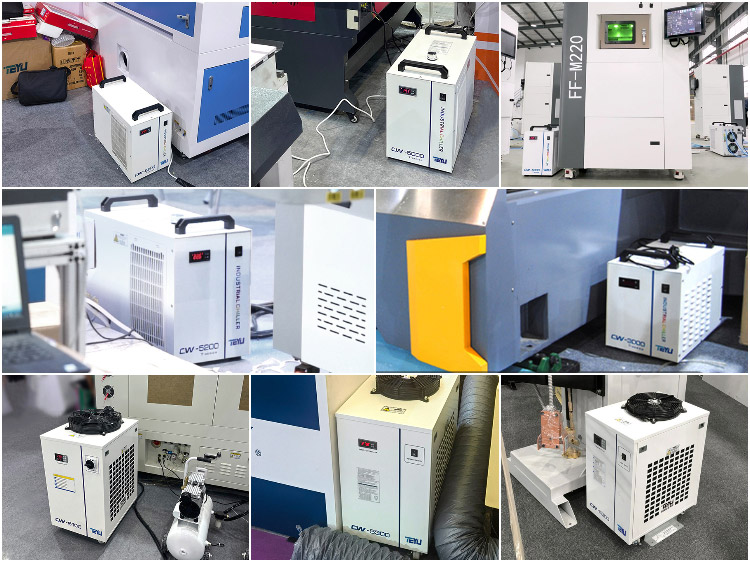

TEYU CO2 Laser Chillers : 3 Kev sib tw zoo
1. Kev Lag Luam-Leading Expertise
Nrog 23 xyoo ntawm kev tshwj xeeb, TEYU S&A yog lub npe thoob ntiaj teb ntseeg siab hauv CO2 laser txias. Peb cov khoom lag luam ob hom (TEYU thiab S&A) muab cov chillers txhim khu kev qha, ua haujlwm siab, txo qis kev pheej hmoo rau cov neeg siv tsis yog tshwj xeeb
2. Dual-Mode Temperature Control
- Hom ntse: Tsis siv neeg tswj dej 2 ° C hauv qab ambient kub, tiv thaiv condensation puas nyob rau hauv iav laser raj
- Qhov kub thiab txias hom: Manually teem qhov kub thiab txias (piv txwv li, 20 ° C) rau semiconductor lossis high-power systems
Ob hom kev ua kom muaj kev ua haujlwm yooj yim thiab yooj yim ntawm kev siv, txhawb kev tsim khoom
3. Compact & Energy-Efficient Design
Optimized tivthaiv layouts txo spatial hneev taw thaum maximizing txias efficiency. Cov khoom qib hwm thiab txuag hluav taws xob engineering txiav cov nqi ua haujlwm ntev txog li 30%.
Xaiv txoj cai CO2 Laser Chiller: Phau Ntawv Qhia Txog Tswv Yim
| Parameter | Txoj kev suav | Kev xav tau piv txwv |
| Lub peev xwm txias | Laser Lub Zog (kW) × 1.2 Kev Nyab Xeeb Kev Nyab Xeeb | 1 kW × 1.2 = 1.2 kW |
| Tus nqi ntws | Laser Spec × 1.5 | 5L / min × 1.5 = 7.5L / min |
| Temp Range | Laser Requirement +2 ° C Tsis | 15-30 ° C adjustable |
TEYU Cooling Solution tsom teeb:
| Chiller Qauv | Chiller nta | Daim ntawv thov Chiller |
| CWJ Chiller3000 | Radiating muaj peev xwm: 50W/℃ | @＜80W CO2 DC Laser |
| CWJ Chiller5000 | 0.75kW Txias Cap., ± 0.3 ℃ Precision | @≤120W CO2 DC Laser |
| CWJ Chiller5200 | 1.43kW Txias Cap., ± 0.3 ℃ Precision | @≤150W CO2 DC Laser |
| CWJ Chiller5300 | 2.4kW Txias Cap., ± 0.5 ℃ Precision | @≤200W DC CO2 Laser |
| CWJ Chiller6000 | 3.14kW Txias Cap., ± 0.5 ℃ Precision | @≤300W CO2 DC Laser |
| CWJ Chiller6100 | 4kW Txias Cap., ± 0.5 ℃ Precision | @≤400W CO2 DC Laser |
| CWJ Chiller6200 | 5.1kW Txias Cap., ± 0.5 ℃ Precision | @≤600W CO2 DC Laser |
| CWJ Chiller6260 | 9kW Txias Cap., ± 0.5 ℃ Precision | @≤400W CO2 RF Laser |
| CWJ Chiller6500 | 15kW Txias Cap., ± 1 ℃ Precision | @≤500W CO2 RF Laser |
Cov Dab Neeg Zoo Ntiaj Teb: Pov Thawj ROI
Case 1: German Automotive Supplier
Qhov teeb meem: Feem ntau cov chiller tsis ua haujlwm ua rau 8 teev / hli downtime.
Kev daws: Hloov kho rau TEYU CW-7500 industrial chiller.
Qhov tshwm sim: 19% OEE txhim kho, ROI hauv 8 lub hlis.
Case 2: Brazilian Laser Equipment Distributor
Qhov teeb meem: Cov nqi tsis ua hauj lwm siab nrog cov chiller yav dhau los.
Kev daws: Hloov mus rau TEYU ua tus khub OEM.
Qhov tshwm sim: 92% tsawg dua kev tsis txaus siab, 20% kev muag khoom loj hlob.
Optimize koj CO2 Laser Performance Hnub no
TEYU CO2 laser chillers ua ke nrog kev ua haujlwm zoo, kev ua haujlwm yooj yim, thiab lub zog ua haujlwm los tiv thaiv cov tshuab laser tseem ceeb thoob plaws kev lag luam. Rov qab los ntawm kaum xyoo ntawm R&D thiab kev lees paub thoob ntiaj teb cov neeg siv khoom, peb cov kev daws teeb meem xa cov kev ntseeg siab tsis sib haum thiab ROI sai.
Txhim kho koj qhov kev ua tau zoo laser - Koom tes nrog TEYU rau cov kev daws teeb meem txias txias.
