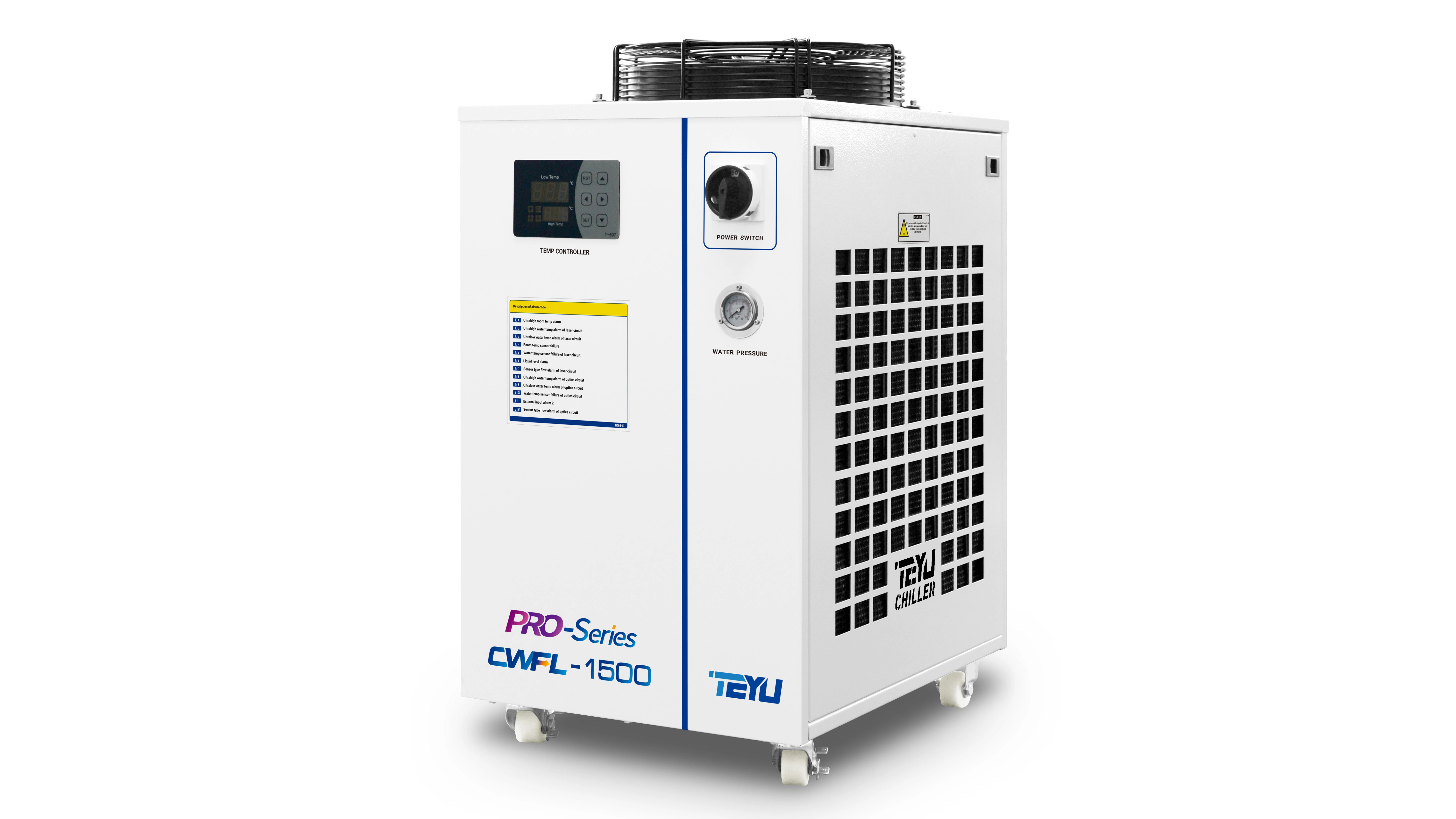

Industrial Chiller CWFL-1500 for 1500W Metal Laser Welding Cutting Machine

Industrial Chiller CWFL-1500 for 1500W Metal Laser Welding Cutting Machine

Industrial chiller CWFL-1500 is made specifically by TEYU Chiller Manufacturer for cooling 1500W metal laser welding and cutting machines. It features dual circuit design, and each of the cooling circuits is independently controlled - one cools the fiber laser and the other cools the optics. Providing active cooling featuring ±0.5℃ stability to keep your fiber laser equipment at very precise temperature control 24/7.

Metal machining water chiller CWFL-1500 comes with air cooled finned condenser, fixed-speed compressor and highly reliable evaporator to ensure optimal cooling performance. The disassembly of the side dust-proof filter for the periodic cleaning operations is easy with fastening system interlocking. Intelligent digital control panel to easily check the temperature and built-in fault code at any time. Four caster wheels offer easy mobility and unmatched flexibility.

Inquiry

Write a Review

Product Introduction

Model: CWFL-1500

Machine Size: 70 X 47 X 89cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-1500ANPTY	CWFL-1500BNPTY
Voltage	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60Hz
Current	3.4~20.3A	3.9~15.8A
Max. power consumption	3.58kW	3.39kW
Heater power	0.55kW+0.6kW
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37kW	0.75kW
Tank capacity	14L
Inlet and outlet	Rp1/2"+Rp1/2"
Max. pump pressure	4.4bar	5.3bar
Rated flow	2L/min + >15L/min
N.W.	68Kg
G.W.	80Kg
Dimension	70 X 47 X 89cm (L X W X H)
Package dimension	73 X 57 X 105cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* User-friendly controller interface

* Integrated alarm functions

* Back mounted fill port and visual water level

* Optimized for high performance at low temperatures

* Ready for immediate use

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

TEYU CWFL-1500 Laser Chiller Temperature Controller T-607

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

TEYU Metal Laser Chiller CWFL-1500 Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

TEYU CWFL-1500 Laser Chiller Caster wheels

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-1500 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
