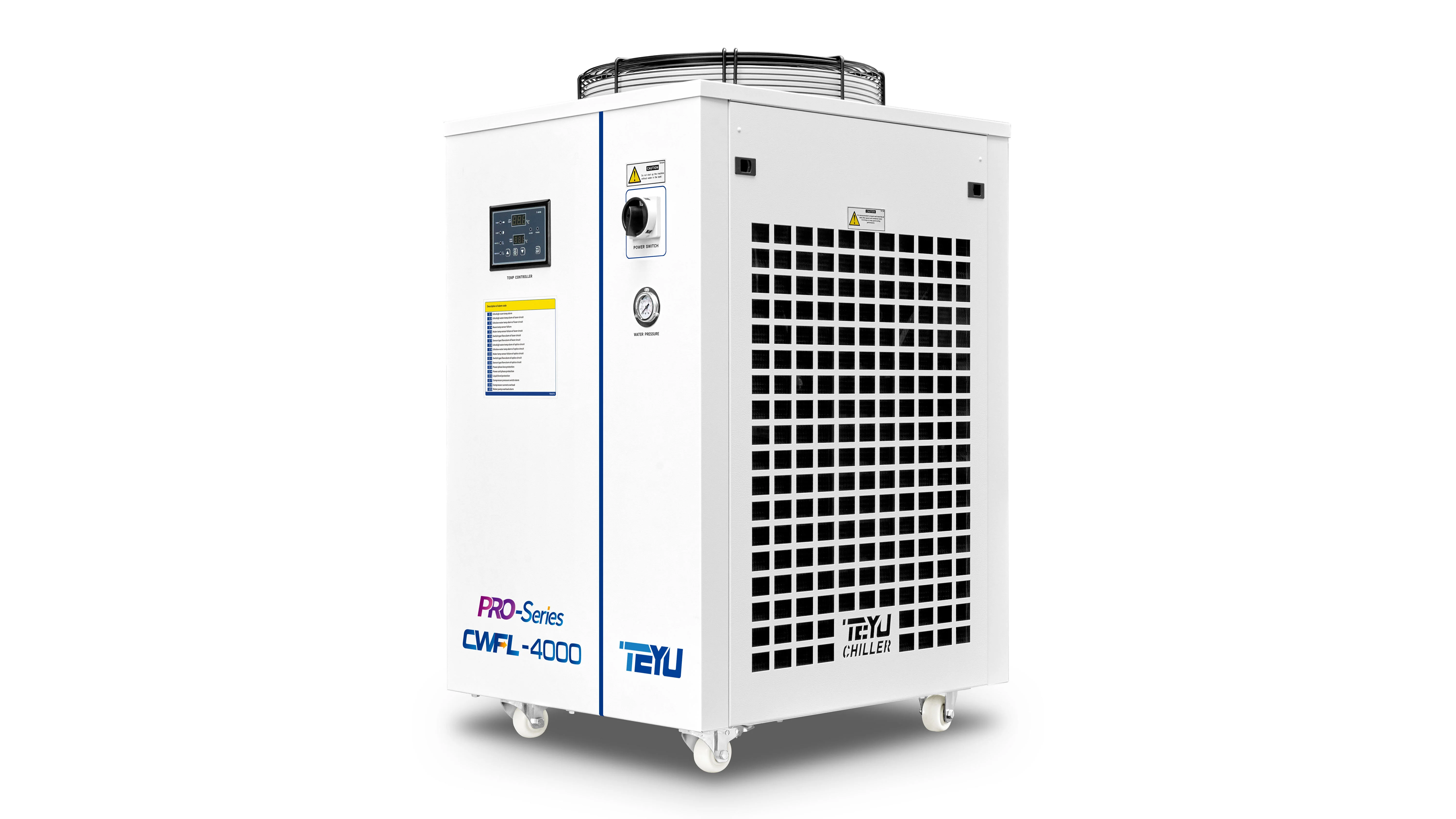

TEYU Chiller Manufacturer Specially Designed Industrial Chiller CWFL-4000 for 4kW Fiber Laser

TEYU Chiller Manufacturer Specially Designed Industrial Chiller CWFL-4000 for 4kW Fiber Laser

TEYU industrial chiller CWFL-4000 is designed by TEYU chiller manufacturer to maintain the peak performance of fiber laser welding or cutting machines up to 4kW by delivering highly efficient cooling to its fiber laser and the optics. You may wonder how ONE chiller can cool TWO different parts. Well, that is because fiber laser chiller CWFL-4000 features a dual channel design, saving a lot of cost and installation space for fiber laser users.

Laser water chiller CWFL-4000 uses components that conform to CE, RoHS and REACH standards. It even supports Modbus-485 communication protocol so that communication with the laser system becomes reality. With integrated alarms, this laser water cooler can protect your fiber laser machines in a long run. TEYU chiller manufacturer also provides a 2-year long-term warranty for all TEYU industrial chillers, professional sales team and tech support team to provide excellent pre-sales and after-sales services.

Inquiry

Write a Review

Product Introduction

Industrial Refrigeration System CWFL-4000 for 4KW Fiber Laser

Model: CWFL-4000

Machine Size: 87 X 65 X 117cm (LX W XH)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-4000BNPTY	CWFL-4000ENPTY
Voltage	AC 1P 220-240V	AC 3P 380V
Frequency	60Hz	50Hz
Current	3.6~33.7A	2.1~16.9A
Max. power consumption	7.7kW	7.61kW
Heater power	1kW+1.8kW
Precision	±1℃
Reducer	Capillary
Pump power	1kW	1.1kW
Tank capacity	40L
Inlet and outlet	Rp1/2"+Rp1"
Max. pump pressure	5.9bar	6.15bar
Rated flow	2L/min +>40L/min
N.W.	123Kg	135Kg
G.W.	150Kg	154Kg
Dimension	87 X 65 X 117cm (LX W XH)
Package dimension	95 X 77 X 135cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V or 220V

Optional Items

Heater

Filter

Product Details

TEYU CWFL-4000 Laser Chiller Temperature Controller T-803A

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

TEYU CWFL-4000 Laser Chiller Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

TEYU CWFL-4000 Laser Chiller Caster wheels

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Industrial Water Chiller CWFL-4000 Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-4000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
