Air cooled laser chiller CWFL-20000 for 20KW fiber laser

S&A Teyu air cooled laser chiller CWFL-20000 features a dual circuit configuration and is applicable to cool fiber laser up to 20KW.

Item NO.:
CWFL-20000
Product Origin:
Guangzhou,China
Shipping Port:
Guangzhou,China
Precision:
±1℃
Voltage:
380V
Frequency:
50/60Hz
Refrigerant:
R-410a
Reducer:
thermostatic expansion valve
Pump power:
0.75KW+3KW
N.W:
720Kgs
G.W:
846Kgs
Dimension:
200*100*206(L*W*H)
Package dimension:
213*122*228(L*W*H)

2025-01-09

Product Description

S&A Teyu air cooled laser chiller CWFL-20000 features a dual circuit configuration and is applicable to cool fiber laser up to 20KW.

The CWFL series water chillers are so multi-functional that the fiber laser and the laser head can be cooled by the low temperature control system and the high temperature control system respectively at the same time, which can greatly reduce the generation of the condensed water and save cost & space.

S&A Teyu industrial chillers are applicable to cool fiber lasers from IPG, nLIGHT,Trumpf,Rofin,Coherent and SPI and provide effective cooling for laser cutting machines, laser welding machines and laser marking machines.

Features

1. With environmental refrigerant;

2. ±1℃ precise temperature control;

3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4. Dual temperature to satisfy different needs of fiber laser and the laser head;

5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;

6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

7. Multiple power specifications; CE approval; RoHS approval; REACH approval;

8. Optional heater and water filter.

9. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

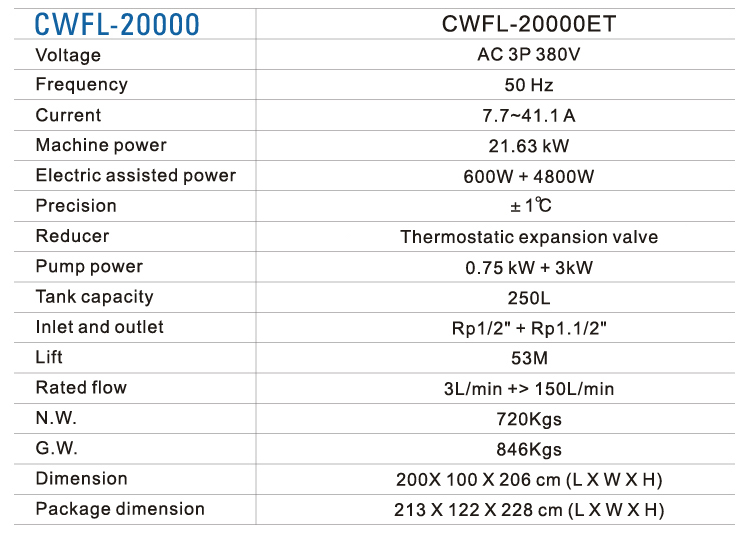

Specification

parameter

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal, evaporator and condenser

Adopt IPG fiber laser for welding and cutting sheet metal.

High precision temperature control system with dual temperature control function

Temperature control accuracy can reach ±1℃. High temp. for laser head and low temp. for fiber laser

Multiple alarm protection

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

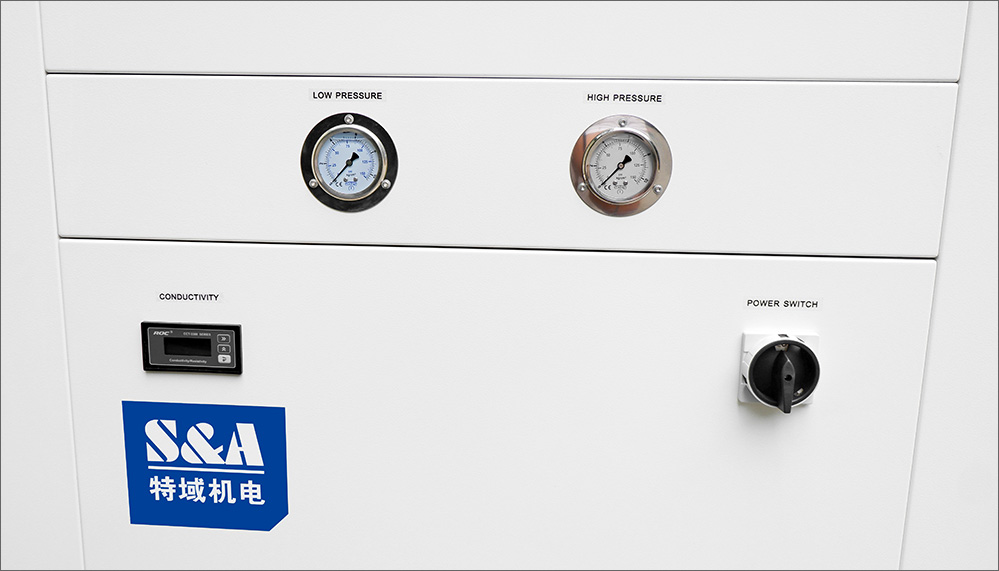

Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

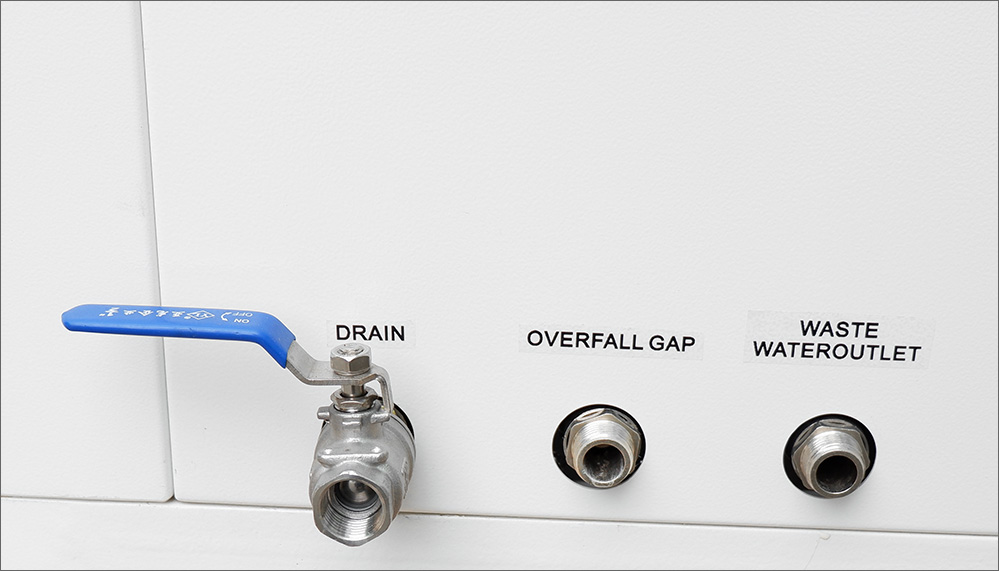

drain outlet

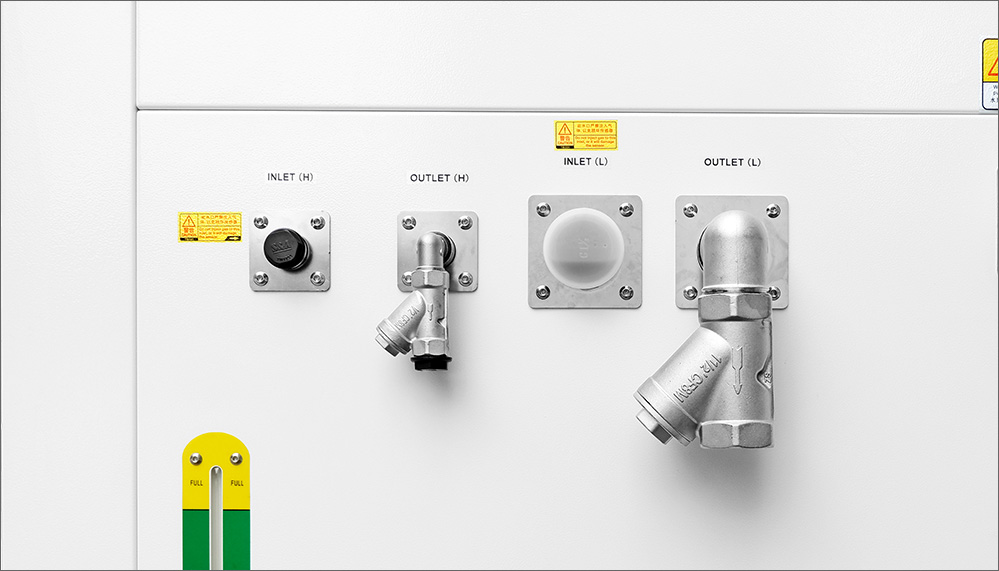

Dual inlet and dual outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

water inlet & outlet

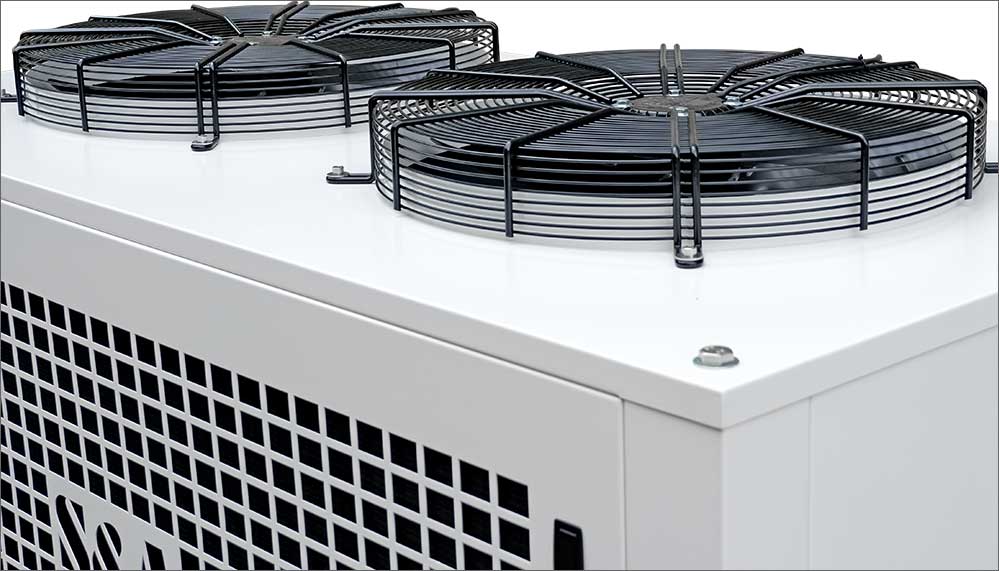

Cooling fan of famous brand installed.

With high quality and low failure rate.

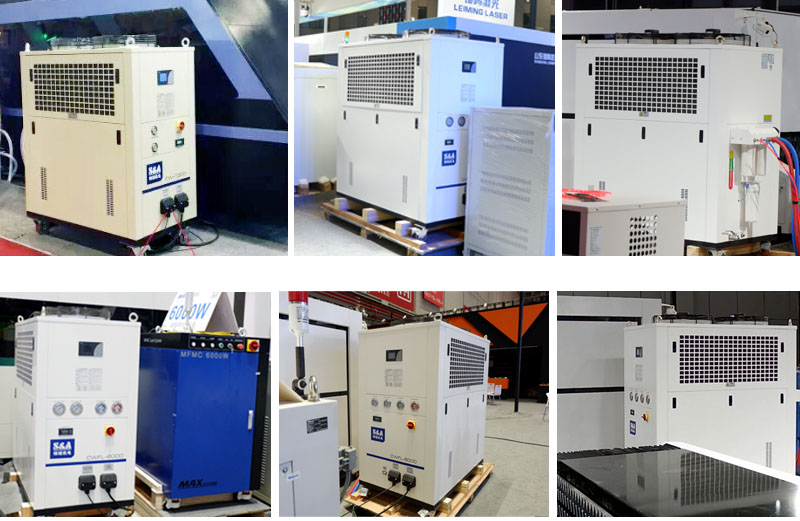

CHILLER APPLICATION

water CHILLER APPLICATION

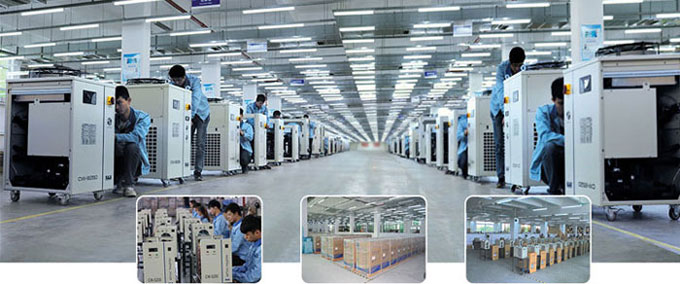

WAREHOUSE

18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop

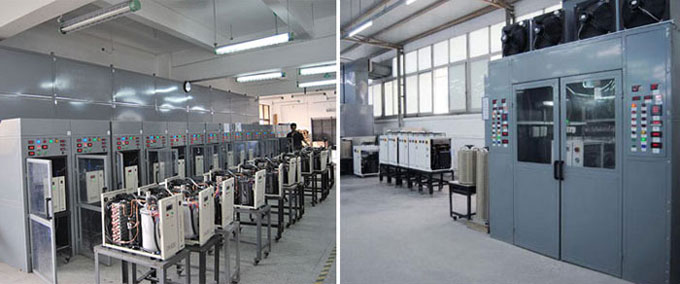

TEST SYSTEM

With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM
