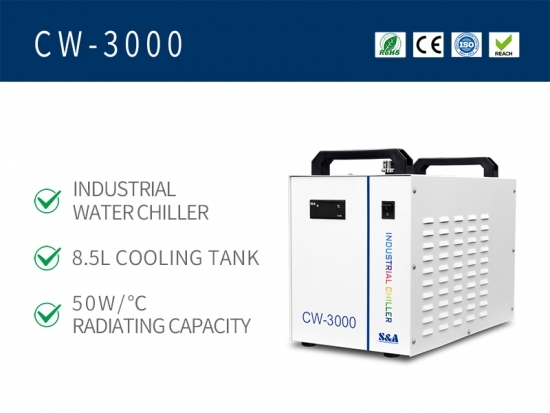

air cooled water chillers CW-3000 110V 200V 50Hz 60HZ

Air cooled water chiller CW-3000 can chill water to the ambient temperature effectively. It is suitable for small power device such as low power CO2 laser glass tube, K-40 laser cutter, hobby laser engraver, CNC router spindle and more.

Radiating capacity is 50W/℃, indicating that this recirculating water chiller can radiate 50W of heat every time water temperature rises by 1℃.

CW-3000 industrial chiller can extend the lifespan of your process application. This passive cooling chiller features low failure rate, ease of use, small size and comes with a 8.5L water tank. High speed fans are installed inside the chiller to ensure the high performance, but please note that water temperature can NOT be regulated.

The warranty period is 2 years.

 Features

1. Radiating capacity: 50W / °C;
2. Energy saving, long working life, ease of use and small size, easy to fit into space limited configuration;
3. Built-in water flow alarm and ultrahigh water temperature alarm;
4. Multiple power specifications. CE ,ISO, RoHS and REACH approval;
5. Digital display that keeps you informed of the water temperature or alarms if happen

Note:

1.The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

2.Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3.Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4.Location of the chiller should be well ventilated environment and away from heat source. Please keep at least 50cm from the obstacles to the air outlet which is on the back of the chiller and leave at least 30cm between obstacles and air inlets which are on the side casings of the chiller.

  PRODUCT INTRODUCTION

  Digital display that keeps you informed of the water temperature or alarms if happen

Ease of water filling.

Inlet and outlet connector equipped. Multiple alarm protections.

High speed fan of famous brand installed.

Easy water draining

  Connection diagram between water chiller and laser machine

Alarm description

CW-3000 industrial chiller is designed with built-in alarm functions.

E0 - water flow alarm input
E1 - ultrahigh water temperature
HH - short circuit of water temperature sensor
LL  - water temperature sensor open circuit

 Identify authentic S&A Teyu chiller

  More than 3,000 manufacturers choosing S&A Teyu

  The reasons of quality guarantee of S&A Teyu chiller

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu.
