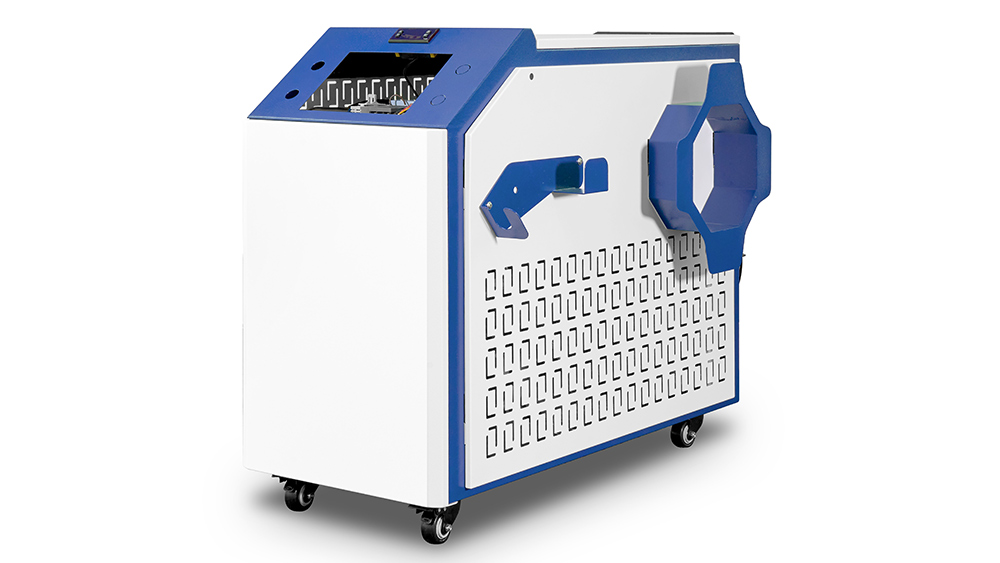

Are you seeking a mini and portable water chiller for your new handheld laser welding project? Then TEYU CWFL-1500ANW08 all-in-one handheld laser welding chiller may be the ideal solution. Specifically designed for 1.5kW handheld laser welding and cleaning machines, this compact water chiller features a revolutionary reduction in size and weight, stable and precision temperature control, and a sleek integrated design, customizable to suit your style. It ensures efficient, convenient, and safe handheld laser welding.
TEYU all-in-one chiller machine CWFL-1500ANW08 boasts dual cooling circuits to simultaneously cool both the fiber laser and laser gun. It also has an intelligent digital control panel to display the temperature and multiple built-in alarm protection, while four caster wheels offer easy mobility and unmatched flexibility. With excellent workmanship, efficient cooling, easy installation and maintenance, CWFL-1500ANW08 is the ideal chiller machine for your 1500W handheld laser welding/cleaning machine.
Model: CWFL-1500ANW08
Machine Size: 66x30x70cm (L X W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CWFL-1500ANW08TY |
| Voltage | AC 1P 220-240V |
| Frequency | 50Hz |
| Current | 0.9~8.94A |
Max. power consumption | 1.31kW |
Compressor power | 1.1kW |
| 1.47HP | |
| Refrigerant | R-410a |
| Precision | ±1℃ |
| Reducer | Capillary |
| Tank capacity | 8L |
| Inlet and outlet | Φ6+Φ12 Fast connector |
| Pump power | 0.13kW |
Max. pump pressure | 40M |
Rated flow | 1L/min+＞12L/min |
| N.W. | 48Kg |
| G.W. | 56Kg |
| Dimension | 66x30x70cm(L x W x H) |
| Package dimension | 75x38x79cm(L x W x H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* All-in-one design
* Lightweight
* Movable
* Space-saving
* Easy to carry
* User-friendly
* Applicable to various application scenarios
(Note: fiber laser is not included in the package)
Heater
US standard plug / EN standard plug
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.
Easy-to-read water level indicator
The water level indicator has 3 color area - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

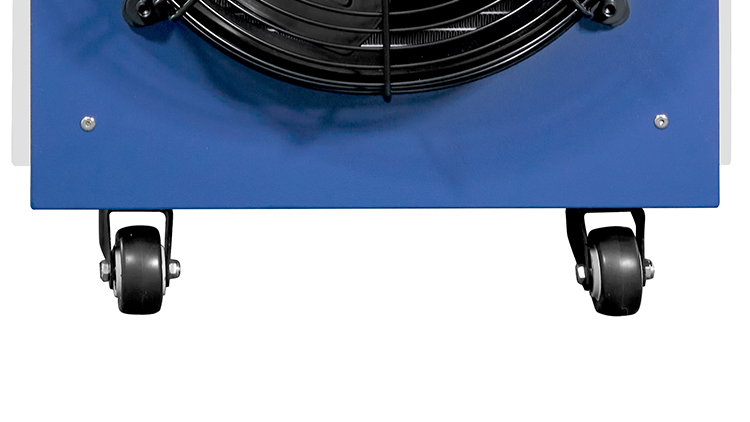

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
