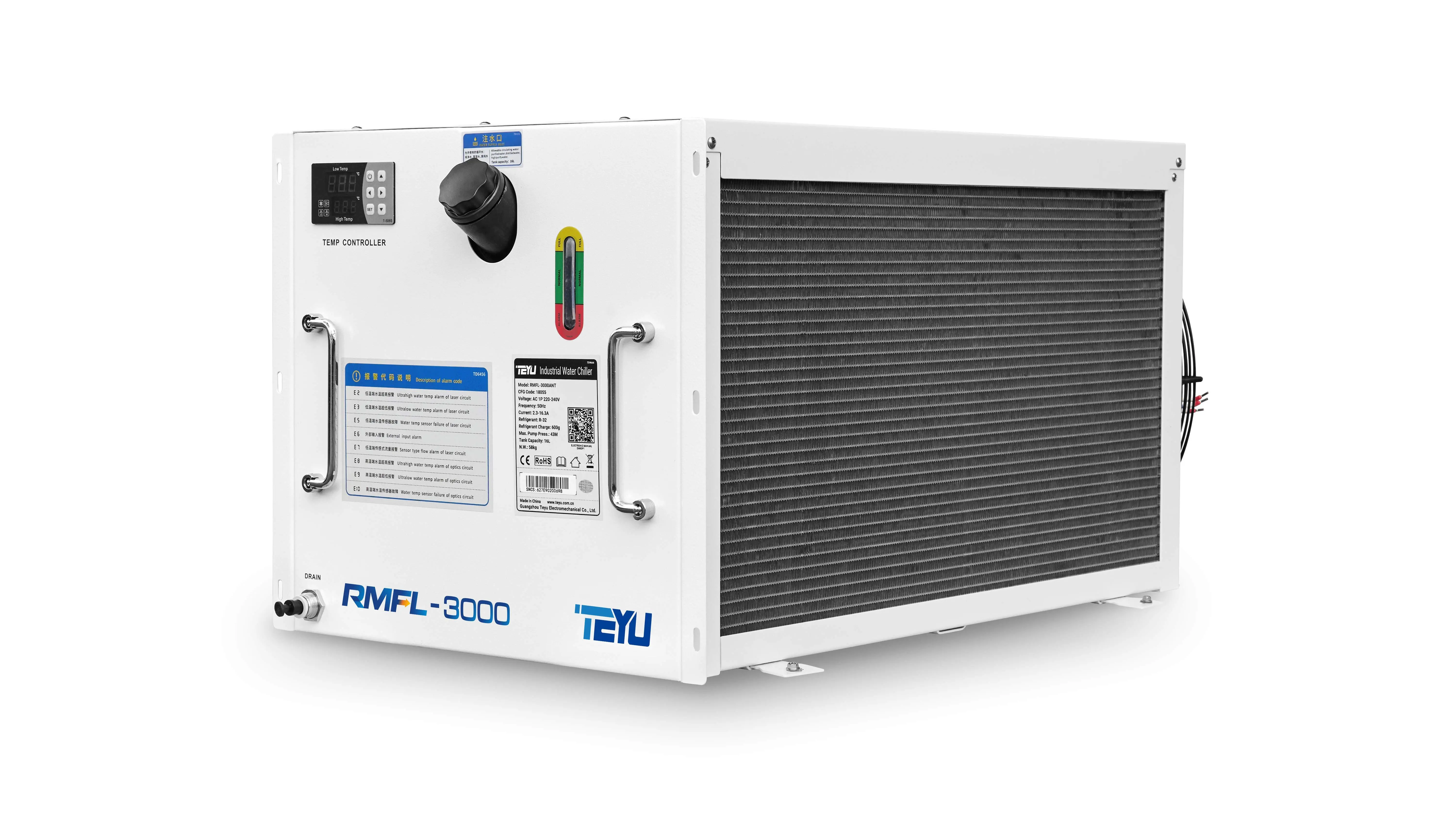

Rack Mount Water Chiller Unit RMFL-3000 for 3000W Handheld Laser Metal Processing Machine

Rack Mount Water Chiller Unit RMFL-3000 for 3000W Handheld Laser Metal Processing Machine

Rack mount water chiller RMFL-3000 is specially designed by TEYU industrial chiller manufacturer for cooling 3kW handheld laser welding/cutting/cleaning machine and is mountable in a 19-inch rack. Because of the rack mount design, this compact air cooled chiller allows the stacking of related devices, indicating a high level of flexibility and mobility. It features a temperature stability of ±0.5°C.

Rack mount industrial chiller RMFL-3000 boasts dual cooling circuits that can simultaneously cool both the fiber laser and the optics/laser gun. A built-in visual water level indicator ensures the safety of the water pump (to prevent dry running). With premium compressor, evaporator, water pump, and sheet metal, this laser chiller is robust and durable. Excellent workmanship, efficient cooling, space-saving design, easy installation and maintenance enables RMFL-3000 take your metal processing projects to the next level!

Inquiry

Write a Review

Product Introduction

Handheld Laser Welder Cutter Cleaner Rack Mount Chiller RMFL-3000

Model: RMFL-3000

Machine Size: 88 X 48 X 43cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	RMFL-3000ANTTY	RMFL-3000BNTTY
Voltage	AC 1P 220-240V	AC 1P 220~240V
Frequency	50Hz	60Hz
Current	2.3~16.3A	2.3~18.9A
Max. power consumption	3.54kW	4.23kW
Compressor power	1.7kW	2.31kW
Compressor power	2.27HP	3.1HP
Refrigerant	R-32/R-410A	R-410A
Precision	±0.5℃
Reducer	Capillary
Pump power	0.48kW
Tank capacity	16L
Inlet and outlet	Rp1/2”+Rp1/2”
Max. pump pressure	4.3bar
Rated flow	2L/min+＞25L/min
N.W.	58Kg
G.W.	70Kg
Dimension	88 X 48 X 43cm (L X W X H)
Package dimension	99 X 58 X 61cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Rack mount design

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C~35°C

* Refrigerant: R-32/R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Front mounted water fill port and drain port

* Integrated front handles

* High level of flexibility and mobility

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Rack Mount Water Chiller RMFL-3000 Temperature Controller T-801E

Dual temperature control

Intelligent temperature controller. Controlling the temperature of the fiber laser and optics at the same time.

Front mounted water fill port and drain port

The water fill port and drain port are mounted in the front for easy water filling and draining.

TEYU RMFL-3000 Laser Chiller Integrated Handles

Integrated front handles

The front-mounted handles help move the chiller very easily.

Certificate

Product Working Principle

TEYU Rack Mount Laser Chiller RMFL-3000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
