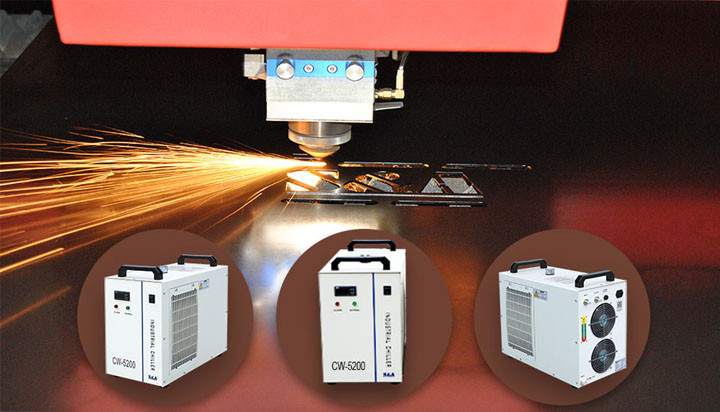

CNC Cutting Systems water chiller SA brand

S&A CW-5200 water chiller is suitable to cool CNC Cutting Systems. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃.
  • Item NO.:

    CW-5200
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    1400W
  • Precision:

    ±0.3°C
  • Voltage:

    110/220V
  • Frequency:

    50/60Hz
  • Refrigerant:

    R-22/R-410a
  • Reducer:

    capillary
  • Pump power:

    0.03KW/0.05KW/0.1KW
  • Tank capacity:

    6L
  • Max.pump lift:

    10M/12M/25M
  • Max.pump flow:

    10L/min, 13L/min, 16L/min
  • N.W:

    26Kgs
  • G.W:

    29Kgs
  • Dimension:

    58*29*47(L*W*H)
  • Package dimension:

    70*43*68(L*W*H)
Inquiry now

S&A CW-5200 water chiller is suitable to cool CNC Cutting Systems. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control.


S&A CNC industrial water  chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.

S&A water chiller covers 50% of market share of the CO2 laser refrigeration industry with annual sales amount of 30,000 units. After 16-year development, S&A has become a well-known and popular brand in laser cooling industry.


THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.




  CNC spindle chillers features

1. 1400W cooling capacity; use environmental refrigerant;

chiller performance curve

2. Compact size, long working life and simple operation;
3. ±0.3°C precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;  with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;

7. Optional heater and water filter.

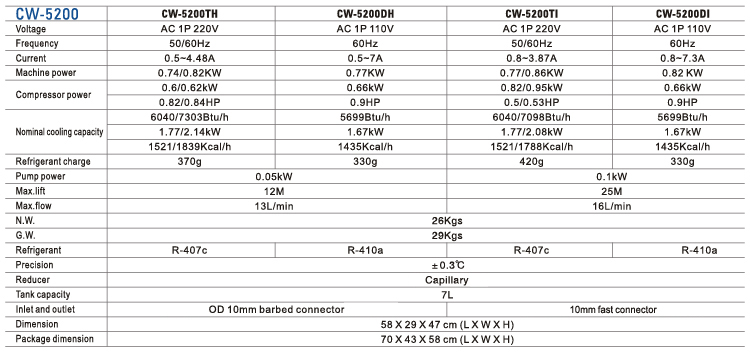

  CNC recirculation water chillers specification


One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.



 Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona.


  CONTOUR AND PARTS INTRODUCTION

water chiller CONTOUR AND PARTS


Independent production of sheet metal,evaporator and condenser

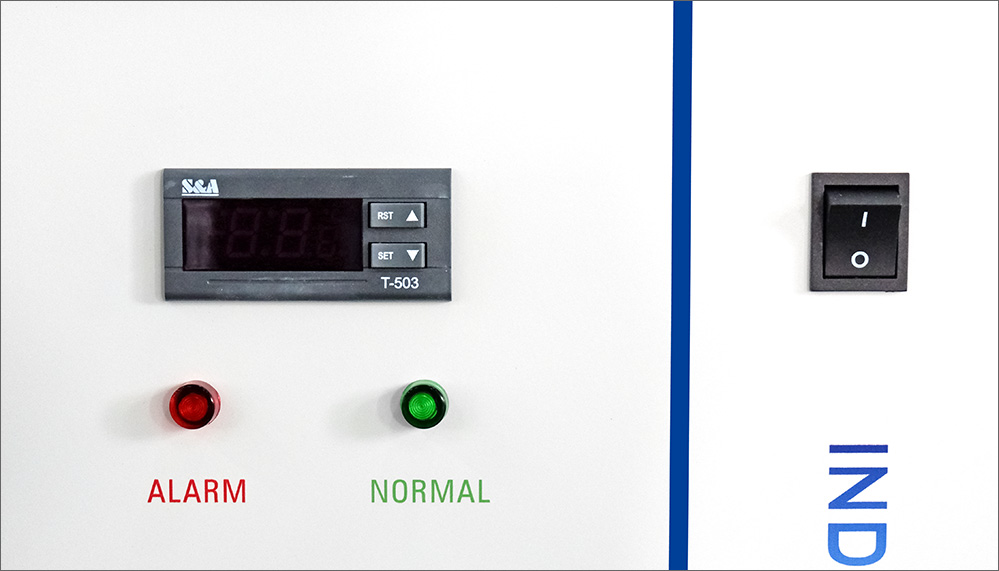

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.
 IPG fiber laser cutting metal of chiller

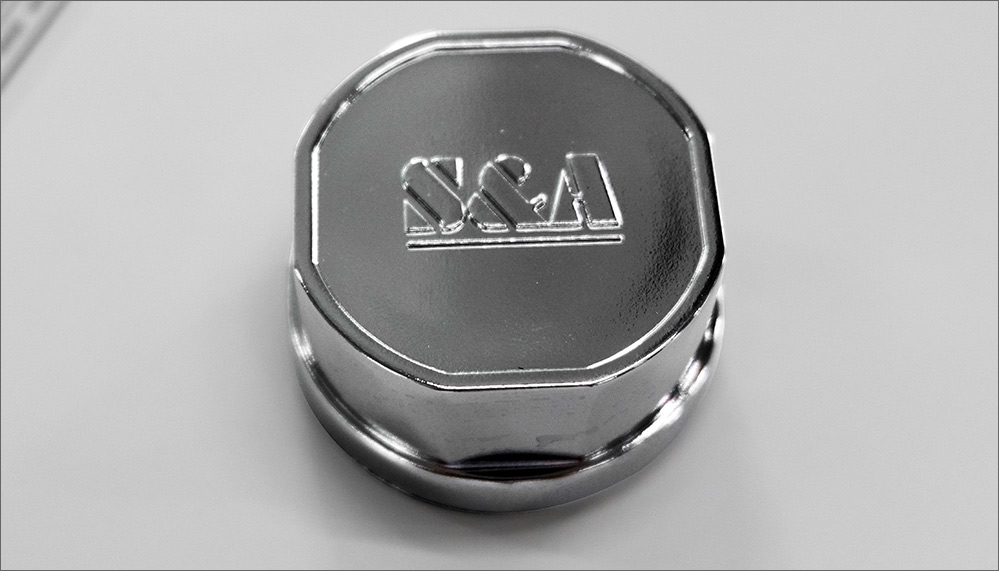

Ease  of  moving  and  water  filling

The firm handle can help move the water chillers easily.
chillers easy moving

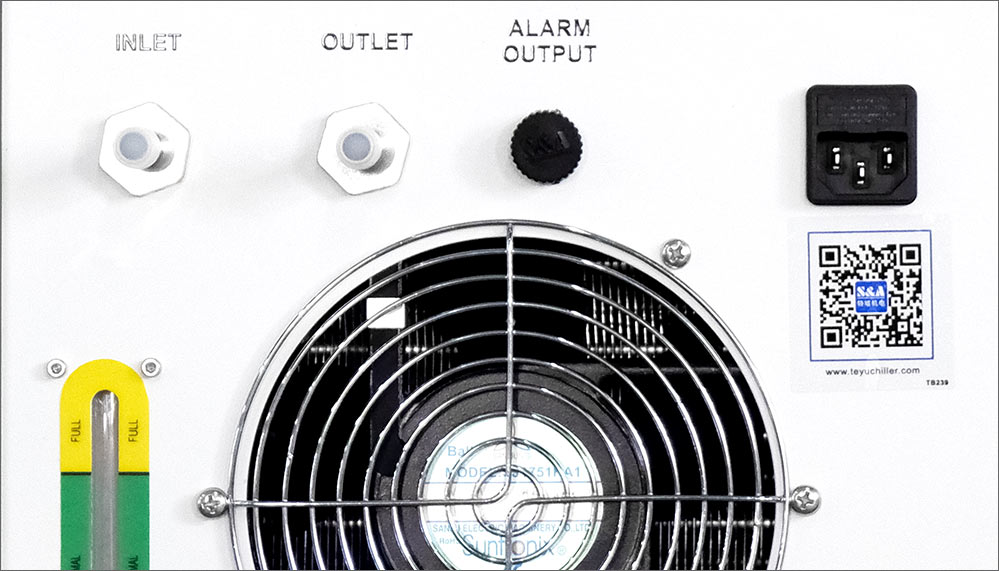

Inlet  and  outlet  connector  equipped

Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

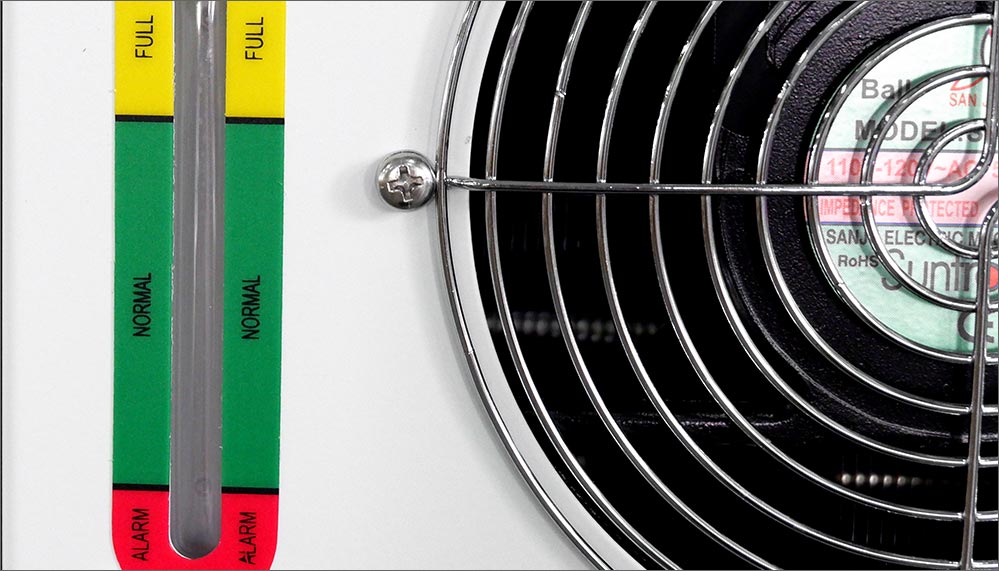

Cooling fan of famous brand installed.

Level gauge equipped.
Adopt SAN JU cooling fan with high quality and low failure rate.
 chillers CW 5000 fan


Customized dust gauze available and easy to take apart.

chiller dust gauze





  Identify Teyu(S&A) authentic chiller


All of S&A water chillers are certified with design patent. Counterfeiting is not allowed.
Please recognize S&A logo when you purchase S&A water chillers.
Components carry “S&A” brand logo. It is an important identification distinguishing from counterfeit machine.
S&A water chillers logo


  More than 3,000 manufacturers choosing Teyu (S&A)

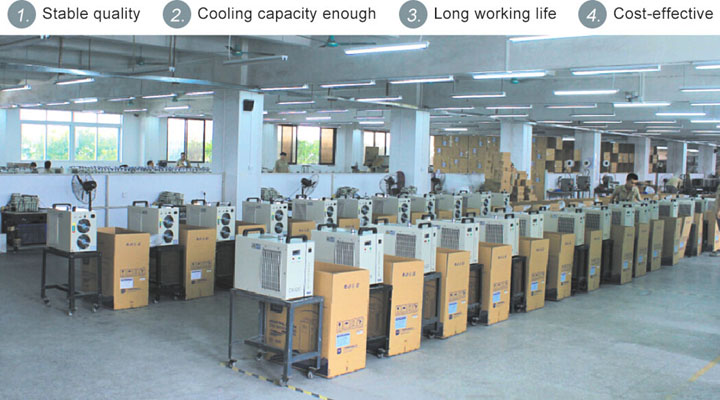

chiller workshop


  The reasons of quality guarantee of Teyu (S&A) chiller

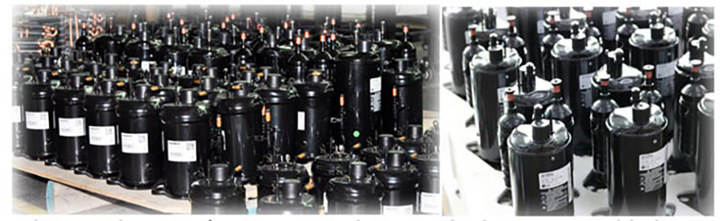

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.
water chiller compressor

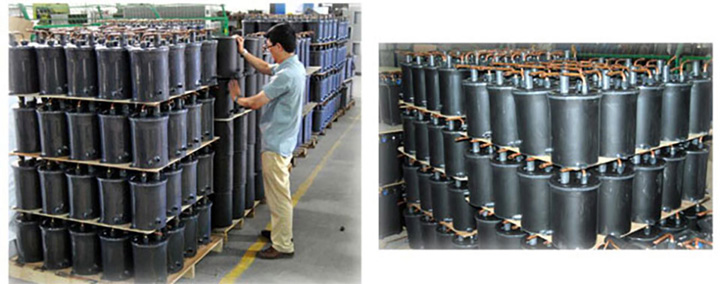

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

water chiller evaporator

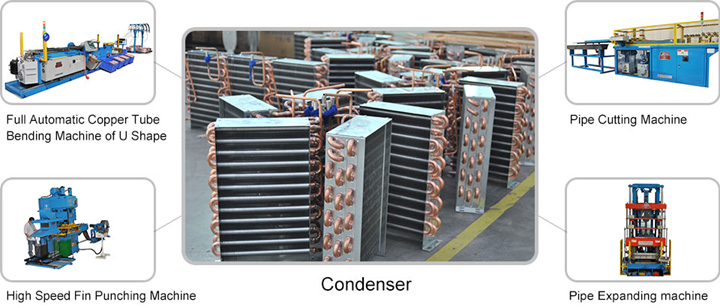

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

chiller condenser


Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A

S&A chiller

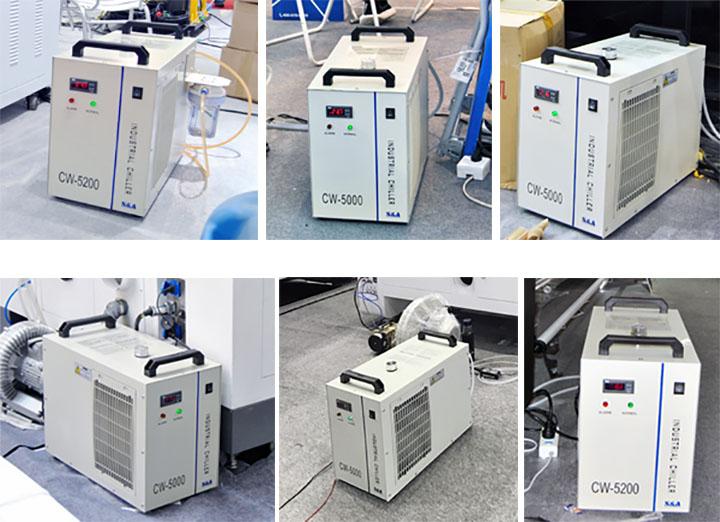

Small Portable Chiller CW-5200

How to adjust the water temperature for T-503 intelligent mode of chiller


S&A cw5200 industrial water chillers application

  CHILLER APPLICATION



Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Why us
  • Technology Leader Technology Leader
    Provide systematic products and customized service Products diversification and wide applications More than 90 chiller models to choose More than 120 chiller models available for customization Applicable to over 100 manufacturing and processing industries Cooling capacity ranging from 0.6kW to 30 kW Technology Advantage a. With 16 years development, gradually grow as the industry standard builder and quality guarantee. b. ±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication, which can realize the commnucation between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers, constant temperature and intelligent temperature control modes. c. With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller. Product Advantage a. With 11 patent certificates and won Quality integrity Level A certificate; b. ISO 9001, CE, RoHS and REACH environmental certificated. c. Conforms to air transport requirements, energy saving and environment friendly. d. Offer customized service to fulfill various demands of customer. e. Independent production of sheet metal, evaporator and condenser,minmize risks of water and refrigerant leakage and improve quality.
  • Production Advantage Production Advantage
    18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability. Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture. S&A Chiller Quality Control System Purchasing Strictly control and manage supply chain Ensure that each component is compliant with using standard Pre-production control Full inspection on key components Aging test on key components Production assembly process Standardized implementation on technology Assemble the chillers in strict accordance with specific regulated manufacturing procedures. Before delivery Overall performance testing Aging test and complete performance test must be executed  on each finished chiller. Delivery Delivery on time Shorten the overall response cycle of customer's supply chain Customer service 2 years warranty Lifetime maintaince and repair 24/7 hotline service with quick response
  • S&A chiller sales network S&A chiller sales network
    THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.  S&A has established service points in Russia, Australia, Czech, Singapore, Korea and Taiwan.
