CO2 Laser Cooling System CW-6200 for 600W CO2 Laser Glass Tube

CO2 Laser Cooling System CW-6200 for 600W CO2 Laser Glass Tube

CO2 laser cooling system CW-6200 has been the ideal choice for 600W CO2 laser glass tube or 200W radio frequency CO2 laser source. It is available in 220V 50HZ or 60HZ. Temperature control accuracy is up to ±0.5°C while cooling capacity reaches up to 5100W. This air cooled industrial chiller features thoughtful designs such as easy-to-read water level check, easy water filling port and intelligent temperature control panel. With low maintenance and energy consumption, CW-6200 chiller is your perfect cost-effective cooling solution that meets the CE, RoHS and REACH standards. UL certified version is also available.

Inquiry

Write a Review

Product Introduction

Model: CW-6200

Machine Size: 67X47X89cm (L X W X H)

Warranty: 2 years

Standard: UL, CE, REACH and RoHS

Product Parameters

Model	CW-6200AI	CW-6200BI	CW-6200AN	CW-6200BN
Voltage	AC 1P 220-240V	AC 1P 220-240V	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60Hz	50Hz	60Hz
Current	0.4~7.6A	0.4~11.2A	2.3~9.5A	2.1~10.1A
Max. power consumption	1.63kW	1.97kW	1.91kW	1.88kW
Compressor power	1.41kW	1.7kW	1.41kW	1.62kW
Compressor power	1.89HP	2.27HP	1.89HP	2.17HP
Nominal cooling capacity	17401Btu/h
	5.1kW
	4384Kcal/h
Pump power	0.09kW		0.37kW
Max. pump pressure	2.5bar		2.7bar
Max. pump flow	15L/min		75L/min
Refrigerant	R-410A
Precision	±0.5℃
Reducer	Capillary
Tank capacity	22L
Inlet and outlet	Rp1/2"
N.W.	58Kg	56Kg	64Kg	59Kg
G.W.	70Kg	67Kg	75Kg	70Kg
Dimension	67X47X89cm (L X W X H)
Package dimension	73X57X105cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 5100W

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* User-friendly temperature controller

* Integrated alarm functions

* Back mounted water fill port and easy-to-read water level check

* High reliability, energy efficiency and durability

* Simple setup and operation

* UL certified version is available

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

CO2 Laser Cooling System CW-6200 for 600W CO2 Laser Glass Tube 9

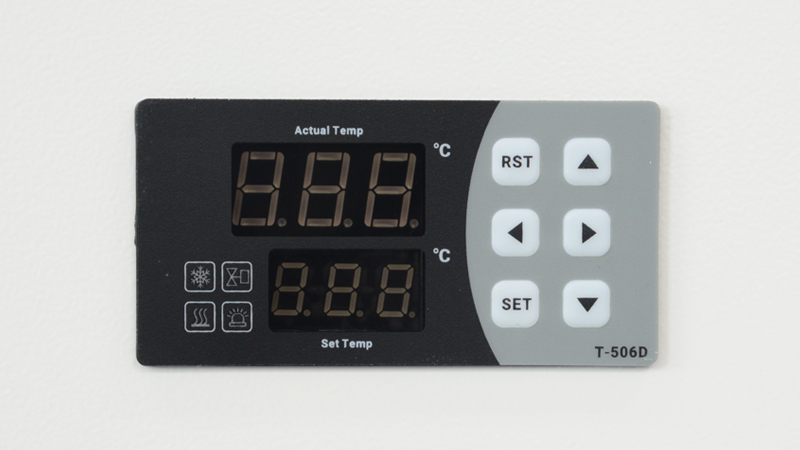

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

CO2 Laser Cooling System CW-6200 Ventilation Distance

Certificate

Product Working Principle

CO2 Laser Cooling System CW-6200 Product Working Principle

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
