Product Description

water cooling chiller

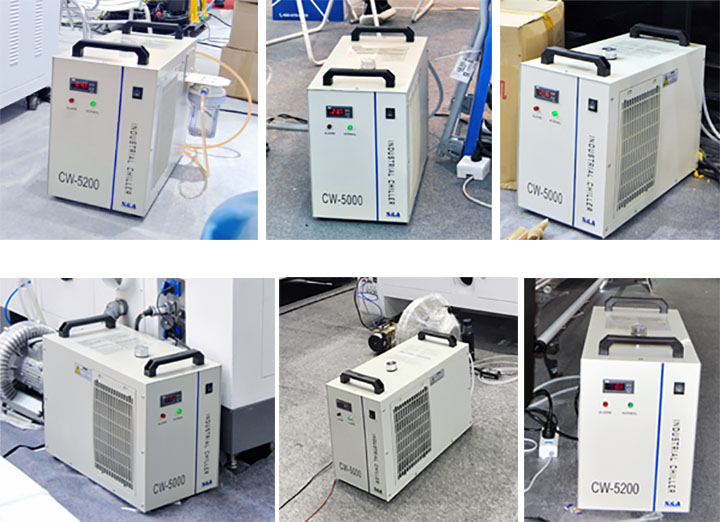

Industrial water chiller unit CW-5000 has small size, but its cooling performance can not be overlooked. It features cooling capacity of 800W and the temperature stability of ±0.3℃. Small size and excellent cooling performance makes industrial water chiller unit CW-5000 a perfect choice for CO2 laser cutting machine users who don’t have too much working space.


CW-5000 water chiller is very popular among CO2 laser cutting machine users and it is the best selling refrigeration type water chiller unit.

In addition, compact water chiller CW-5000 is charged with environmental friendly refrigerant R-134a in order to protect the environment, which shows S&A Teyu is an environmentally responsible enterprise.

To guarantee the product quality, compact water chiller CW-5000 has to go through a series of strict simulated laboratory tests and the core components such as evaporator, condenser and sheet metals are independently developed by S&A Teyu.

Industrial water chiller unit CW-5000 offers 220/110V 50/60Hz so that it has wider access to users in different countries. Besides, it has multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm so that the chiller can be well protected.




  Features

1. 800W cooling capacity; use environmental refrigerant

2. Compact size, long working life and simple operation;

3. ±0.3°C precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;  with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;
7. Optional heater and water filter.

  Specification
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
CW-5000: applied to cool CO2 laser tube;
CW-5000: applied to cool CNC spindle or welding equipment;
CW-5000 : applied to cool solid-state laser.

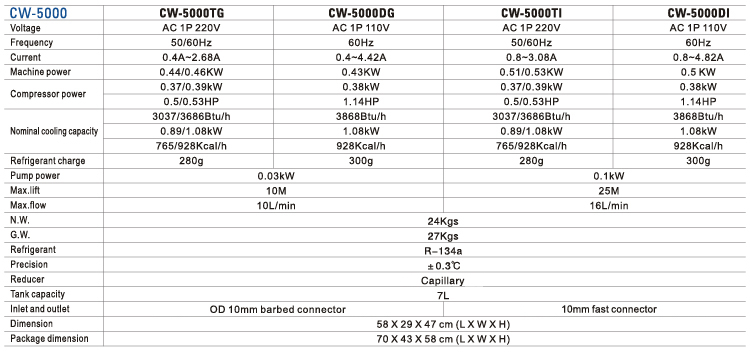

parameter

Note:

1.other electric sources can be customized; heating and higher temperature control precision functions are optional;

2.the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


PRODUCT INTRODUCTION


Independent  production  of  sheet  metal,evaporator and condenser

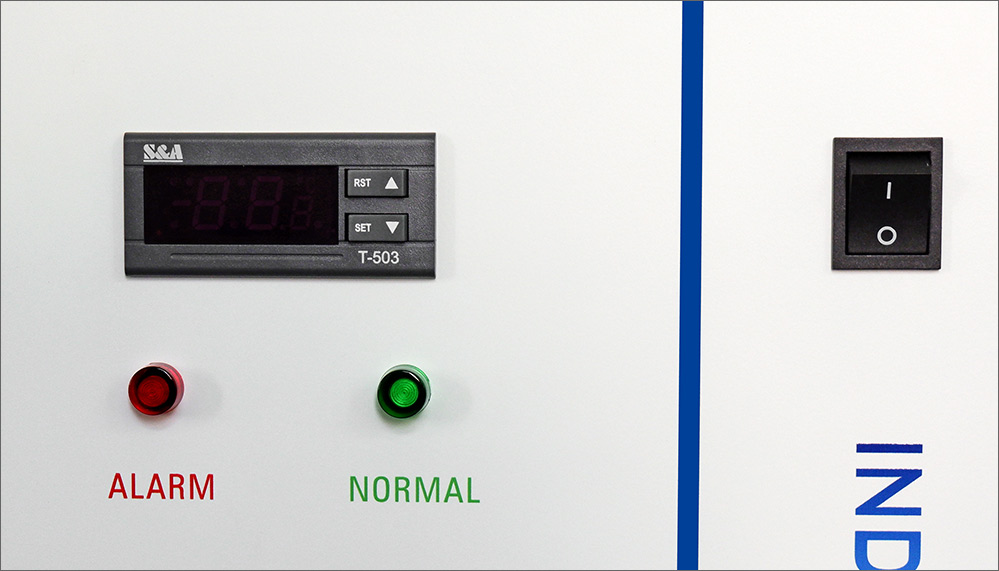

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.
temperature controller


Ease  of  moving  and  water  filling

The firm handle can help move the water chillers easily.

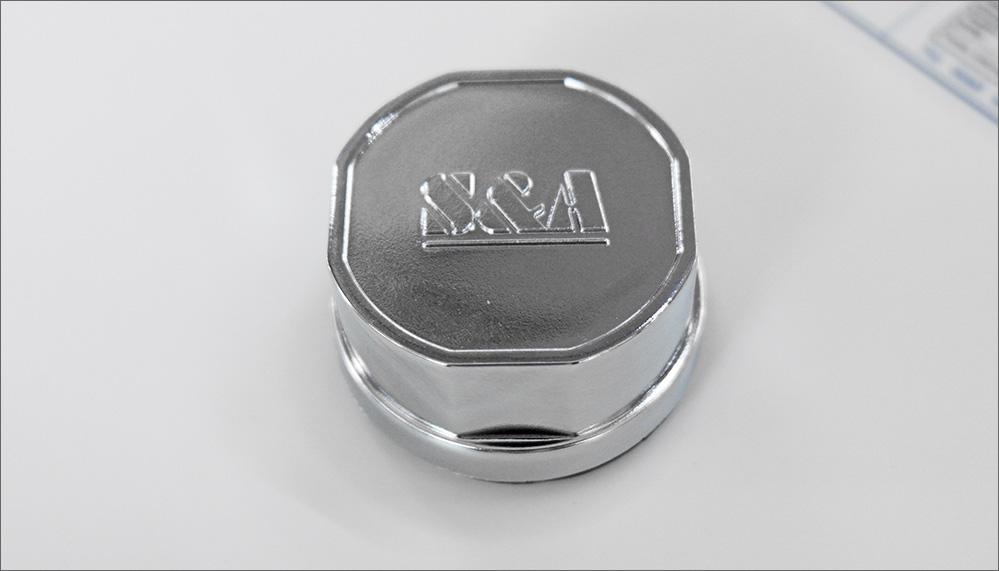

water supply inlet & firm handle


Inlet  and  outlet  connector  equippedMultiple alarm protection.

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

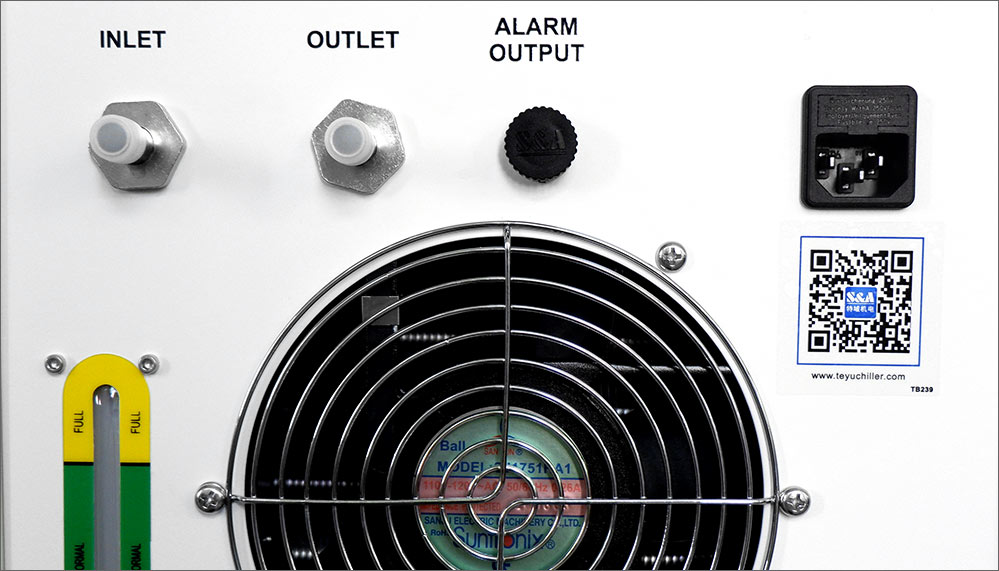

water inlet & outlet


Cooling fan of famous brand installed.

Level gauge equipped.
Cooling fan with high quality and low failure rate.

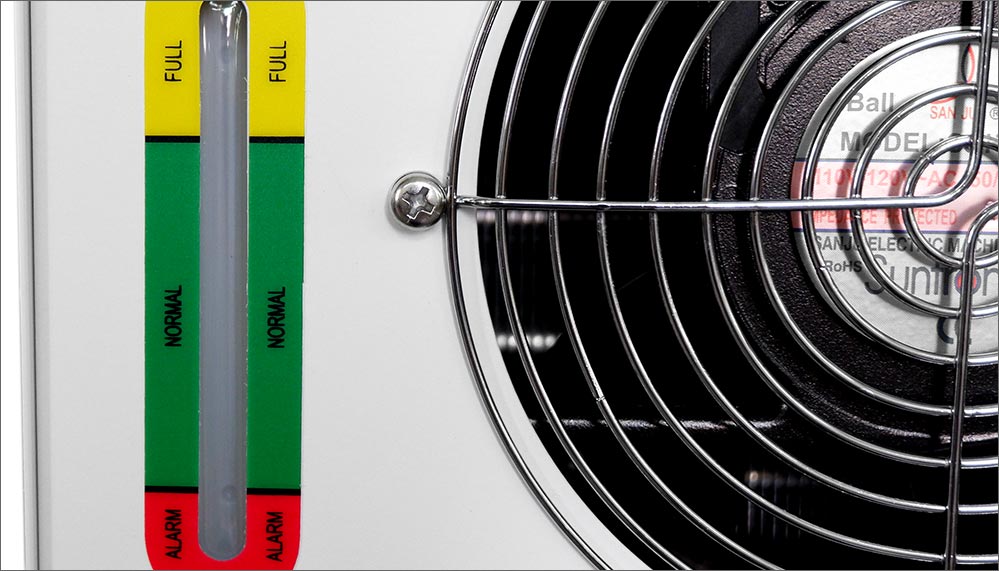

 cooling fan & water level gauge


Alarm description

CW5000 chiller is designed with built-in alarm functions.

E1 - over high room temperature
E2 - over high water temperature
E3 - over low water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure




  Identify Teyu(S&A Teyu) authentic chiller


All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.
Please recognize S&A Teyu logo when you purchase S&A Teyu water chillers.
Components carry “S&A Teyu” brand logo. It is an important identification distinguishing from counterfeit machine.
S&A Teyu water chillers logo


  More than 3,000 manufacturers choosing Teyu (S&A Teyu)

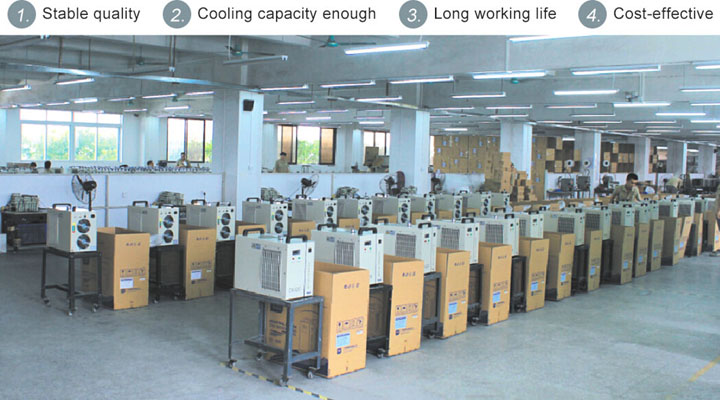

chiller workshop


  The reasons of quality guarantee of Teyu (S&A Teyu) chiller

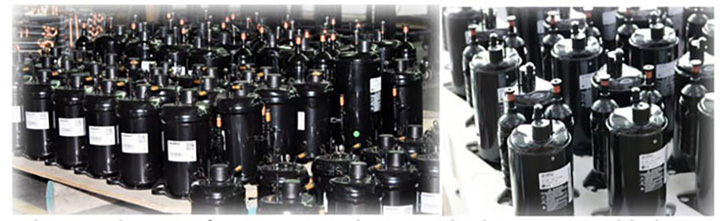

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.

water chiller compressor

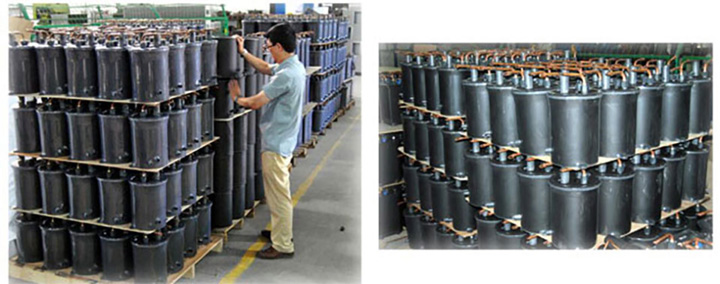

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

water chiller evaporator

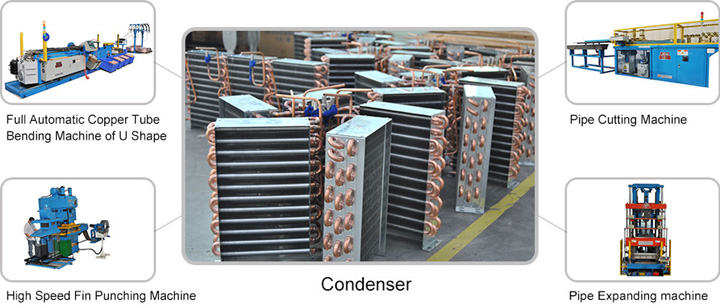

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

chiller condenser

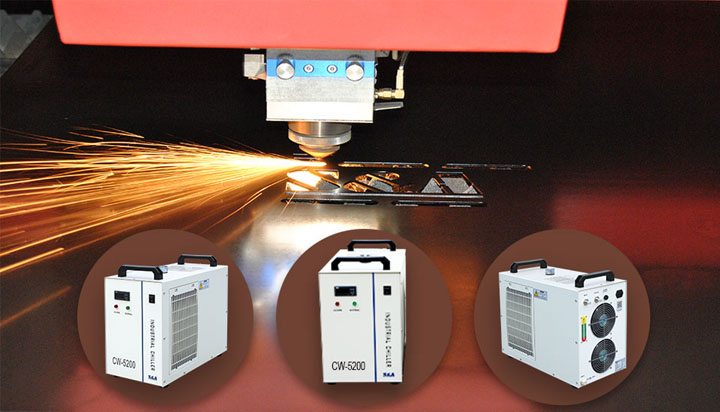

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu

S&A Teyu chiller

Video

CW-5000 WATER CHILLERS

How to adjust the water temperature for T-503 intelligent mode of chiller

CW-5000 WATER CHILLERS APPLICATION


S&A Teyu cw5000 air cooled chiller application
