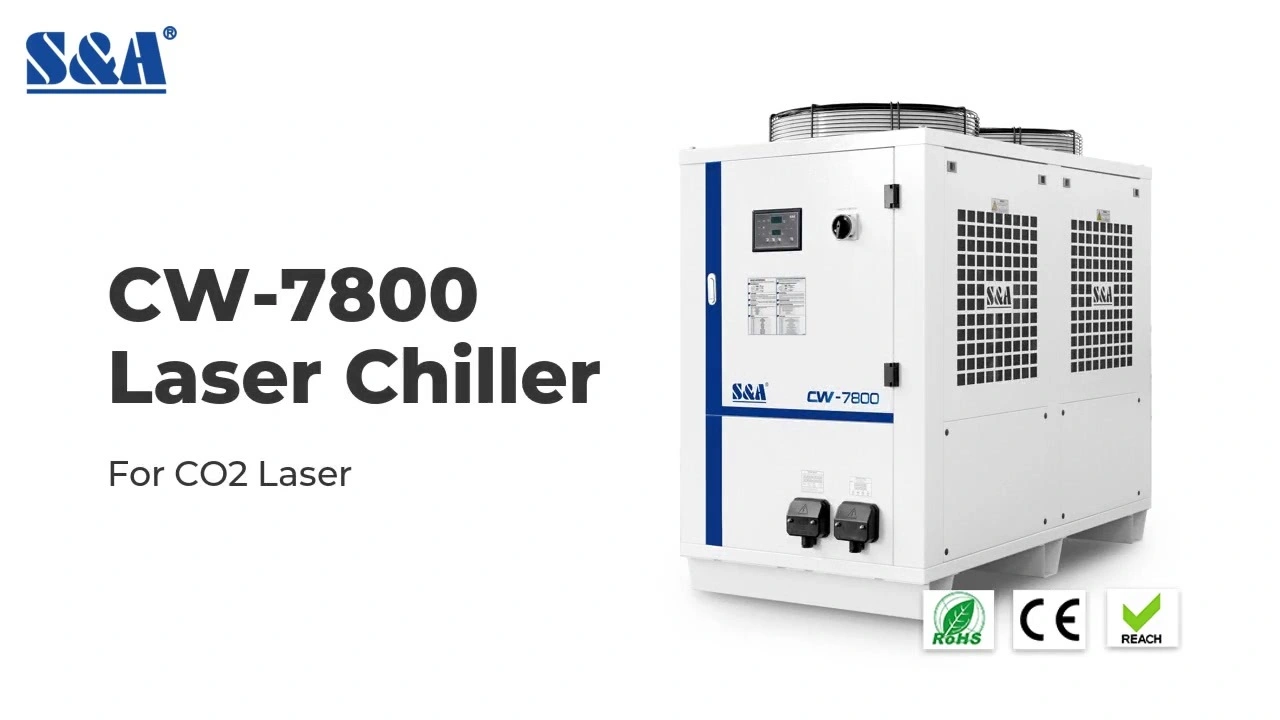

High Power Industrial Chiller System CW-7800 for CO2 Laser Cutting System

High Power Industrial Chiller System CW-7800 for CO2 Laser Cutting System

High power industrial chiller system can satisfy demanding cooling requirement for CO2 laser cutting system up to 800W. A 170L big stainless steel water tank has been specifically designed for process cooling applications. It allows high water flow rates with low pressure drops and ensures a reliable operation even in demanding applications. CW-7800 water chiller offers temperature stability of ±1℃, temperature range of the fluid from 5℃ up to 35℃, max ambient temperature up to 45℃ and the refrigeration capacity of 26000W. Water temperature can be set with an intelligent temperature controller and the water chiller system is monitored for multiple alarms. Modbus-485 communication protocol is supported to enable communication between the chiller and the laser system.

Inquiry

Write a Review

Product Introduction

Model: CW-7800

Machine Size: 155x80x135cm (L x W x H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-7800EN	CW-7800FN
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	2.1~24.5A	2.1~22.7A
Max. power consumption	14.06kW	14.2kW
Compressor power	8.26kW	8.5kW
Compressor power	11.07HP	11.39HP
Nominal cooling capacity	88712Btu/h
	26kW
	22354Kcal/h
Refrigerant	R-410A
Precision	±1℃
Reducer	Capillary
Pump power	1.1kW	1kW
Tank capacity	170L
Inlet and outlet	Rp1"
Max. pump pressure	6.15bar	5.9bar
Max. pump flow	117L/min	130L/min
N.W.	277Kg	270Kg
G.W.	317Kg	310Kg
Dimension	155x80x135cm (L x W x H)
Package dimension	170X93X152cm (L x W x H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 26kW

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* Intelligent temperature controller

* Multiple alarm functions

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V,415V or 460V

Optional Items

Heater

Filter

Product Details

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Junction Box

S&A engineers' professional design, easy and stable wiring.

Ventilation Distance

High Power Industrial Chiller System CW-7800 for CO2 Laser Cutting System

Certificate

Product Working Principle

High Power Industrial Chiller System CW-7800 for CO2 Laser Cutting System

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
