High Power Water Chiller Equipment is Suitable for Carbon Steel Fiber Laser Cutting Machine

High power water chiller equipment CWFL-4000 is refrigeration based water chiller and is widely used to cool carbon steel fiber laser cutting machine. It consists of compressor, evaporator, condenser, temperature controller and other key comonents.

  • Item NO.:

    CWFL-4000
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Precision:

    ±1℃
  • Voltage:

    220V/380V
  • Frequency:

    50/60Hz
  • Refrigerant:

    R-407C
  • Reducer:

    Capillary
  • Pump power:

    1.1KW
  • Tank capacity:

    40L
  • Inlet and outlet:

    Rp1/2+Rp1
  • N.W:

    141Kgs
  • G.W:

    160Kgs
  • Dimension:

    87*65*117(L*W*H)
  • Package dimension:

    95*84*136(L*W*H)

    oops...!

    no product data.

    Go to homepage

    Product Description

    fiber laser chiller

    High power water chiller equipment CWFL-4000 is refrigeration based water chiller and is widely used to cool carbon steel fiber laser cutting machine. It consists of compressor, evaporator, condenser, temperature controller and other key comonents. .


    S&A Teyu high power water chiller equipment CWFL-4000 offers 2-year warranty together with prompt after-sales service, so users have better using experience of our water chiller.




      High power water chiller equipment features
    1. With environmental refrigerant;
    2. ±1℃ precise temperature control;
    3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
    4. Dual temperature to satisfy different needs of fiber laser device and the optics;
    5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
    6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
    7. Multiple power specifications; CE approval; RoHS approval; REACH approval;

    8. Optional heater and water filter.

    9. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

    THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

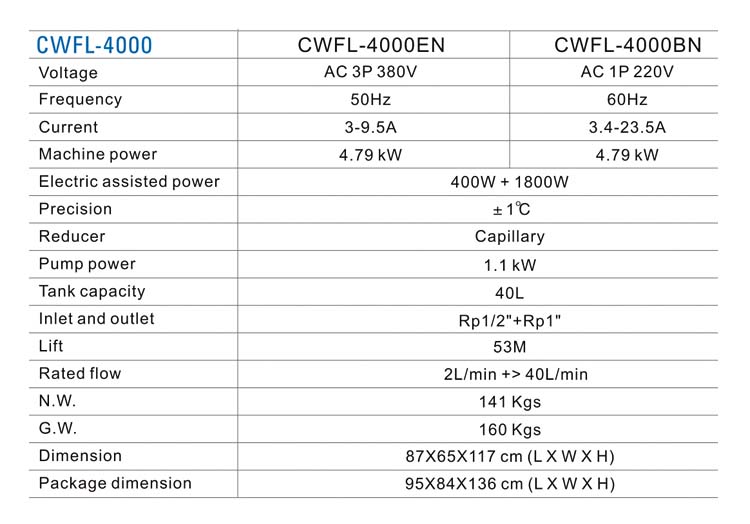

      Fiber laser air cooled water chillers specification

    High Power Water Chiller Equipment is Suitable for Carbon Steel Fiber Laser Cutting Machine 9

    Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


      PRODUCT INTRODUCTION


    Independent production of sheet metal, evaporator and condenser

    Adopt IPG fiber laser for welding and cutting sheet metal.


    High precision temperature control system with dual temperature control function

    Temperature control accuracy can reach ±1℃. High temp. for QBH connector/optics and low temp. for laser device.


    Multiple alarm protection

    The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

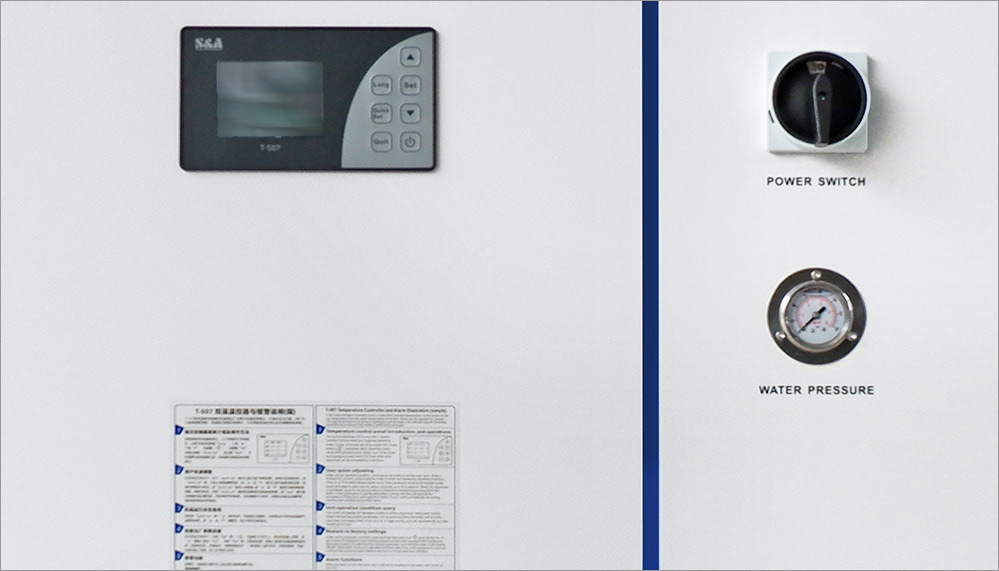

    temperature controller

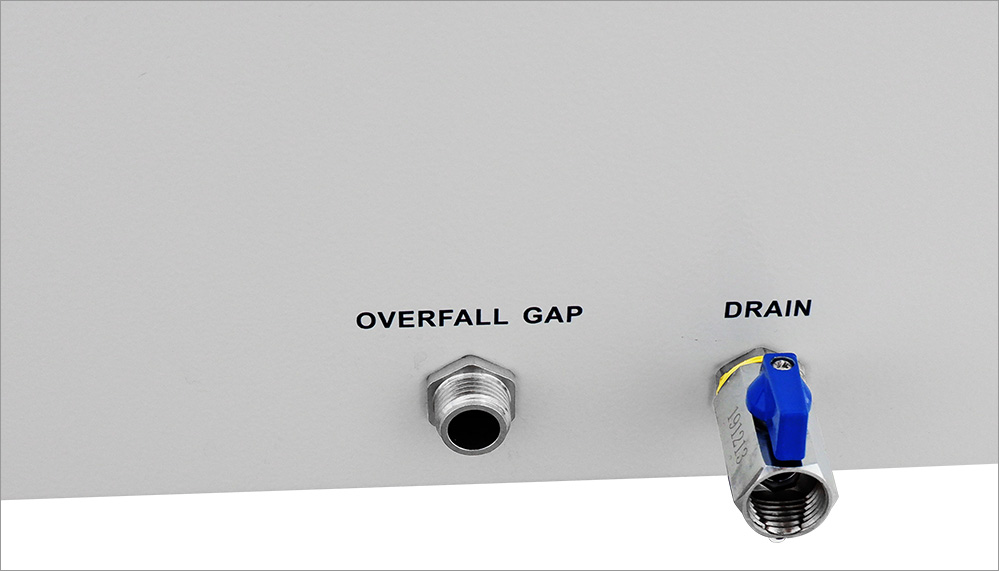

    Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

    Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

     drain outlet

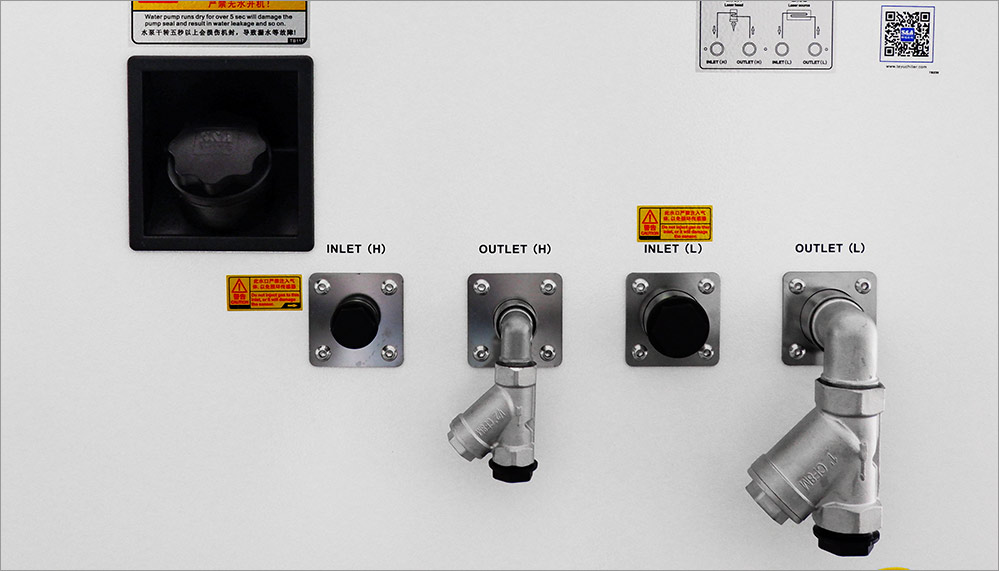

    Dual inlet and dual outlet connector equipped.

    Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

    water inlet & outlet


    Level gauge equipped

    water level gauge

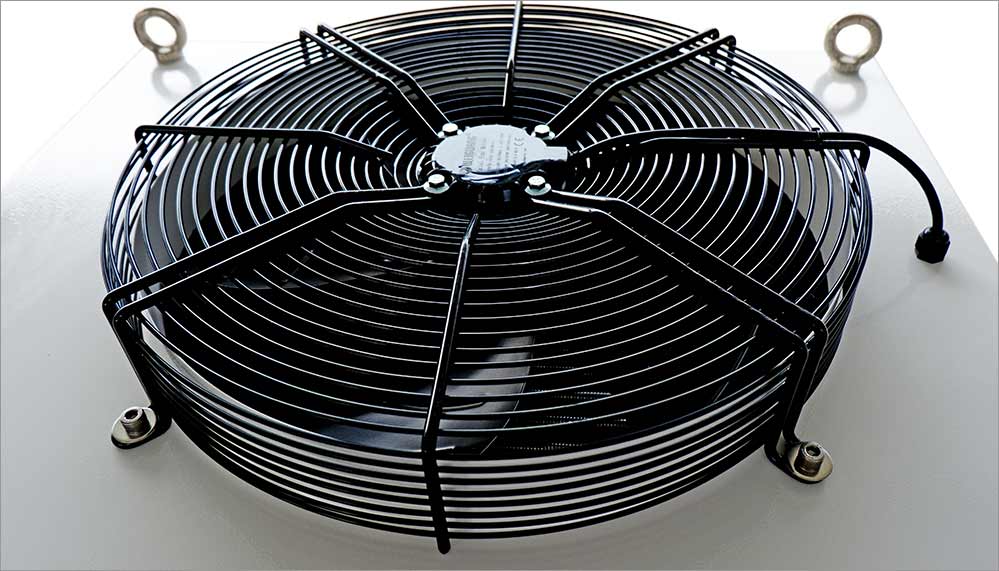

    Cooling fan of famous brand installed.

    With high quality and low failure rate.
    cooling fan


    Customized dust gauze available and easy to take apart

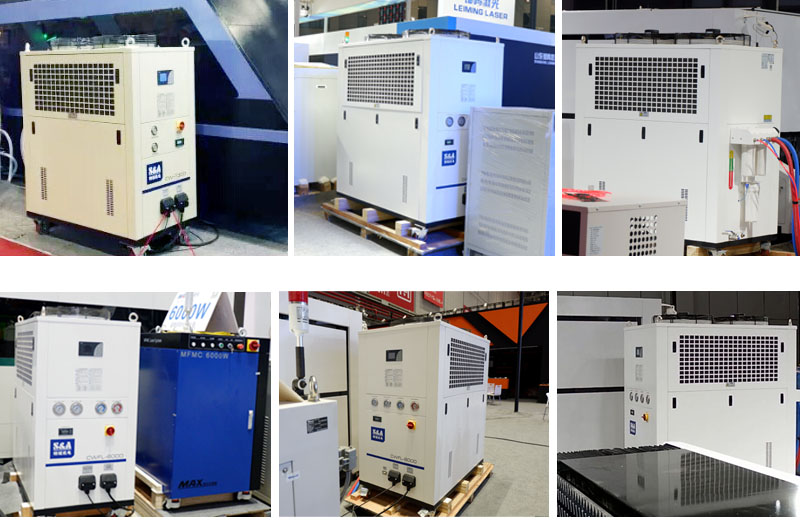

      CHILLER APPLICATION



    fiber laser CHILLER APPLICATION

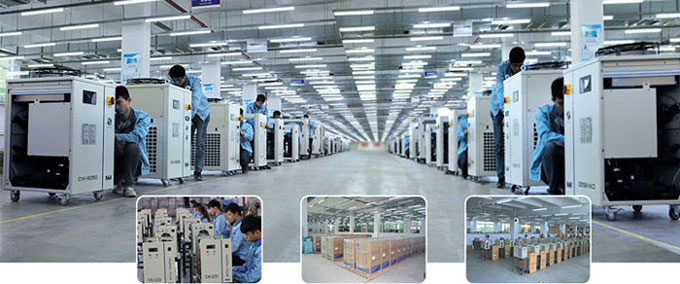

      WAREHOUSE
    18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

    Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

    air cooled water chillers workshop

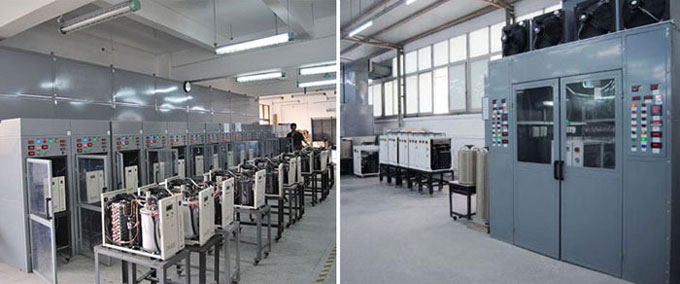

      TEST SYSTEM
    With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

    WATER CHILLER TEST SYSTEM



    Video

    S&A Teyu industrial water chiller CWFL- 4000 video

    How to set water temperature for T-507 temperature controller of dual temp chiller
