Product Description

UV LASER CHILLER

S&A Teyu high precision temperature control chiller CWUL-05 features ±0.2℃ precise temperature control, so it is very suitable for cooling PCB UV laser marking & cutting machine that requires demanding accuracy.



  High precision water chillers features
1. With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.2℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

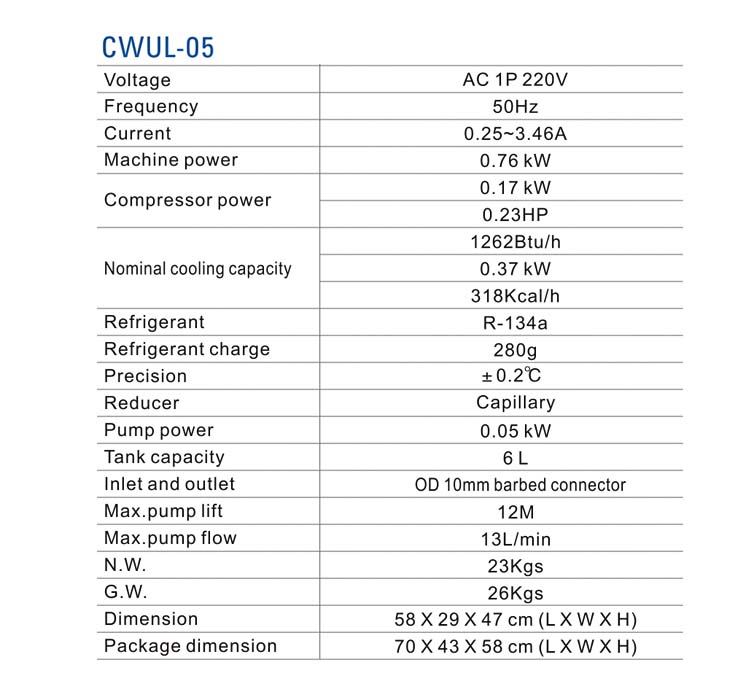

  UV water chiller units specification


Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


  PRODUCT INTRODUCTION




Independent production of sheet metal, evaporator and condenser

Adopt IPG fiber laser for welding and cutting sheet metal.

Temperature control accuracy can reach ±0.2°C.

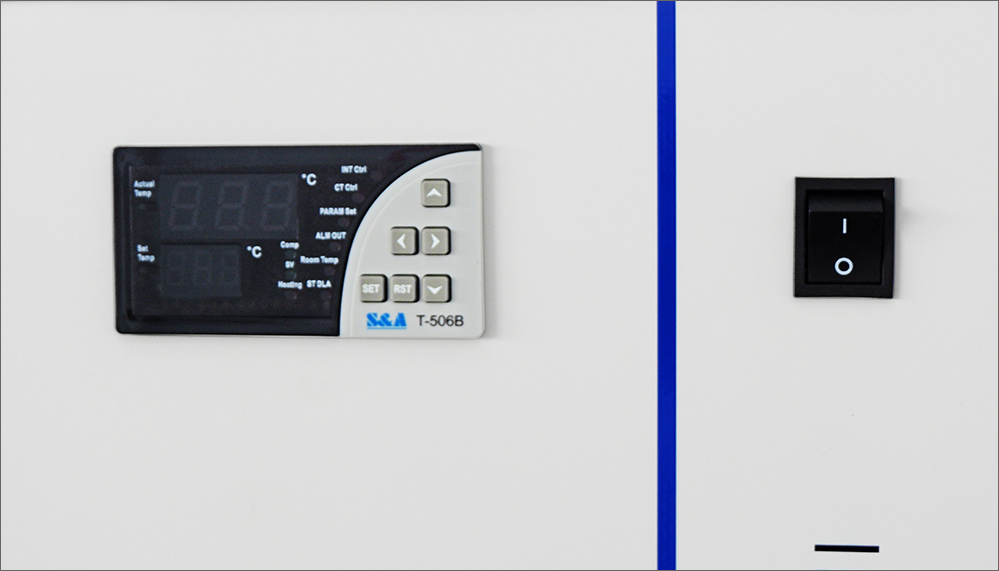

temperature controller



Ease of moving and water draining.

The firm handle can help move the water chillers easily.
drain outlet


Inlet and outlet connector equipped

Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

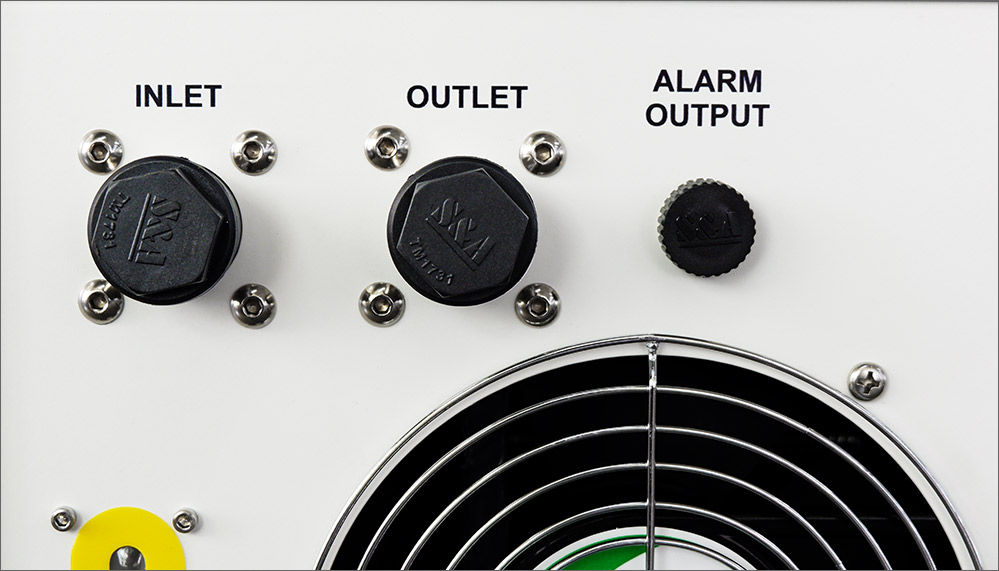

inlet & outlet



Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.


water level gauge

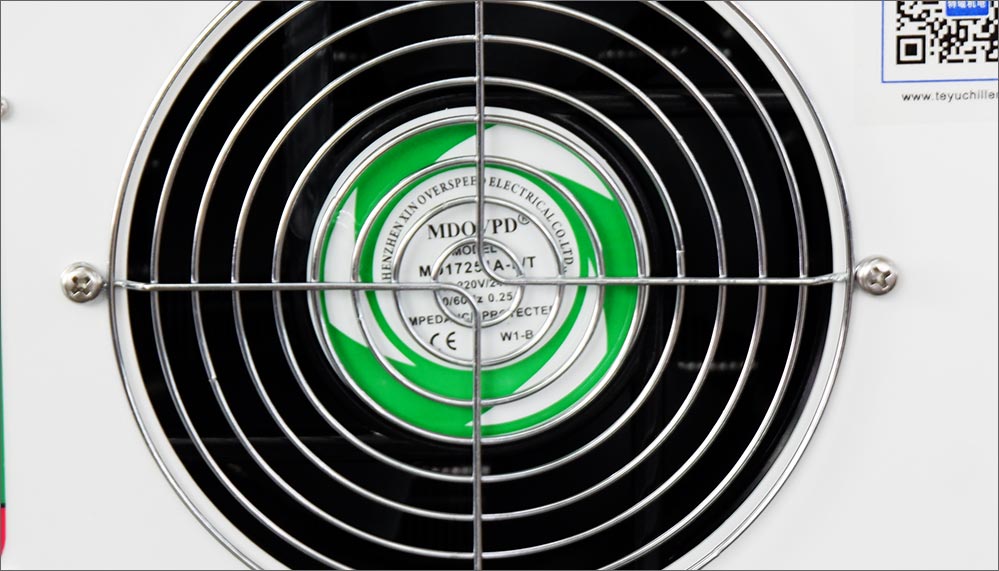

cooling fan
Customized dust gauze available and easy to take apart.


  TEMPERATURE CONTROLLER PANEL DESCRIPTION

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.

User also can adjust the water temperature as needed.

water chiller temp controller

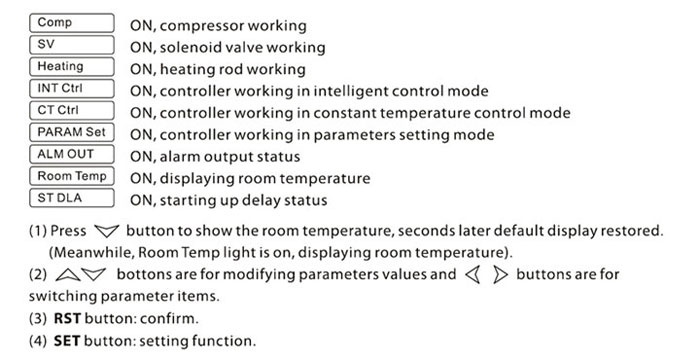

Temperature controller panel description: CHILLERS TEMPERATURE CONTROLLER PANEL


  Alarm function

(1)  Alarm Display:
laser chillers alarm display
When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:

In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.


  ALARM AND OUTPUT PORTS

In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CWUL series chillers possess alarm protection function.

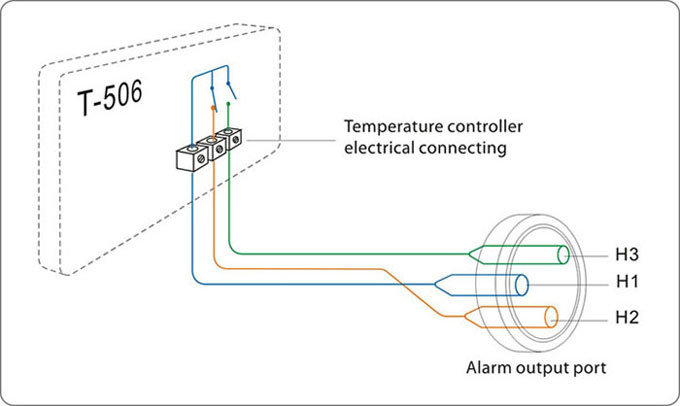

1. Alarm output terminals and wiring diagram.
 CHILLERS ALARM AND OUTPUT PORTS

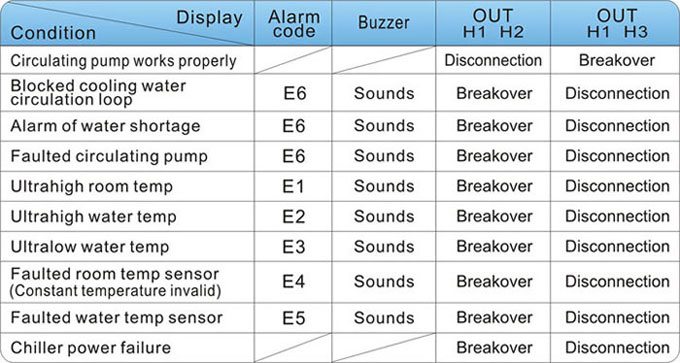

2. Alarm causes and working status table.
 water chillers Alarm


Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.

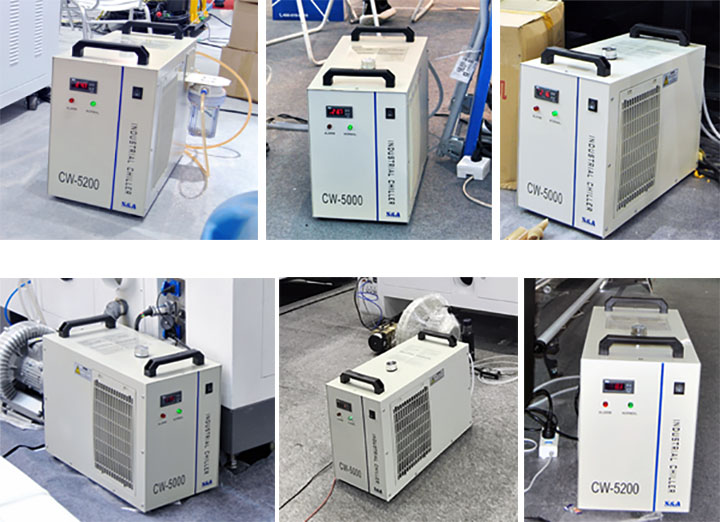

  CHILLER APPLICATION

water chiller application





  WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop


  TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.
WATER CHILLER TEST SYSTEM

Video


How to adjust the water temperature for T-506 intelligent mode of chiller
