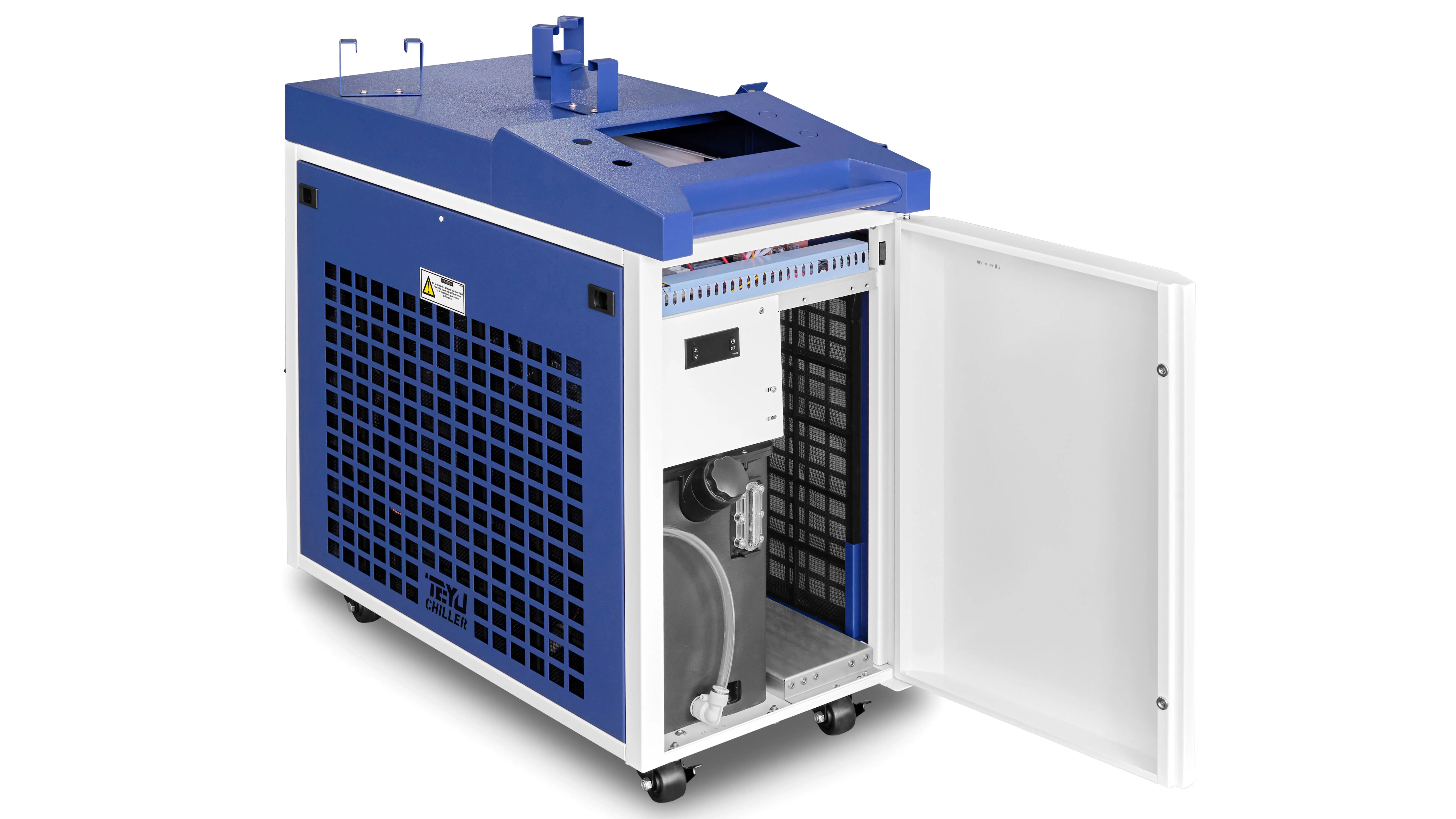

Industrial Chiller CWFL-1500ANW12 for 1500W Handheld Laser Welder All-in-One Design
Industrial Chiller CWFL-1500ANW12 is specially designed by TEYU chiller manufacturer for 1500W handheld laser welding machine. It boasts dual cooling circuits that can simultaneously cool both the fiber laser and the optics/laser gun. With excellent workmanship, efficient cooling, easy installation and maintenance, industrial chiller CWFL-1500ANW12 is an ideal cooling device for your handheld laser welding machine. It's also suitable to cool the handheld fiber laser cleaners/cutters/engravers.
Industrial chiller CWFL-1500ANW12 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack water chiller. With a built-in TEYU industrial chiller, after installing the user's handheld laser welder on the top or right side, it constitutes a portable and mobile handheld laser welder. Laser gun holder & cable holder make it easy to place the laser gun and cables, saving space, and can easily be carried to the processing site in various application scenarios.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Model: CWFL-1500ANW12
Machine Size: 88 X 40 X 76cm(LxWxH)
Warranty: 2 years
Standard: CE, REACH and RoHS
Product Parameters
| Model | CWFL-1500ANW12TY | CWFL-1500BNW12TY |
| Voltage | AC 1P 220-240V | |
| Frequency | 50Hz | 60Hz |
| Current | 1.2~10.8A | 1.2~9.9A |
Max. power consumption | 2.33kW | 2.24kW |
Compressor power | 1.28kW | 1.17kW |
| 1.72HP | 1.56HP | |
| Refrigerant | R-410a | |
| Precision | ±1℃ | |
| Reducer | Capillary | |
| Tank capacity | 10L | |
| Inlet and outlet | Φ6+12 Fast connector | |
| Pump power | 0.26kW | |
Max. pump pressure | 3bar | |
Rated flow | 1L/min+＞15L/min | |
| N.W. | 54Kg | |
| G.W. | 66Kg | |
| Dimension | 88 X 40 X 76cm(LxWxH) | |
| Package dimension | 95 X 48 X 95cm(LxWxH) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Features
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* All-in-one design
* Lightweight
* Movable
* Space-saving
* Easy to carry
* User-friendly
* Applicable to various application scenarios
(Note: fiber laser is not included in the package)
Optional Items
Product Details
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.
Laser Gun Holder & Cable Holder
Easy to place the laser gun and cables, saving space, easy and portable, and can easily carry to the processing site in various application scenarios.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
Certificate
Product Working Principle
FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the industrial chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
