Industrial chiller for induction heater

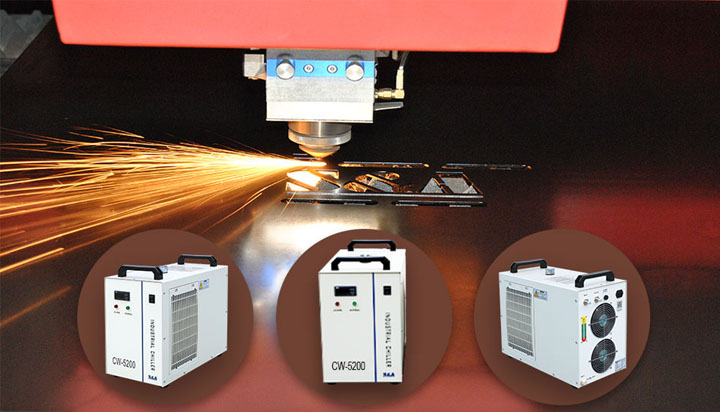

S&A Teyu CW-5000 industrial chiller with compact size, long working life and simple operation has high precision temperature control in induction heater .

Item NO.:
CW-5000
Product Origin:
Guangzhou,China
Shipping Port:
Guangzhou,China
Cooling capacity:
800W
Precision:
±0.3℃
Voltage:
220V/110V
Frequency:
50/60Hz
Refrigerant:
R-134a
Reducer:
capillary
Pump power:
0.03KW/0.1KW
Max.pump lift:
10M/25M
Max.pump flow:
10L/min,16L/min
N.W:
24Kgs
G.W:
27Kgs
Dimension:
58*29*47(LXWXH)
Package dimension:
70*43*58(LXWXH)

Inquiry

Write a Review

Product Description

water chiller

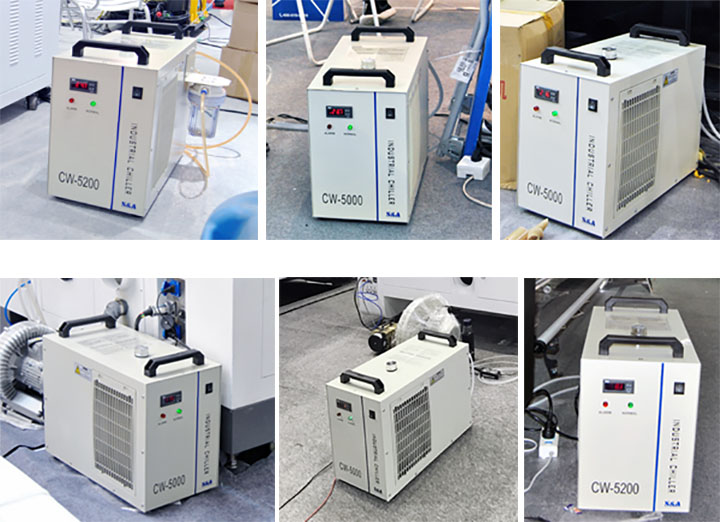

S&A Teyu CW-5000 industrial chiller with compact size, long working life and simple operation has high precision temperature control in induction heater .
S&A Teyu CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the temperature control in ±0.3℃ precision. SA chiller is mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

Features

1. 800W cooling capacity; use environmental refrigerant

2. Compact size, long working life and simple operation;

3. ±0.3°C precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;
7. Optional heater and water filter.

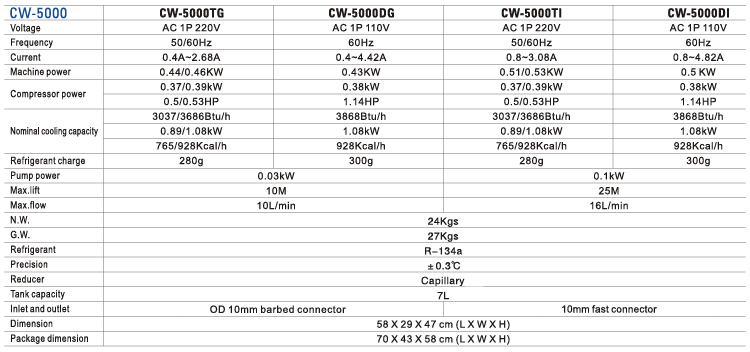

Specification

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

Note:

1.other electric sources can be customized; heating and higher temperature control precision functions are optional;

2.the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal,evaporator and condenser

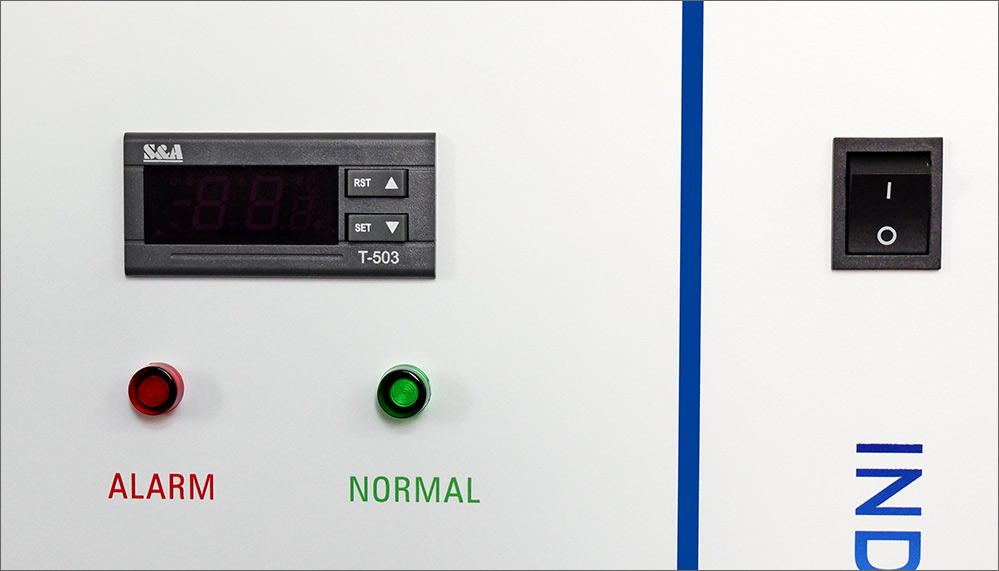

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.

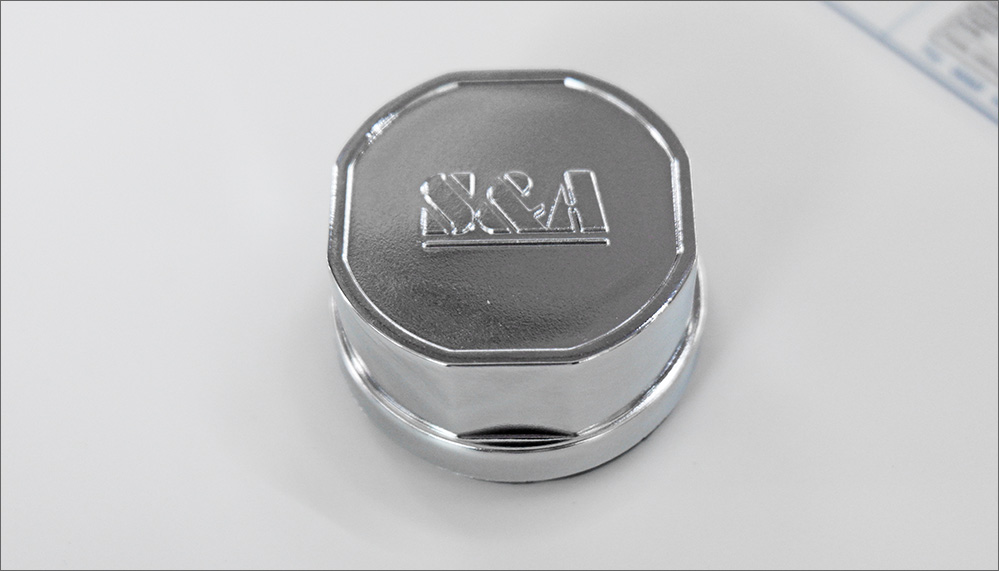

Ease of moving and water filling

The firm handle can help move the water chillers easily.

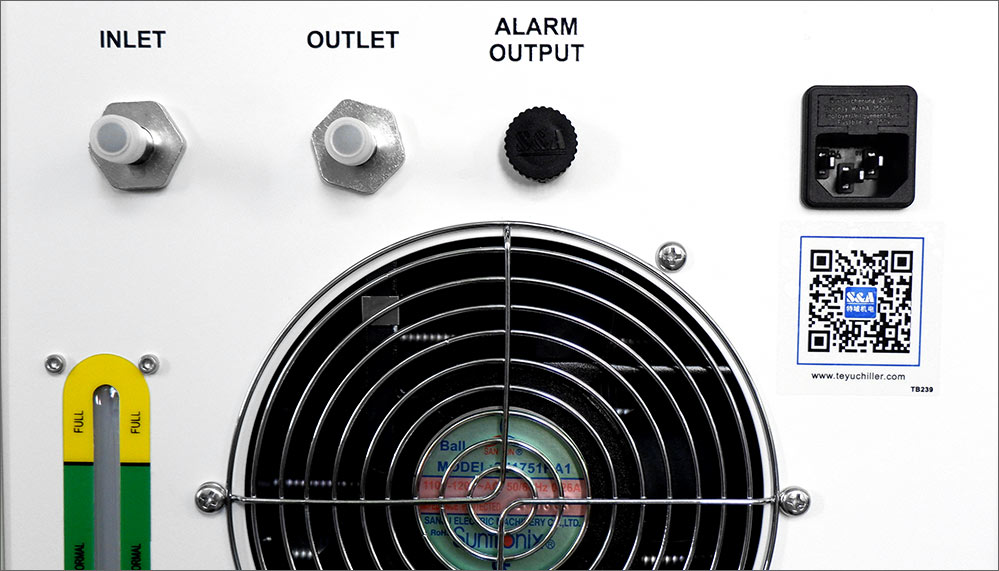

Inlet and outlet connector equipped. Multiple alarm protection.

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

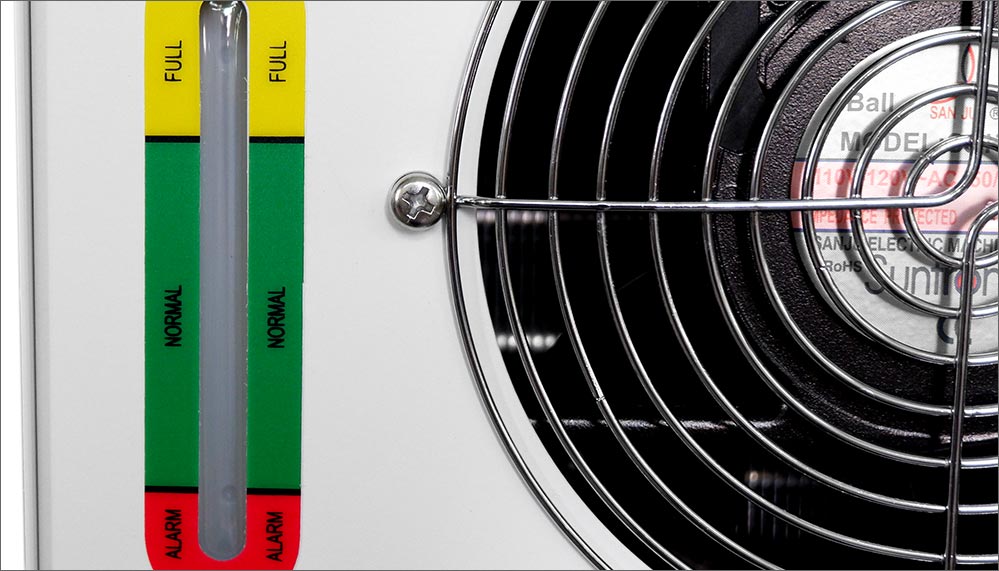

Cooling fan of famous brand installed.

Level gauge equipped.

Cooling fan with high quality and low failure rate.

Alarm description

CW5000 chiller is designed with built-in alarm functions.

E1 - over high room temperature

E2 - over high water temperature

E3 - over low water temperature

E4 - room temperature sensor failure

E5 - water temperature sensor failure

Identify Teyu(S&A Teyu) authentic chiller

All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.

Please recognize S&A Teyu logo when you purchase S&A Teyu water chillers.

Components carry “S&A Teyu” brand logo. It is an important identification distinguishing from counterfeit machine.

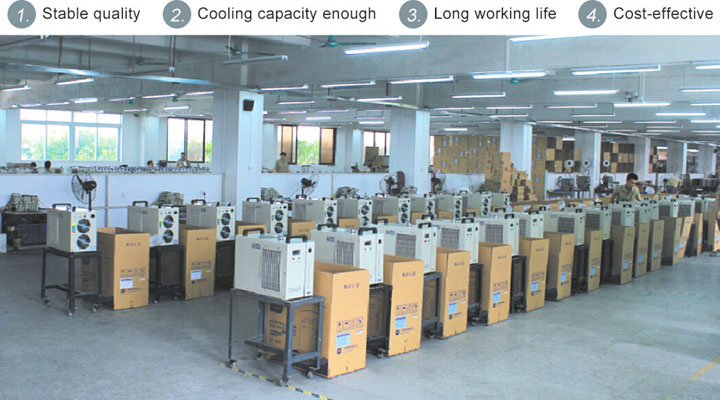

More than 3,000 manufacturers choosing Teyu (S&A Teyu)

The reasons of quality guarantee of Teyu (S&A Teyu) chiller

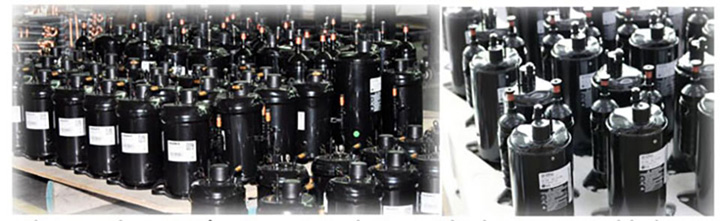

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.

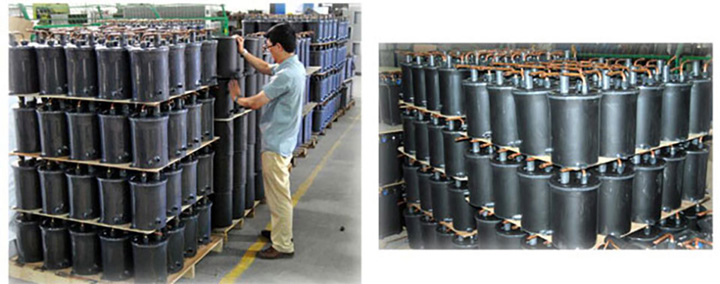

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

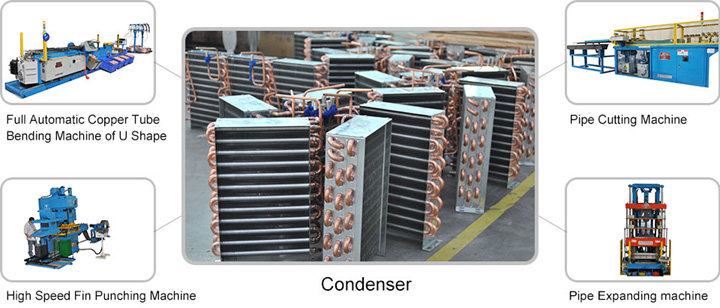

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu
