Industrial Process Chiller
VR
Product Introduction

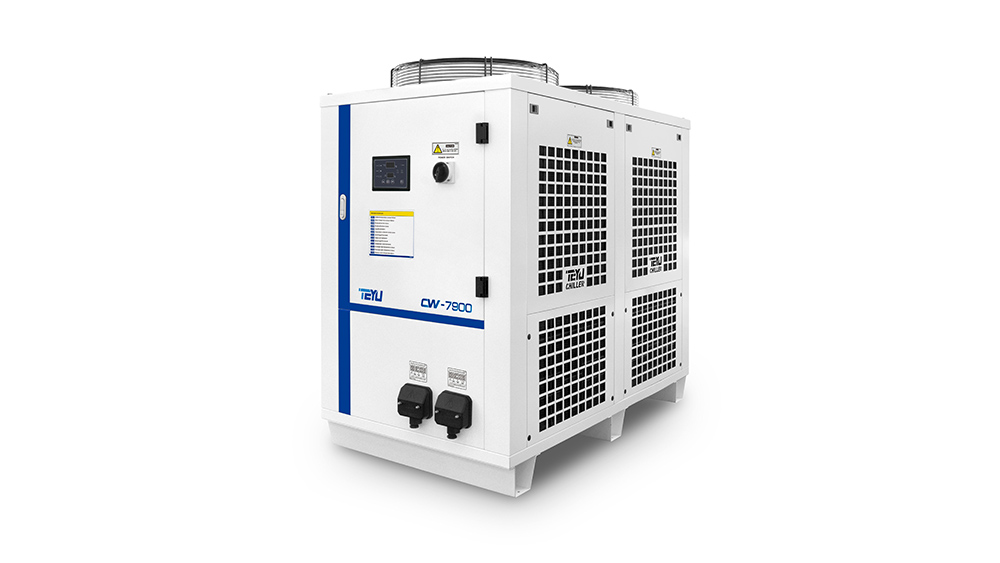

Industrial Process Chiller CW-7900 34KW Cooling Capacity

Model: CW-7900

Machine Size: 155x80x135cm (L x W x H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters
ModelCW-7900ENTYCW-7900FNTY
VoltageAC 3P 380VAC 3P 380V
Frequency50Hz60Hz
Current2.1~34.1A2.1~28.7A
Max. power consumption16.42kW15.94kW


Compressor power

10.62kW10.24kW
14.24HP13.73HP



Nominal cooling capacity

112596Btu/h
33kW
28373Kcal/h
RefrigerantR-410a
Precision±1℃
ReducerCapillary
Pump power1.1kW1kW
Tank capacity170L
Inlet and outletRp1"
Max. pump pressure6.15bar5.9bar
Max. pump flow117L/min130L/min
N.W.291Kg277Kg
G.W.331Kg317Kg
Dimension155x80x135cm (L x W x H)
Package dimension170X93X152cm (L x W x H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 33kW

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* Intelligent temperature controller

* Multiple alarm functions

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V, 415V or 460V


Application

* Laboratory equipment (rotary evaporator, vacuum system)

* Analytical equipment (spectrometer, bio analyzes, water sampler)

* Medical diagnostic equipment(MRI, X-ray)

* Plastic molding machines

* Printing machine

* Furnace

* Welding machine

* Packaging machinery

* Plasma etching machine

* UV curing machine

* Gas generators

Optional Items



 Heater




Filter


Product Details

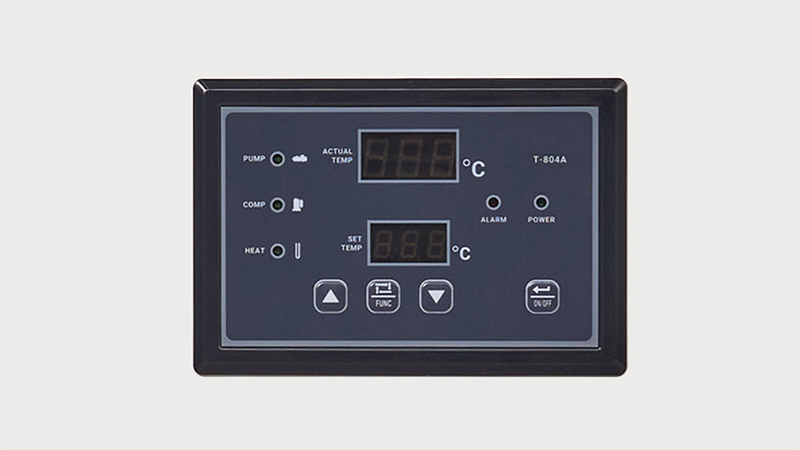

Industrial Process Chiller CW-7900 Intelligent temperature controller


Intelligent temperature controller


The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Industrial Process Chiller CW-7900 Easy-to-read water level indicator


Easy-to-read water level indicator


The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

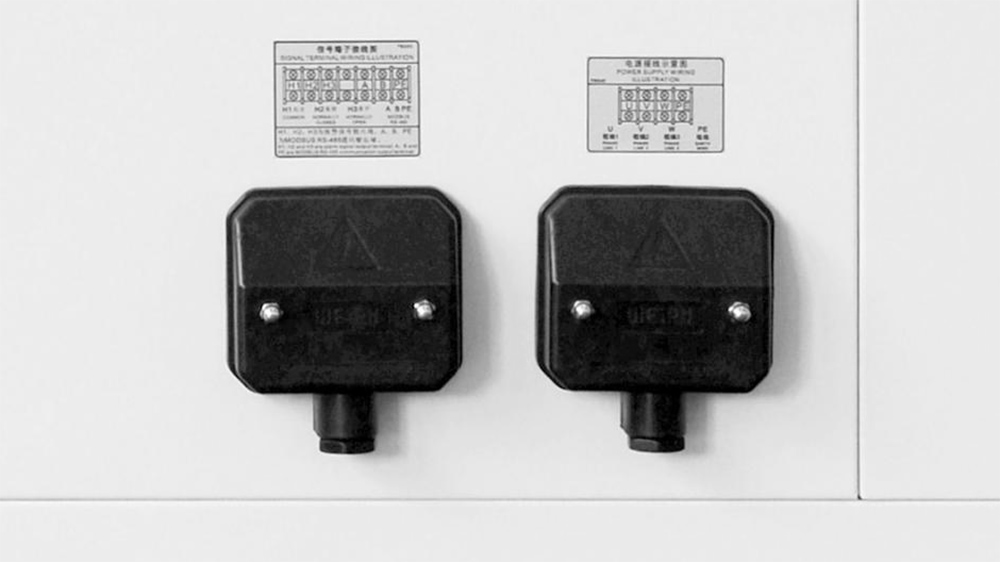

Industrial Process Chiller CW-7900 Junction Box

                                        Junction Box


TEYU engineers' professional design, easy and stable wiring.

Ventilation Distance


Industrial Process Chiller CW-7900 Ventilation Distance

Certificate
Industrial Process Chiller CW-7900 Certificate
Product Working Principle


Industrial Process Chiller CW-7900 Product Working Principle

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the industrial chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team ([email protected]) first.
