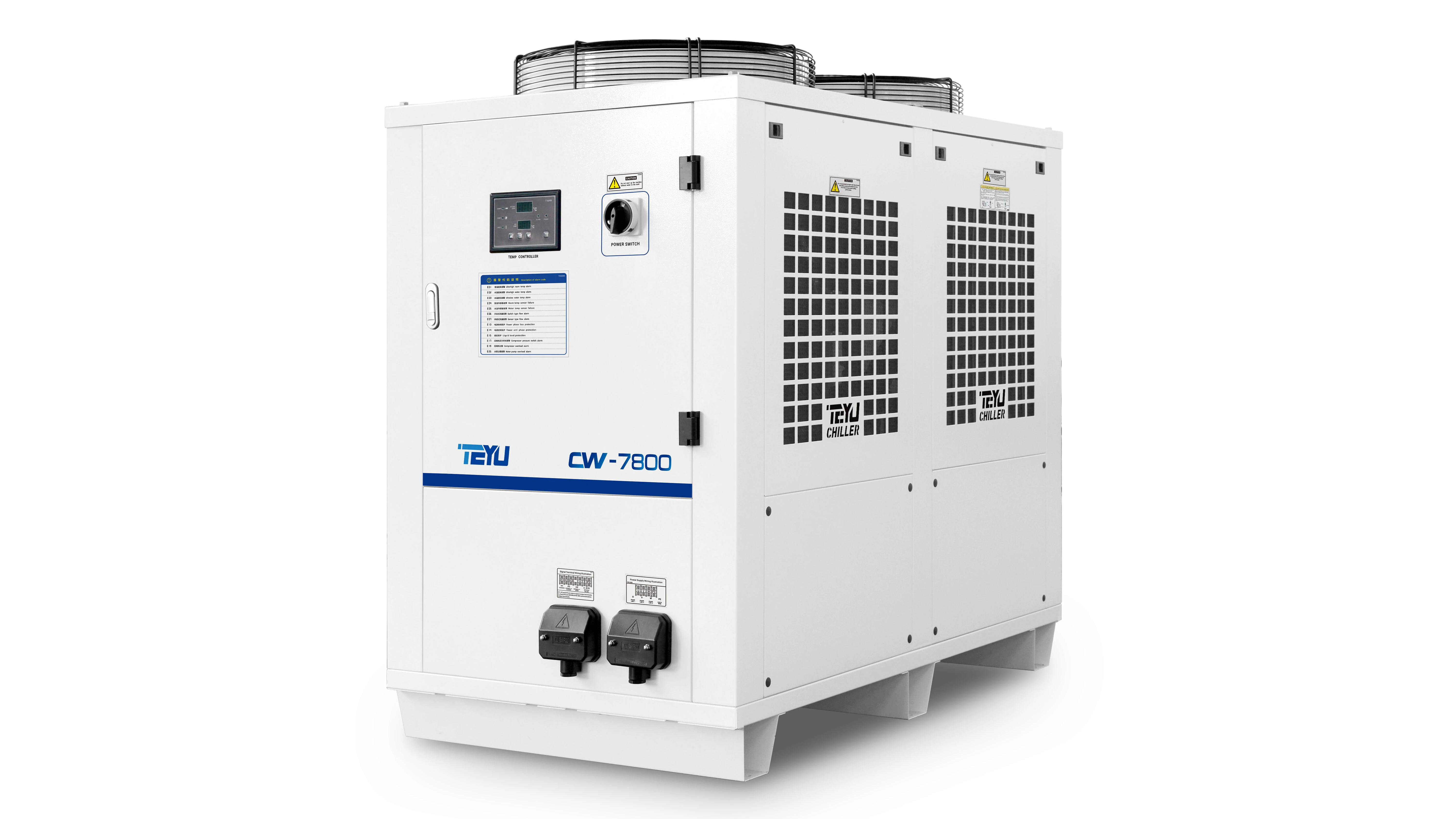

Industrial Process Water Chiller Unit CW-7800 26000W Large Cooling Capacity High Energy Efficiency

7 Ton (26kW) Industrial Water Chiller CW-7800 High-Efficiency Cooling System

TEYU industrial water chiller CW-7800 is designed to meet demanding cooling requirements in a wide range of industrial, analytical, medical, and laboratory applications. It delivers up to 26 kW (≈7.4 tons) of high cooling capacity, ensuring stable and reliable 24/7 operation. Equipped with a high-performance compressor, the system provides excellent refrigeration efficiency and consistent cooling performance for high-power process equipment. The unique evaporator-in-tank configuration is specially optimized for industrial process cooling applications.

CW-7800 supports high water flow rates with low pressure drop, ensuring stable operation even under heavy-duty conditions. Multiple alarm protection functions provide comprehensive system safety. The removable filter gauzes allow easy routine maintenance, while an integrated RS485 interface enables seamless connection with PC or industrial control systems. This unit is an ideal cooling solution for high-power industrial processing equipment requiring continuous operation.

Inquiry

Write a Review

Product Introduction

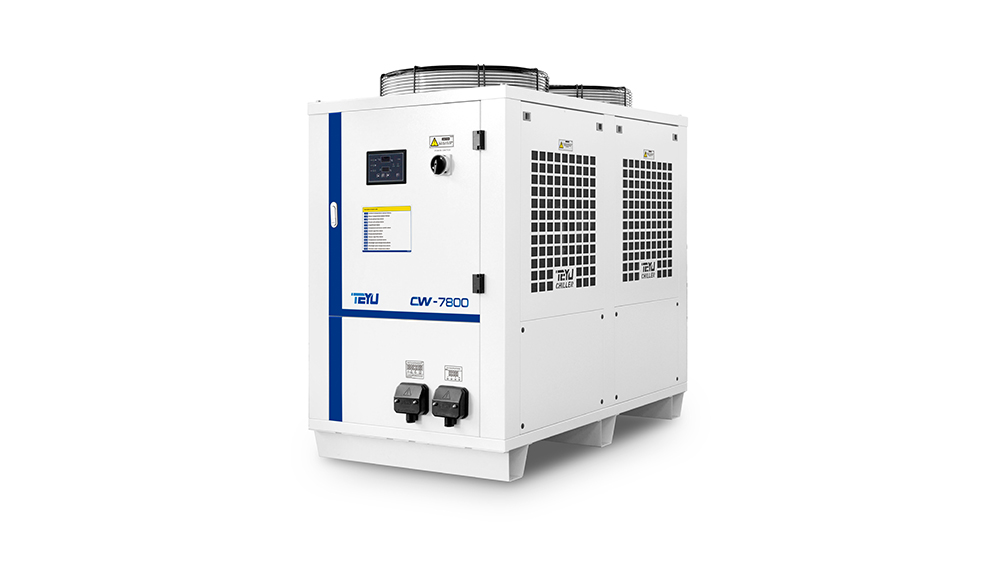

TEYU Industrial Cooling Water System CW-7800

Model: CW-7800

Machine Size: 155 × 80 × 135cm (L × W × H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-7800ENTY	CW-7800FNTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	2.1~23.1A	2.1~22.7A
Max. power consumption	12.4kW	14.2kW
Compressor power	6.6kW	8.5kW
Compressor power	8.97HP	11.39HP
Nominal cooling capacity	88712Btu/h
	26kW
	22354Kcal/h
Refrigerant	R-410A/R-32
Precision	±1℃
Reducer	Capillary
Pump power	1.1kW	1kW
Tank capacity	170L
Inlet and outlet	Rp1"
Max. pump pressure	6.15 bar	5.9 bar
Rated flow	66L/min
N.W	271kg	270kg
G.W	311kg	310kg
Dimension	155 × 80 × 135cm (L × W × H)
Package dimension	170 × 93 × 152cm (L × W × H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 26kW

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A/R-32

* Intelligent temperature controller

* Multiple alarm functions

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V,415V or 460V

Application

* Laboratory equipment (rotary evaporator, vacuum system)

* Analytical equipment (spectrometer, bio analyzes, water sampler)

* Medical diagnostic equipment(MRI, X-ray)

* Plastic molding machines

* Printing machine

* Furnace

* Welding machine

* Packaging machinery

* Plasma etching machine

* UV curing machine

* Gas generators

Optional Items

Heater

Filter

Product Details

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Junction Box

TEYU engineers' professional design, easy and stable wiring.

Ventilation Distance

Industrial Cooling Water System CW-7800 Ventilation Distance

Certificate

Product Working Principle

Industrial Cooling Water System CW-7800 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
