Product Description

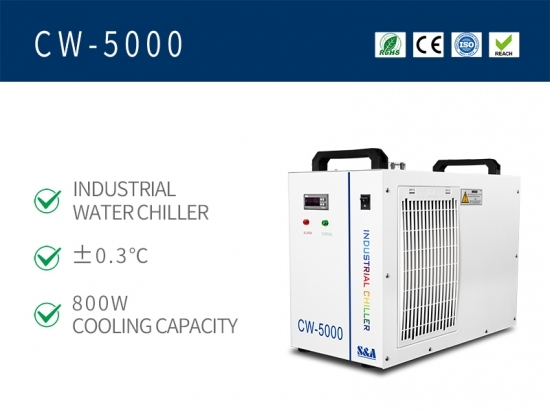

Cooling uv led curing lamp, S&A Teyu CW-5000 industrial water chillers meet the need.
S&A Teyu industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
Features
1. 800W cooling capacity; use environmental refrigerant
2. Compact size, long working life and simple operation;
3. ±0.3°C precisely temperature control;4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;
7. Optional heater and water filter.
Specification
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature. CW-5000: applied to cool CO2 laser tube (emitting rate higher than 60%);
CW-5000: applied to cool CNC spindle or welding equipment;
CW-5000 : applied to cool solid-state laser.
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Note: other electric sources can be customized; heating and higher temperature control precision functions are optional.
PRODUCT INTRODUCTION
Independent production of sheet metal,evaporator and condenser
High precision temperature control system
Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.
Ease of moving and water filling
The firm handle can help move the water chillers easily.
Inlet and outlet connector equipped. Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.
Alarm description
CW5000 chiller is designed with built-in alarm functions.
E1 - over high room temperature
E2 - over high water temperature
E3 - over low water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
Identify Teyu(S&A Teyu) authentic chiller
All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.
Please recognize S&A Teyu logo when you purchase S&A Teyu water chillers.
Components carry “S&A Teyu” brand logo. It is an important identification distinguishing from counterfeit machine.
More than 3,000 manufacturers choosing Teyu (S&A Teyu)
The reasons of quality guarantee of Teyu (S&A Teyu) chiller
Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.
Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.
Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.
Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu
