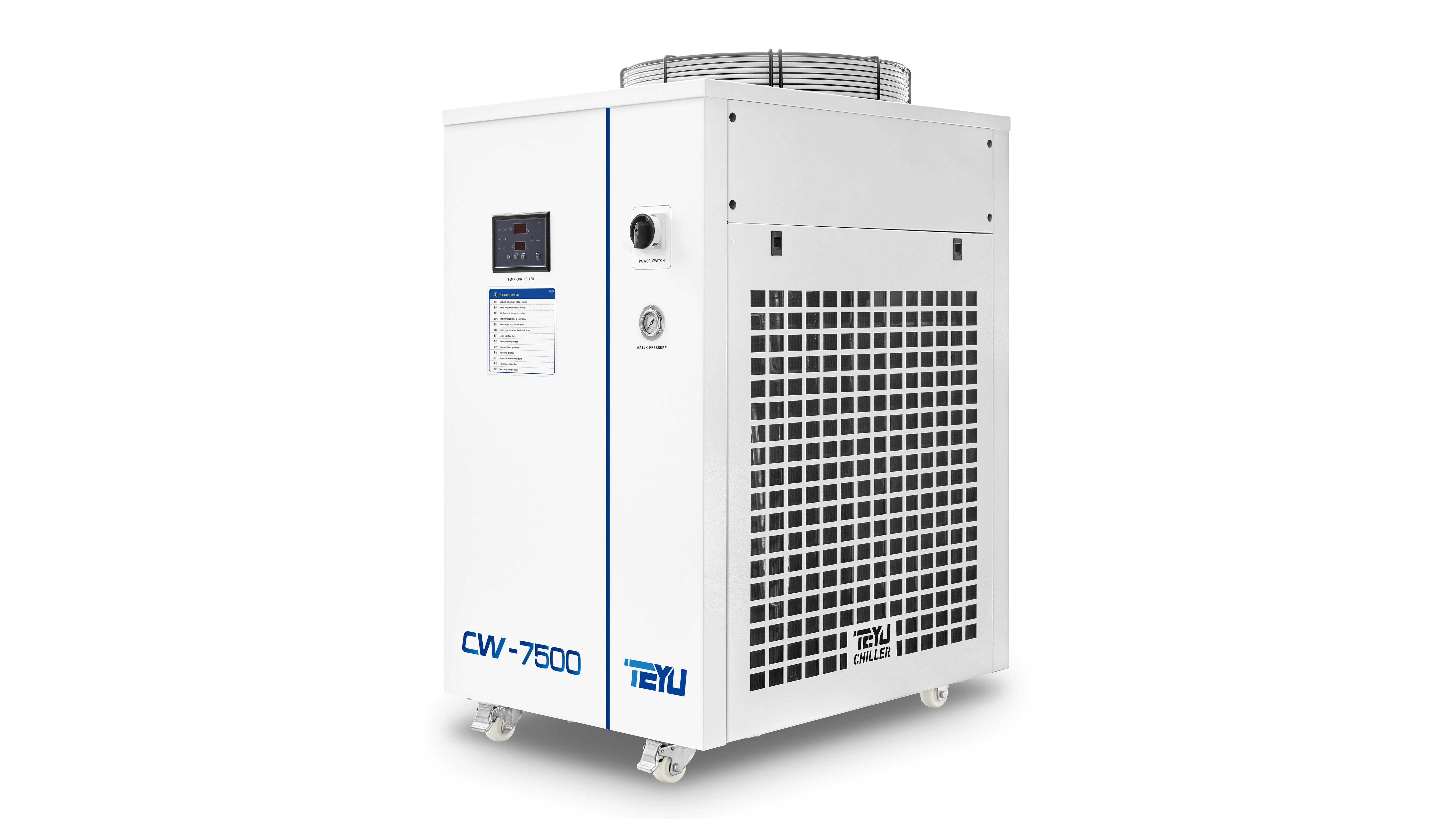

5 Ton (18kW) Industrial Chiller CW-7500 with Constant & Intelligent Temperature Control

5 Ton (18kW) Industrial Chiller CW-7500 with Constant & Intelligent Temperature Control

TEYU industrial chiller CW-7500 offers a cooling capacity of up to 18 kW (approximately 5 Ton / 5.1 TR), making it an ideal cooling solution for a wide range of industrial, analytical, laboratory, and medical applications. It's equipped with an intelligent temperature controller with a clear English interface, allowing real-time monitoring of operating conditions. Its refrigerant circuit adopts solenoid valve bypass technology to reduce compressor start-stop frequency, effectively extending service life and improving system stability.

All key components of the industrial chiller CW-7500 are manufactured to high-quality standards to ensure reliable long-term operation. The air-cooled chiller complies with CE, RoHS, and REACH certifications. Multiple alarm protection functions provide comprehensive system safety. An integrated RS485 interface enables easy connection with PC or industrial control systems. Available in multiple power specifications and backed by a 2-year warranty.

Inquiry

Write a Review

Product Introduction

Model: CW-7500

Machine Size: 102 × 71 × 137cm (L × W × H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-7500ENTY	CW-7500FNTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	2.3~22.4A	2.9~19.8A
Max. power consumption	8.86kW	8.67kW
Compressor power	5.31kW	5.12kW
Compressor power	7.22HP	6.97HP
Nominal cooling capacity	61416Btu/h
	18kW
	15476Kcal/h
Refrigerant	R-410A/R-32
Precision	±1℃
Reducer	Capillary
Pump power	1.1kW	1kW
Tank capacity	70L
Inlet and outlet	Rp1"
Max. pump pressure	6.15 bar	5.9 bar
Rated flow	66L/min
N.W.	163kg	164kg
G.W.	185kg	186kg
Dimension	102 × 71 × 137cm (L × W × H)
Package dimension	112 × 82 × 150cm (L × W × H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 18000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A/R-32

* Intelligent temperature controller

* Multiple alarm functions

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V, 415V or 460V

Application

* Laboratory equipment (rotary evaporator, vacuum system)

* Analytical equipment (spectrometer, bio analyzes, water sampler)

* Medical diagnostic equipment(MRI, X-ray)

* Plastic molding machines

* Printing machine

* Furnace

* Welding machine

* Packaging machinery

* Plasma etching machine

* UV curing machine

* Gas generators

Optional Items

Heater

Filter

Product Details

Intelligent temperature controller

The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

Junction Box

TEYU S&A engineers' professional design, easy and stable wiring.

Ventilation Distance

TEYU water chiller CW-7500 Ventilation Distance

Certificate

Product Working Principle

Industrial Chiller Unit CW-7500 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
