Portable industrial air cooled chillers for co2 laser tube

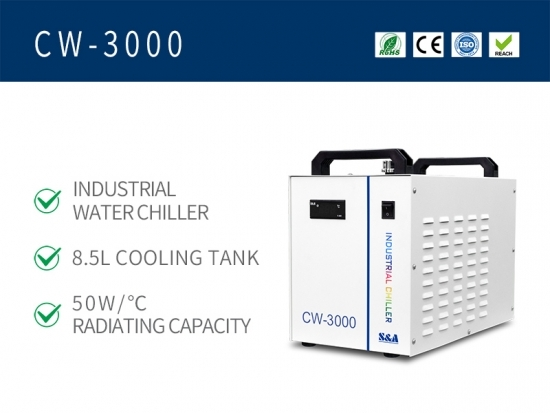

S&A Teyu CW-3000 series portable industrial air cooled chillers are able to cool CO2 laser tube . It is widely applied to cool laser marking machine, laser engraving & cutting machine, lab laser processing machine and so on.

Item NO.:
CW-3000
Product Origin:
Guangzhou,China
Shipping Port:
Guangzhou,China
Voltage:
110V/220V
Frequency:
50/60Hz
Max.pump lift:
10M/70M
Max.pump flow:
10L/min or 2L/min
N.W:
9.5Kgs/12Kgs
G.W:
12Kgs/14.5Kgs
Dimension:
49*27*38(L*W*H)
Package dimension:
59*39*48(L*W*H)

Inquiry

Write a Review

Product Description

CW3000water chillers

CW-3000 portable air cooled chillers is energy saving with compact design,stable cooling performance, ease of use and provides good protection for the equipment.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

Remarks: CW-3000 portable air cooled chillers equipment are equipped high speed fans inside and take away the heat fast through water recirculation. However, its water temperature is related to the ambient temperature and can't be manually adjusted.

Co2 laser chillers features

1. Radiating capacity: 50W / °C;

2. Small thermolysis water chiller, energy saving, long working life and simple operation;

3. With completed water flow and over high temperature alarm functions;

4. Multiple power specifications; CE ,RoHS and REACH approval.

Specification

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal and heat exchanger. Fast cooling.

Adopt IPG fiber laser for welding and cutting sheet metal.

Ease of moving and water filling.

The firm handle can help move the water chillers easily.

Inlet and outlet connector equipped. Multiple alarm protection.

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

High speed fan of famous brand installed.

With quality assurance and low failure rate.

Easy water draining

It is suggested to replace the cooling water(distilled water or purified water as cooling water) every 3 months.

Connection diagram between water chiller and laser machine

Water outlet of the water tank connects to water inlet of the laser machine while water inlet of the water tank connects to water outlet of the laser machine. Aviation connector of the water tank connects to the aviation connector of the laser machine.

Alarm description

CW-3000 industrial chiller is designed with built-in alarm functions.

E0 - water flow alarm input
E1 - ultrahigh water temperature
HH - short circuit of water temperature sensor
LL - water temperature sensor open circuit

MAINTENANCE

1. To ensure good heat dissipating, please open the lid to clean the dirt after the chiller is used in long-term.

2. Users in cold area should use noncorrosive antifreeze fluid

Method of exchanging water in the water tank and the exchanging frequency

Method of exchanging water in the water tank

Drain the waste water out of the water tank through the drain outlet and fill the clean water into the tank through the filling hole.

Exchanging Frequency

The circulating water should be exchanged every 3 months. The quality of the circulating water will directly influence the service life of the laser tube.It is recommended to use purified water or clean distilled water.

Identify authentic S&A Teyu chiller

All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.

Please recognize S&A logo when you purchase S&A Teyu water chillers.

Components carry “S&A” brand logo. It is an important identification distinguishing from counterfeit machine.

S&A Teyu water chillers logo

More than 3,000 manufacturers choosing Teyu (S&A Teyu)

chiller workshop

The reasons of quality guarantee of Teyu (S&A Teyu) chiller

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu
