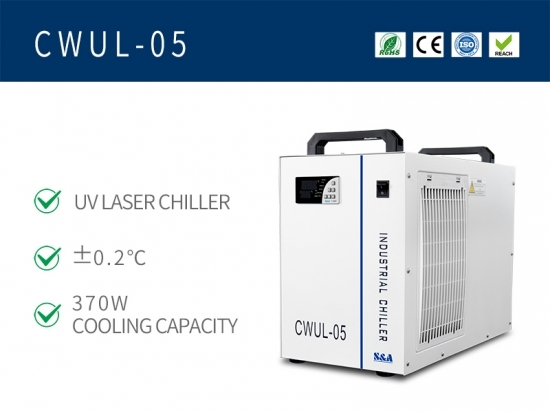

S&A Teyu recirculating chiller CWUL-05 is often used of cooling 3W-5W UV laser .
S&A Teyu CWUL-05 compact chiller with long working life and simple operation has high precision temperature control in spindle systems. S&A Teyu chillers support multiple power specification and have passed CE, RoHS and REACH approval. S&A Teyu chiller’s warranty is 2 years.
recirculating chiller for cooling 3W-5W UV laser
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
S&A Teyu recirculating chiller CWUL-05 is often used of cooling 3W-5W UV laser .
S&A Teyu CWUL-05 compact chiller with long working life and simple operation has high precision temperature control in spindle systems. S&A Teyu chillers support multiple power specification and have passed CE, RoHS and REACH approval. S&A Teyu chiller’s warranty is 2 years.
Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.
1. With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.2℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
UV water chiller units specification
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
PRODUCT INTRODUCTION
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.2°C.
Ease of moving and water draining.
The firm handle can help move the water chillers easily.
Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.
Customized dust gauze available and easy to take apart.
TEMPERATURE CONTROLLER PANEL DESCRIPTION
The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.User also can adjust the water temperature as needed.
Temperature controller panel description: ![CHILLERS TEMPERATURE CONTROLLER PANEL]( "CHILLERS TEMPERATURE CONTROLLER PANEL")
Alarm function
(1) Alarm Display:
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.
ALARM AND OUTPUT PORTS
In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CWUL series chillers possess alarm protection function.
1. Alarm output terminals and wiring diagram.
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.
CHILLER APPLICATION
WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability. Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.
TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.
Video
How to adjust the water temperature for T-506 intelligent mode of chiller
