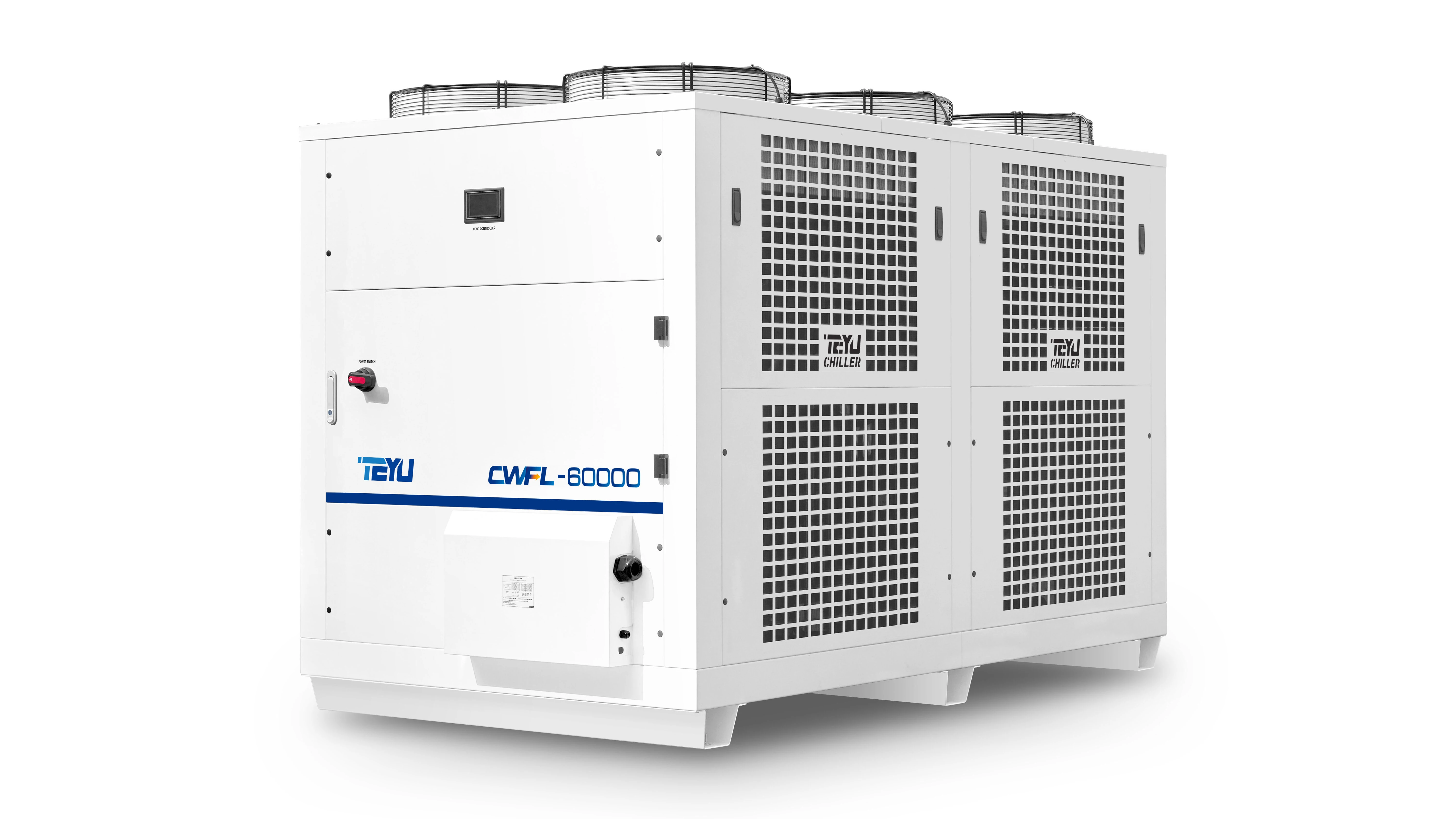

Ultrahigh Power Fiber Laser Chiller CWFL-60000 for 60kW Fiber Laser Cutting Machine

Ultrahigh Power Fiber Laser Chiller CWFL-60000 for 60kW Fiber Laser Cutting Machine

TEYU S&A Chiller Teams has independently developed the Ultrahigh Power Fiber Laser Chiller CWFL-60000, designed to cool 60kW fiber laser cutting machine, which will help drive the laser industry's continuous development towards high power, high efficiency, and high intelligence. Its refrigerant circuit system adopts solenoid valve bypass technology to avoid the compressor's frequent start/stop to prolong its service life. All of the components are carefully selected to ensure reliable operation.

Fiber Laser Chiller CWFL-60000 features a dual circuit cooling system for the optics and laser and enables remote monitoring of its operation through ModBus-485 communication. It intelligently detects the required cooling power for laser processing and controls the compressor's operation in sections based on demand, thereby saving energy and promoting environmental protection. It features multiple built-in alarm protection systems, offers a 2-year warranty, and is customizable.

Inquiry

Write a Review

Product Introduction

Model: CWFL-60000

Machine Size: 259X139X169 cm (L X W X H)

Warranty: 2 years

Application: for 60kW Fiber Laser

Product Parameters

Model	CWFL-60000ETTY	CWFL-60000FTTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	30.2~131.3A	18.4~115.3A
Max. power consumption	62.54kW	72.65kW
Heater power	1.2kW+15kW
Precision	±1.5℃
Reducer	Capillary
Pump power	5.5kW+5.5kW
Tank capacity	340L
Inlet and outlet	Rp 1/2"+Rp 2-1/2"*2
Max. pump pressure	7bar	5.95bar
Rated flow	10L/min+＞600L/min
N.W.	1062Kg	1044Kg
G.W.	1189Kg	1108Kg
Dimension	259X139X169cm (L X W X H)
Package dimension	284X161X178cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V

Optional Items

Heater

Filter

Product Details

Ultrahigh Power Fiber Laser Chiller CWFL-60000 Temperature Controller

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

Ultrahigh Power Fiber Laser Chiller CWFL-60000 Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Junction Box

Professionally designed by engineers from TEYU chiller manufacturers, easy and stable wiring.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-60000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
