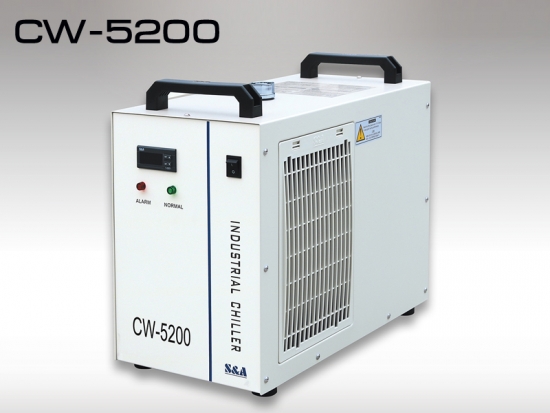

Water and air cooled chiller CW 5200 cools Russia resistance welding machine

Bakhtiyor utilizes the water and air cooled chiller CW-5200 to cool the resistance welding. During his operation, Bakhtiyor put forward the question that why the maximum temperature of S&A Teyu CW-5200 chiller can only be adjusted to 28 ℃, and the minimum temperature could drop to 15 ℃, when S&A Teyu chiller clearly indicates that the temperature can be set with the range of 5-35 ℃.

S&A Teyu chiller CW-5200 has two temperature control modes: intelligent and constant temperature. In Bakhtiyor's situation, it is estimated that it is intelligent temperature control mode. In the intelligent mode, the temperature of the chiller depends on the ambient temperature. It will automatically adjust to 2 degrees lower than the ambient temperature, that is, when the room temperature is 30 degrees, the water temperature is automatically adjusted to 28 degrees.

Warm reminder: in constant temperature mode, the water temperature can be set to 5-35 degrees, but the setting temperature of the chiller is related to the chiller's cooling capacity and the heating capacity of cooling equipment, which deepens on whether the cooling capacity of the chiller equipped matches with the heating capacity of cooling equipment.
