water chiller for Co2 Lasers and CNC routers
Product Description

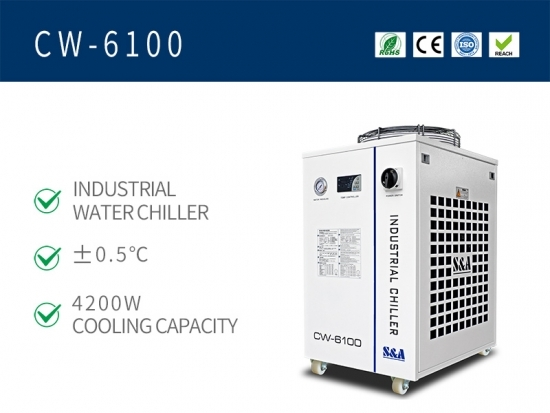

S&A Teyu water chiller CW-6100 is developed and produced by S&A Teyu supplier of China. It is applied for cooling Co2 Lasers and CNC routers. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
S&A Teyu 36KW CNC spindle chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.
2. ±0.5℃ precisely temperature control;
3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;
6. Optional heater and water filter
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

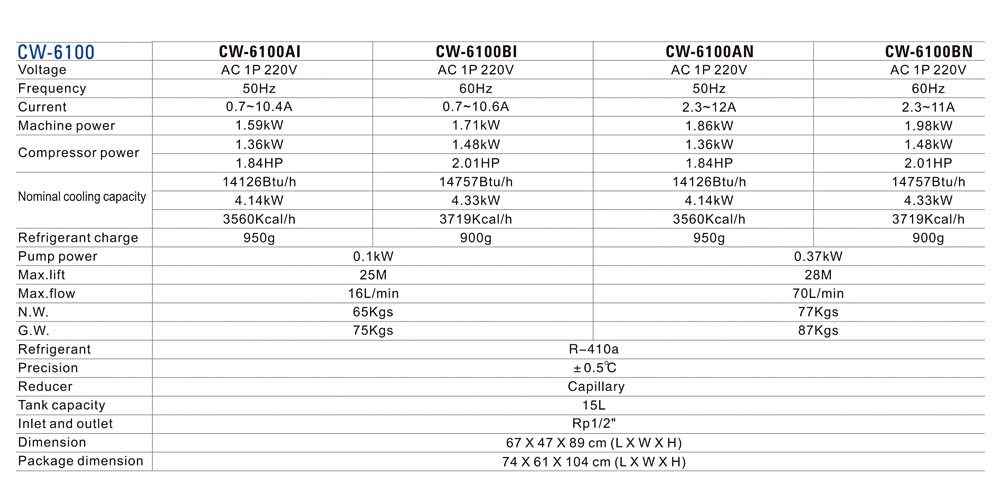

water chillers specification
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
PRODUCT INTRODUCTION
Independent production of sheet metal, evaporator and condenser

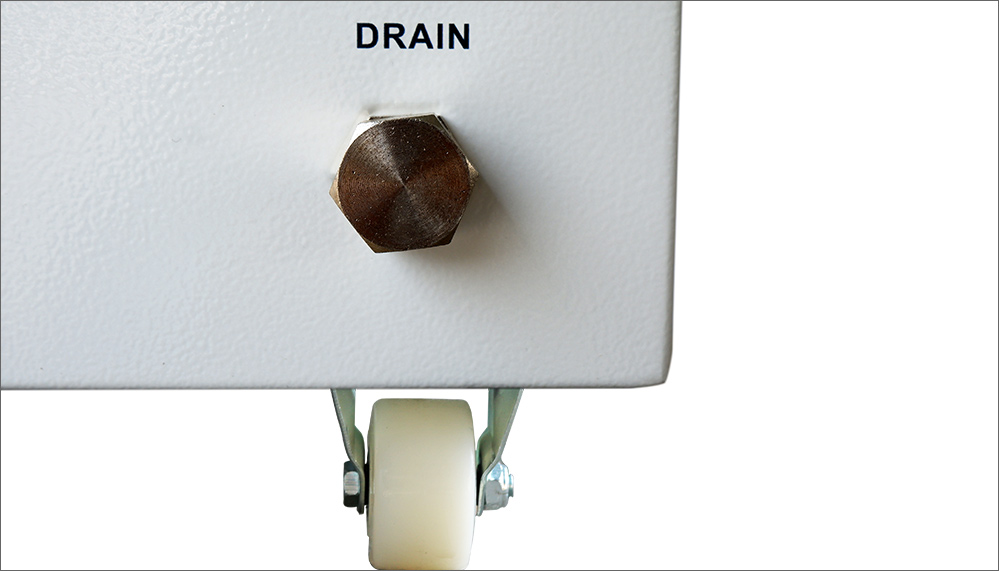

Equipped with water pressure gauges and universal wheels.

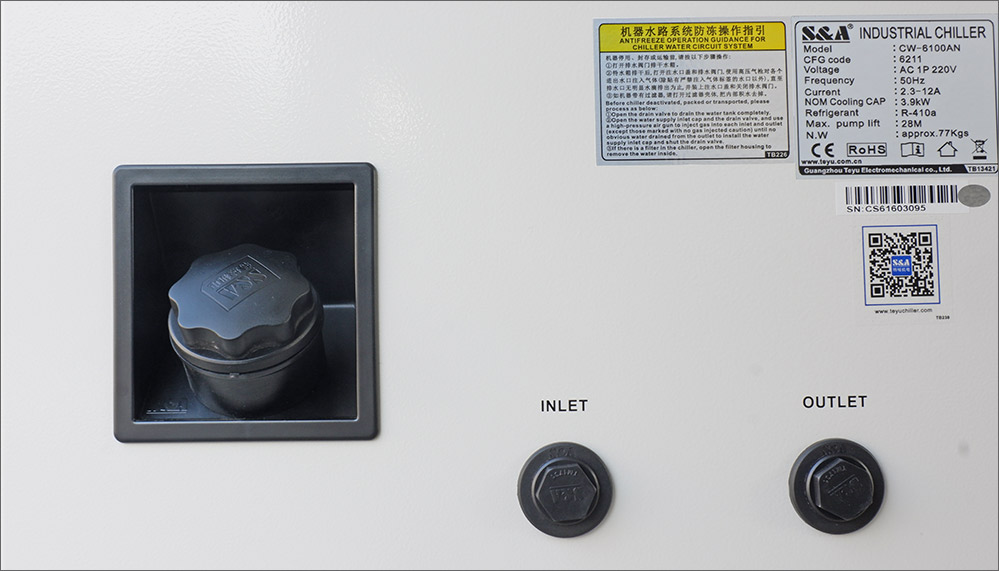

Inlet and outlet connector equipped.
Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

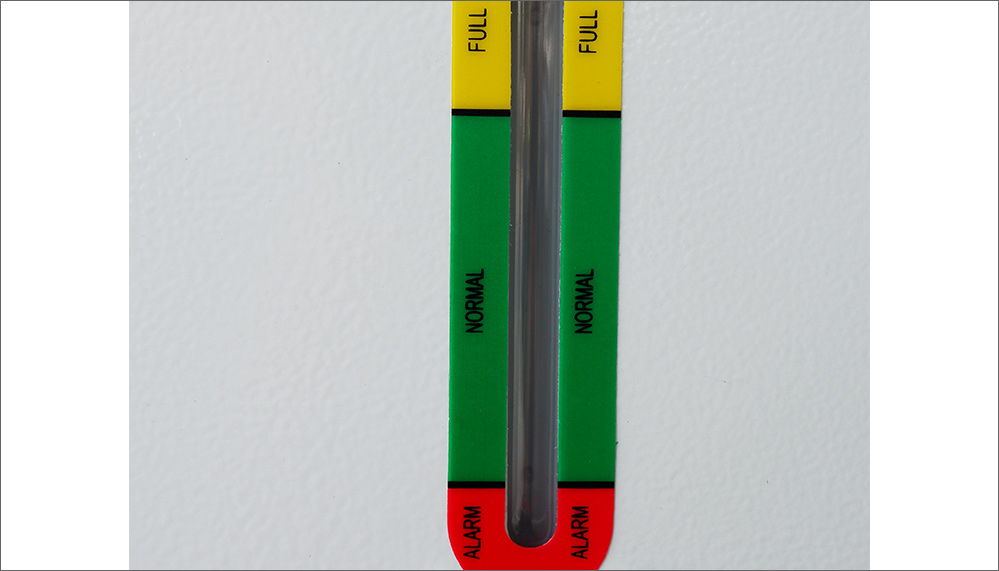

Level gauge equipped.

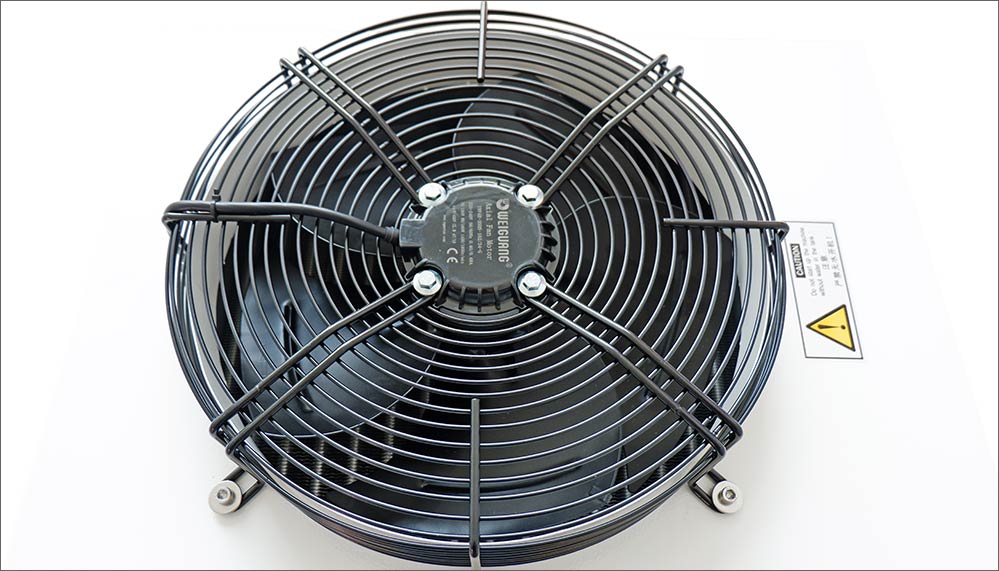

Cooling fan of famous brand installed.
Customized dust gauze available and easy to take apart.

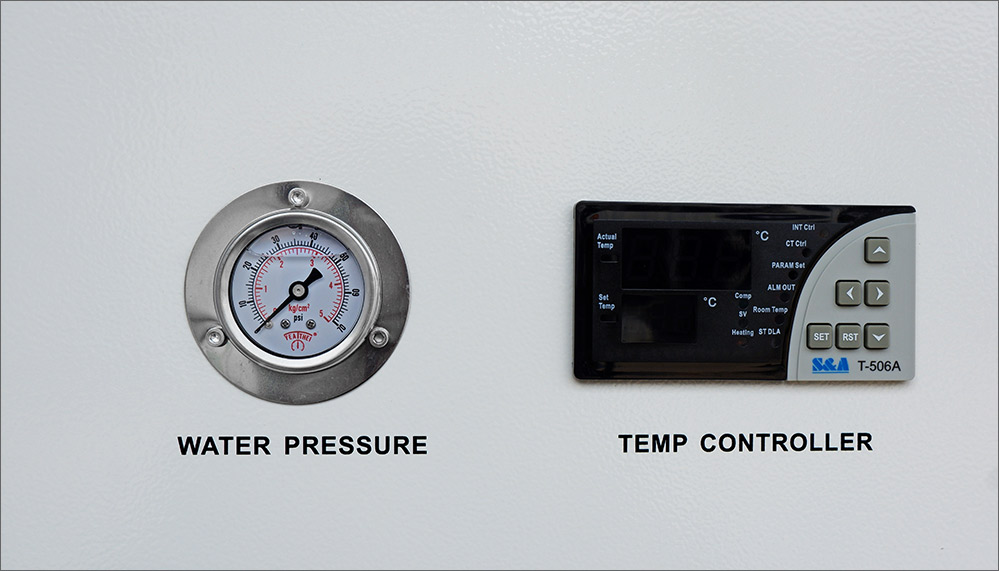

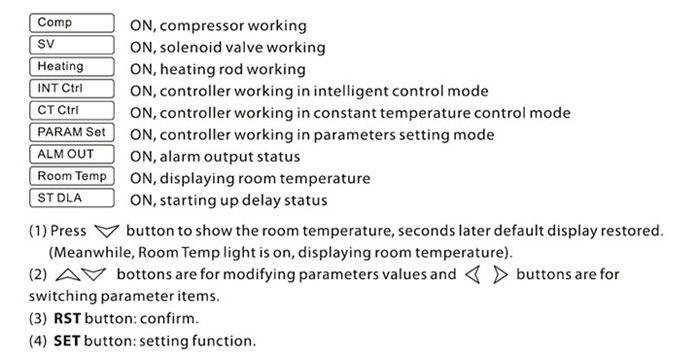

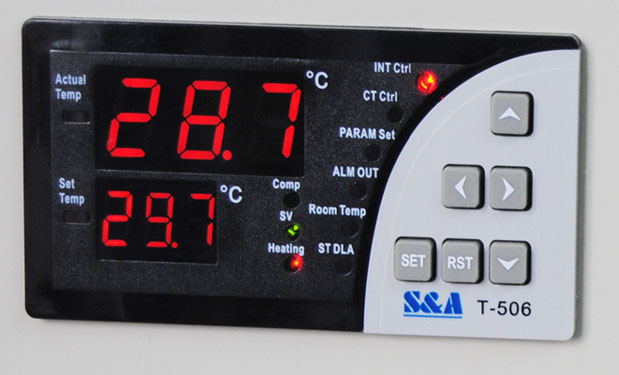

TEMPERATURE CONTROLLER PANEL DESCRIPTION
The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.User also can adjust the water temperature as needed.
Alarm function
(1) Alarm Display:
E1 - ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input
E7 - water flow alarm input
When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.

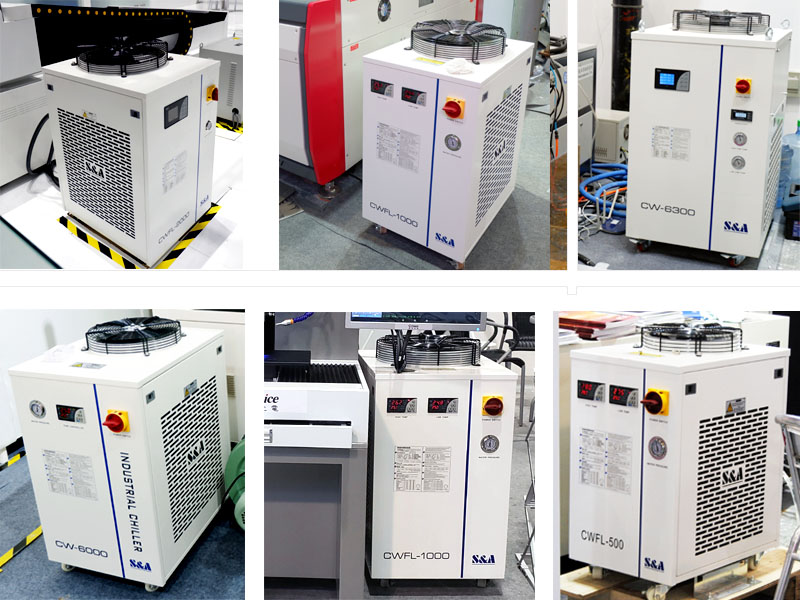

CHILLER APPLICATION

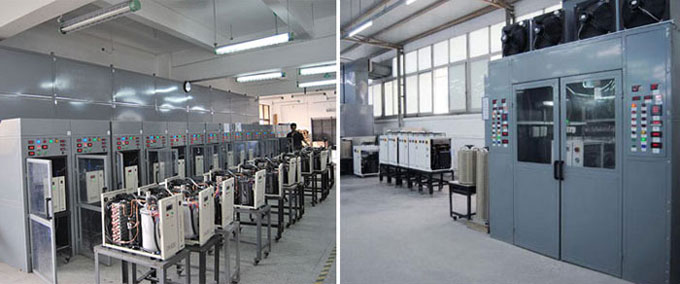

WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.
Video
S&A Teyu Cooling water re-cooler Chiller CW-6100 video
How to adjust the water temperature for T-506 intelligent mode of chiller
S&A Teyu water chiller CW-6100 for cooling fiber cutting machine
S&A Teyu water chiller CW-6100 for sheet metal laser cutting machine
