Product Description

fiber laser chiller

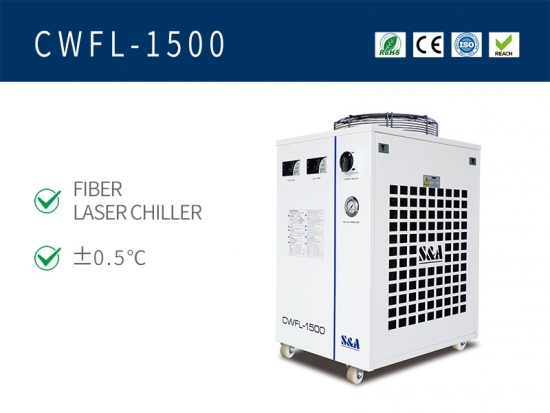

CWFL-1500 water chiller developed by S&A Teyu is made especially for fiber laser applications up to 1.5KW. This industrial water chiller is a temperature control device featuring two independent refrigeration circuits in one package. Therefore, separate cooling from just ONE chiller can be provided for the fiber laser and the laser head, saving considerable space and cost at the same time.


Two digital temperature controllers of the chiller are designed with built-in alarms so that your fiber laser machine can always be well protected against circulation problems or overheating. This laser water chiller is also designed with easy-to-read level check, caster wheels for easy mobility, high performance cooling fan and intelligent temperature control function which suggests water temperature can adjust itself automatically as the ambient temperature changes.

The warranty period is 2 years.


Features

1. Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution;
2. ±0.5℃ precise temperature control;
3. Temperature control range: 5-35 ℃;
4. Constant temperature and intelligent temperature control modes;
5. Built-in alarm functions to avoid water flow problem or temperature problem;
6. CE, RoHS, ISO and REACH compliant;
7. User-friendly temperature controllers for easy operation
8. Optional heater and water filter.



  Specification

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.


  PRODUCT INTRODUCTION


User-friendly temperature controllers for easy operation


temperature controller


Equipped with drain port and universal wheels



drain outlet & universal wheels


Dual inlet and dual outlet port made of stainless steel to prevent potential corrosion or water leakage

inlet & outlet


Water level check lets you know when it’s time to refill the tank

water level gauge


Cooling fan of famous brand installed.

With high quality and low failure rate.
cooling fan


Alarm description

CWFL-1500 water chiller is designed with built-in alarm functions.

E1 - ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input

E7 - water flow alarm input


  CHILLER APPLICATION

 CHILLER APPLICATION




 WAREHOUSE

18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard production procedure, and standard parts rate up to 80% which is the source of stable quality.


air cooled water chillers workshop


  TEST SYSTEM
Excellent laboratory testing system simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be performed on each finished chiller.

WATER CHILLER TEST SYSTEM


Video

How to adjust the water temperature for T-506 intelligent mode of chiller


S&A Teyu recirculation water chiller CWFL-1500 for cooling 1500W metal fiber laser cutter

S&A Teyu water chiller CWFL-1500 for Raycus fiber laser welding machine


  CHILLER APPLICATION



water chillers application
