19-inch Rack-Mounted Chillers RMFL-1500 for Space-limited 3D Printing Equipment

19-inch Rack-Mounted Chillers RMFL-1500 for Space-limited 3D Printing Equipment

Precise temperature control is essential for achieving optimal performance in industrial 3D printing. Industrial chillers are crucial for maintaining stable thermal conditions within 3D printing equipment. By offering accurate temperature regulation, efficient heat dissipation, and reliable operation, industrial chillers ensure high-quality production, enhanced printing efficiency, and a longer lifespan for the equipment.

3D Printer Chiller RMFL-1500 is specifically designed for space-constrained industrial applications. Its rack-mountable design allows for easy stacking of equipment, offering increased flexibility and mobility. Equipped with a unique dual cooling channel and an intelligent control panel featuring multiple alarm protections, the RMFL-1500 delivers high efficiency, low energy consumption, and quiet operation. It's an environmentally friendly and reliable cooling solution for space-limited 3D printing systems, ensuring optimal performance and efficiency in demanding industrial environments.

Inquiry

Write a Review

Product Introduction

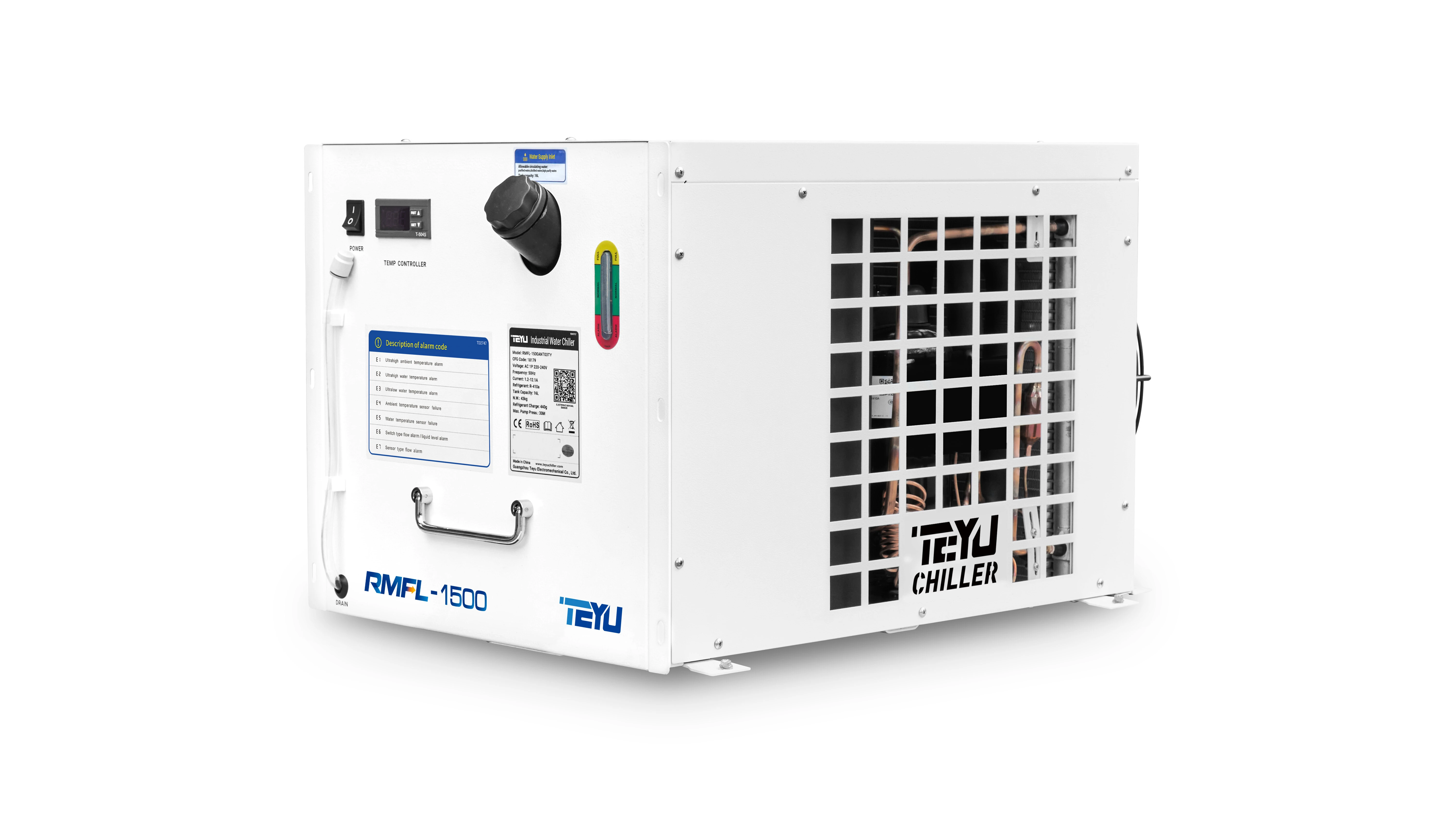

19-inch Rack-Mounted Chillers for Space-limited 3D Printing Equipment

Model: RMFL-1500

Machine Size: 75 X 48 X 43cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	RMFL-1500ANT03TY	RMFL-1500BNT03TY
Voltage	AC 1P 220-240V	AC 1P 220-240V
Frequency	50Hz	60HZ
Current	1.2~11.6A	1.2~11.7A
Max. power consumption	2.53kW	2.45kW
Compressor power	1.18kW	1.08kW
Compressor power	1.56HP	1.44HP
Refrigerant	R-32/R-410A	R-410A
Precision	±0.5℃
Reducer	Capillary
Pump power	0.26kW
Tank capacity	16L
Inlet and outlet	Φ6+Φ12 Fast connector
Max. pump pressure	3bar
Rated flow	2L/min+＞12L/min
N.W.	43Kg
G.W.	55Kg
Dimension	75 X 48 X 43cm (L X W X H)
Package dimension	88 X 58 X 61cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Precise Temperature Control: Maintains stable and accurate cooling to prevent overheating, ensuring consistent print quality and equipment stability.

* Efficient Cooling System: High-performance compressors and heat exchangers effectively dissipate heat, even during long print jobs or high-temperature applications.

* Real-Time Monitoring & Alarms: Equipped with an intuitive display for real-time monitoring and system fault alarms, ensuring smooth operation.

* Energy-Efficient: Designed with energy-saving components to reduce power consumption without sacrificing cooling efficiency.

* Compact & Easy to Operate: Space-saving design allows for easy installation, and user-friendly controls ensure simple operation.

* International Certifications: Certified to meet multiple international standards, ensuring quality and safety in diverse markets.

* Durable & Reliable: Built for continuous use, with robust materials and safety protections, including overcurrent and over-temperature alarms.

* 2-Year Warranty: Backed by a comprehensive 2-year warranty, ensuring peace of mind and long-term reliability.

* Wide Compatibility: Suitable for various 3D printers, including SLS, SLM, and DMLS machines.

Optional Items

Heater

Water filter

US standard plug / EN standard plug

Product Details

Temperature Controller T-506E of 3D Printer Chiller RMFL-1500

Dual temperature control

Intelligent temperature controller. Controlling the temperature of the fiber laser and optics at the same time.

Front mounted water fill port and drain port

The water fill port and drain port are mounted in the front for easy water filling and draining.

Integrated Handles of 3D Printer Chiller RMFL-1500

Integrated front handles

The front-mounted handles help move the chiller very easily.

Certificate

Product Working Principle

Working Principle of 3D Printer Chiller RMFL-1500

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
