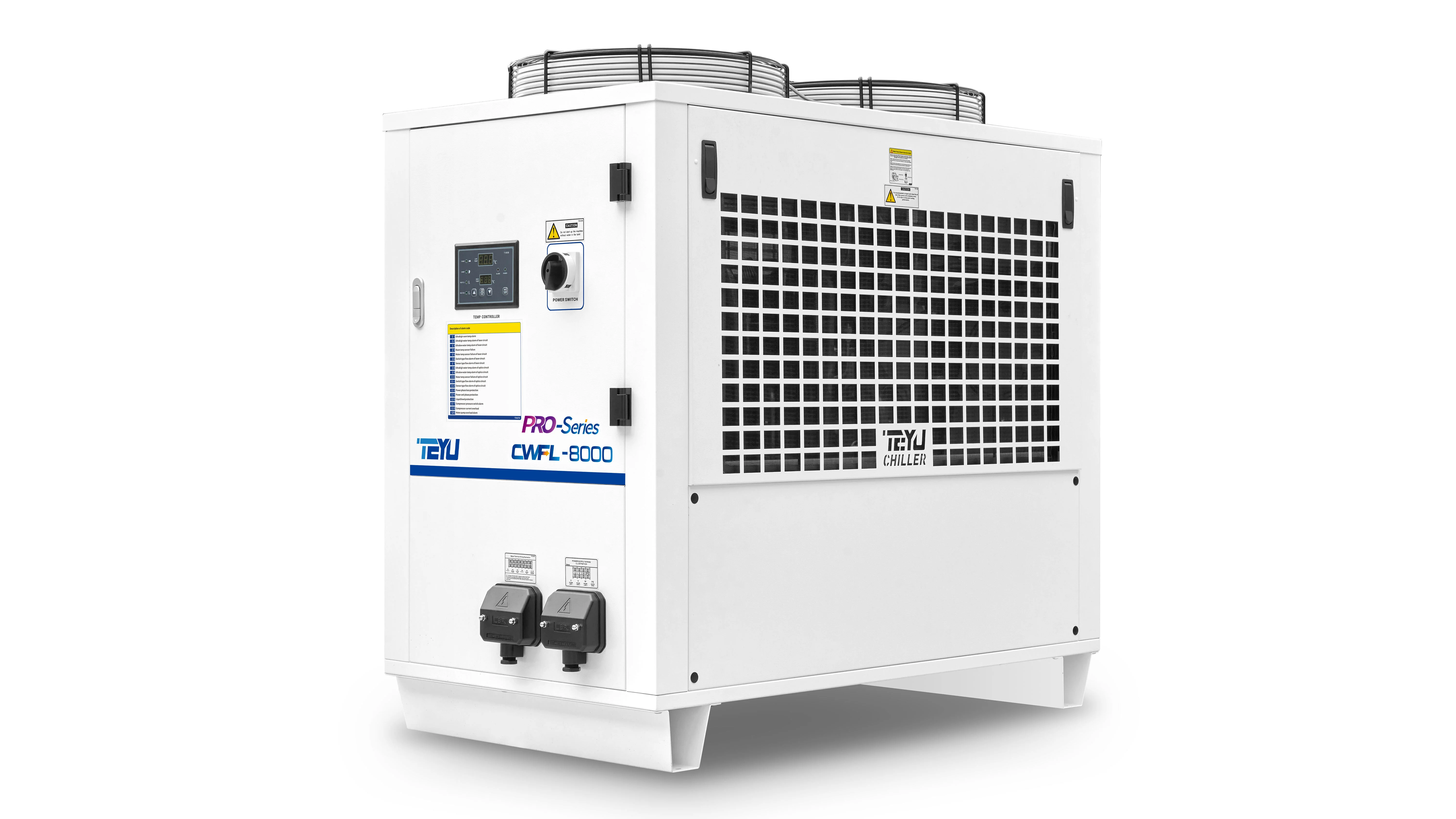

Industrial Water Chiller Unit CWFL-8000 for 8kW Fiber Laser

Industrial Water Chiller Unit CWFL-8000 for 8kW Fiber Laser

TEYU industrial water chiller unit CWFL-8000 is often used to mitigate the heat that is generated in the fiber laser machine up to 8KW. Thanks to its dual temperature control circuit design, both the fiber laser and the optics can be perfectly cooled. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life.

The water tank of industrial laser processing chiller CWFL-8000 is made of stainless steel with a 87L capacity while a fan-cooled condenser features superior energy efficiency. Available in 380V 50HZ or 60hz, chiller CWFL-8000 works with Modbus-485 communication, allowing a higher level of connection between the chiller and the laser system. A variety of built-in alarm devices to further protect the chiller and laser equipment, making the operation safer and reducing losses caused by incorrect operation.

Inquiry

Write a Review

Product Introduction

Industrial Water Cooling System CWFL-8000 for 8KW Fiber Laser Machine

Model: CWFL-8000

Machine Size: 120x64x116cm (L x W x H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-8000ENPTY	CWFL-8000FNPTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	2.1~22.2A	2.1~21.3A
Max. power consumption	11.54kW	11.4kW
Heater power	0.6kW+2.4kW
Precision	±1℃
Reducer	Capillary
Pump power	1.1kW	1kW
Tank capacity	87L
Inlet and outlet	Rp1/2"+Rp1"
Max. pump pressure	6.15bar	5.9bar
Rated flow	2L/min+＞65L/min
N.W.	198Kg	200Kg
G.W.	226Kg	228Kg
Dimension	120x64x116cm (L x W x H)
Package dimension	141x84x137cm (L x W x H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant:R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V

Optional Items

Heater

Filter

Product Details

Industrial Water Cooling System CWFL-8000 temperature control

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

TEYU CWFL-8000 Laser Chiller Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

TEYU CWFL-8000 Laser Chiller Drain Port With Valve

Easy drain port with valve

Draining process can be controlled very easily.

Ventilation Distance

TEYU Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-8000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
