Chillers for cnc router and co2 laser machines

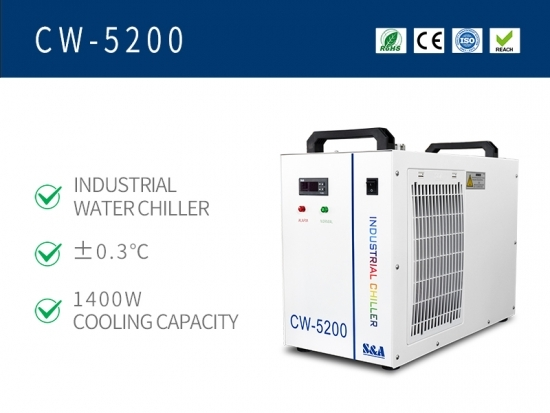

S&A brand CW-5200 chiller is fit for cooling cnc router and co2 laser machines. Its cooling capacity up to 1.4KW , ±0.3℃ temperature control precision and temperature control range in 5-35℃.
  • Item NO.:

    CW-5200
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    1400W
  • Precision:

    ±0.3°C
  • Voltage:

    110/220V
  • Frequency:

    50/60Hz
  • Refrigerant:

    R-22/R-410a
  • Reducer:

    capillary
  • Pump power:

    0.03KW/0.05KW/0.1KW
  • Tank capacity:

    6L
  • Max.pump lift:

    10M/12M/25M
  • Max.pump flow:

    10L/min, 13L/min, 16L/min
  • N.W:

    26Kgs
  • G.W:

    29Kgs
  • Dimension:

    58*29*47(L*W*H)
  • Package dimension:

    70*43*68(L*W*H)
Inquiry now

Chiller For Co2 Laser

S&A brand CW-5200 chiller is fit for cooling cnc router and co2 laser machines. Its cooling capacity up to 1.4KW , ±0.3℃ temperature control precision and temperature control range in 5-35℃. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.


THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.



  Co2 chiller units features

1. 1400W cooling capacity; use environmental refrigerant;

chiller performance curve

2. Compact size, long working life and simple operation;
3. ±0.3°C precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;  with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;

7. Optional heater and water filter.


  Specification


One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.


co2 chillers specification

 Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona.


  CONTOUR AND PARTS INTRODUCTION

co2 water chillers CONTOUR AND PARTS


Independent production of sheet metal,evaporator and condenser

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.
 IPG fiber laser cutting metal of chiller


Ease  of  moving  and  water  filling

The firm handle can help move the water chillers easily.
chillers easy moving


Inlet  and  outlet  connector  equipped

Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.


Cooling fan of famous brand installed.

Level gauge equipped.
Adopt SAN JU cooling fan with high quality and low failure rate.
 chillers CW 5000 fan


Customized dust gauze available and easy to take apart.

chiller dust gauze





  Identify Teyu(S&A) authentic chiller


All of S&A water chillers are certified with design patent. Counterfeiting is not allowed.
Please recognize S&A logo when you purchase S&A water chillers.
Components carry “S&A” brand logo. It is an important identification distinguishing from counterfeit machine.
S&A water chillers logo


  More than 3,000 manufacturers choosing Teyu (S&A)

chiller workshop


  The reasons of quality guarantee of Teyu (S&A) chiller

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.
water chiller compressor


Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

water chiller evaporator


Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

chiller condenser


Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A

S&A chiller

Small Portable Chiller CW-5200

S&A cw5200 industrial water chillers application



Chiller Application

CW5000 CHILLER APPLICATON
