Heater
Filter
US standard plug / EN standard plug

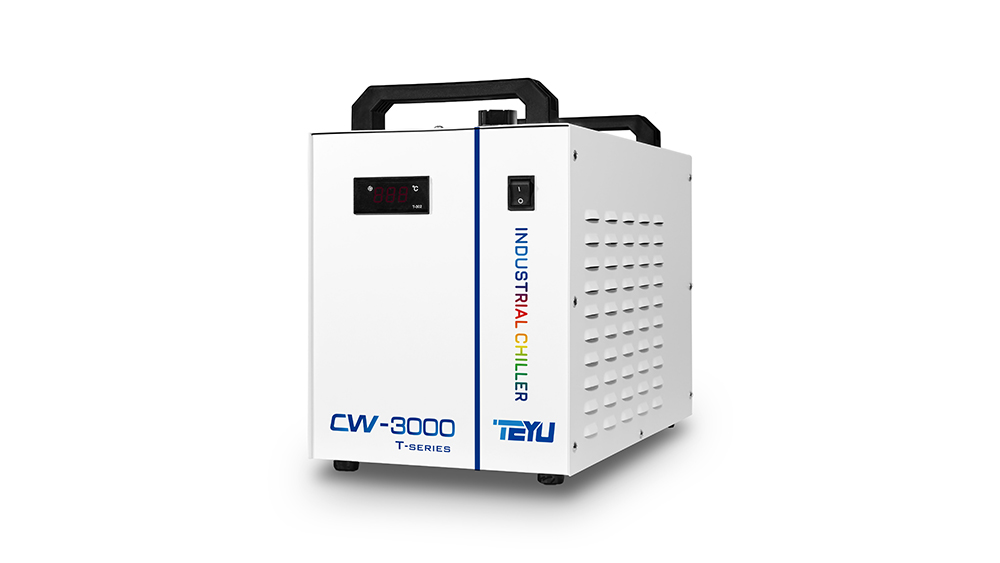

TEYU spindle chiller CW-3000 is a perfect solution to enhance the performance of 1500W CNC cutting machine spindle. Being affordable and easy to operate, this passive cooling chiller can dissipate the heat from the spindle effectively while at the same time consuming less energy than its counterparts. It features a heat dissipation capacity of 50W/℃, which means it can absorb 50W of heat by rising 1°C of water temperature. Although CW-3000 industrial chiller is not equipped with compressor, effective heat exchange can be guaranteed thanks to a high speed fan inside.
Industrial chiller CW-3000 integrates top mount handle for easy portability. The digital temperature display can indicate temperature and alarm codes. With excellent heat dissipation capability, cost-effective price, small size and lightweight, portable chiller CW3000 has become the favorite cooler of small cnc machining.
Model: CW-3000
Machine Size: 49X27X38cm (L X W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
Model | CW-3000TGTY | CW-3000DGTY | CW-3000TKTY | CW-3000DKTY |
Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V |
Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz |
Current | 0.4~0.7A | 0.4~0.9A | 0.3~0.6A | 0.3~0.8A |
Max. power consumption | 0.07kW | 0.11kW | ||
Radiating capacity | 50W/℃ | |||
Max. pump pressure | 1bar | 7bar | ||
Max. pump flow | 10L/min | 2L/min | ||
Protection | Flow alarm | |||
Tank capacity | 9L | |||
Inlet and outlet | OD 10mm Barbed connector | 8mm Fast connector | ||
N.W. | 9Kg | 11Kg | ||
G.W. | 11Kg | 13Kg | ||
Dimension | 49X27X38cm (L X W X H) | |||
Package dimension | 55X34X43cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Heat dissipation capacity: 50W/℃, meaning it can absorb 50W of heat by rising 1°C of water temperature;
* Passive cooling, no refrigerant
* High speed fan
* 9L reservoir
* Digital temperature display
* Built-in alarm functions
* Easy operation and space-saving
* Low energy and environmental
Heater
Filter
US standard plug / EN standard plug
High speed fan
The high speed fan is installed to ensure high cooling performance.
Integrated top mounted handle
The firm handles are mounted on top for easy mobility.

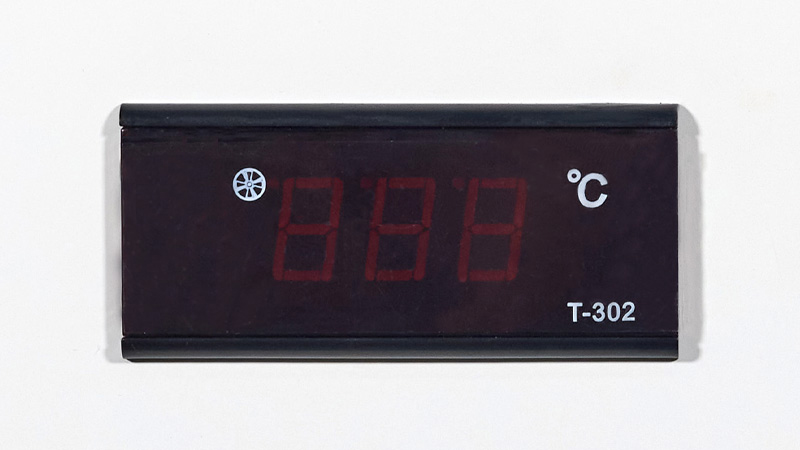

Digital temperature display
The digital temperature display is able to indicate water temperature and alarm codes.
