CW5200 industrial chiller for turbomolecular pump

Persisting in the principle of holding responsibility to ourselves and customers, Teyu is trying the best to satisfy the customer’s requirement and provide feasible suggestion to reach a win-win situation.


  Upon contacting Teyu, the customer had already sent the cooling requirement and the technical data sheet of HIPACE400 turbomolecular pump that would be cooled to us via email. The preliminary choice made by the customer was CW-3000AF water chiller. However they also wished to receive some professional suggestion or recommendation from Teyu.

  In order to cool their turbomolecular pump, the water chiller must meet the following conditions: 1KW cooling capacity at a target water temperature of 25°C and an ambient temperature of 25°C, a temperature range from 18°C to 35°C and a water flow rate of 2L/min. As S&A CW-3000AF water chiller cannot satisfy the cooling requirement of HIPACE400 turbomolecular pump in terms of temperature range, Teyu sincerely recommends  CW-5200AIS water chiller that is the most suitable to them as our responsibility to the customer .

 There is feasibility for Teyu to recommend CW-5200AIS water chiller to cool HIPACE400 turbomolecular pump. After the careful consideration, the customer finally chose CW-5200AIS water chiller.

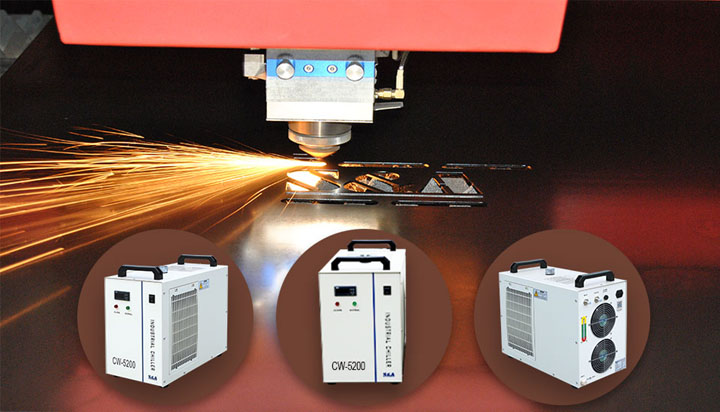

S&A recirculating industrial water chillers CW-5200 are able to cool a single 130W CO2 laser tube or a single 8KW CNC spindle or a single 50W-75W laser diode or a single15W-30W solid-state laser or a single 30W RF laser tube.

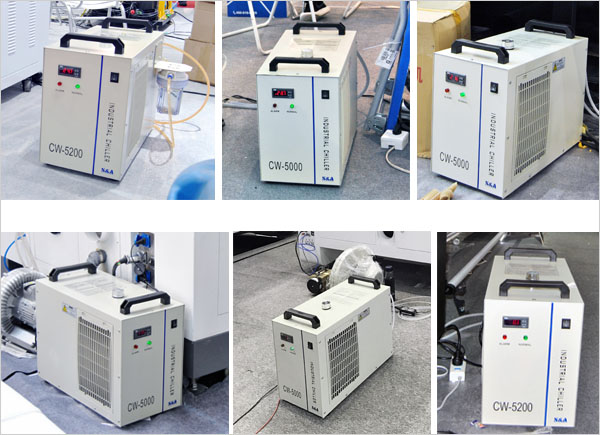

S&A CW-5200 is refrigeration type air cooled water chiller of 1400W cooling capacity.  The water temperature is able to be adjusted as needed. There are 2 specifications as 1 water outlet/inlet and dual water outlet/inlet, applicable to cool single or dual laser glass tube.

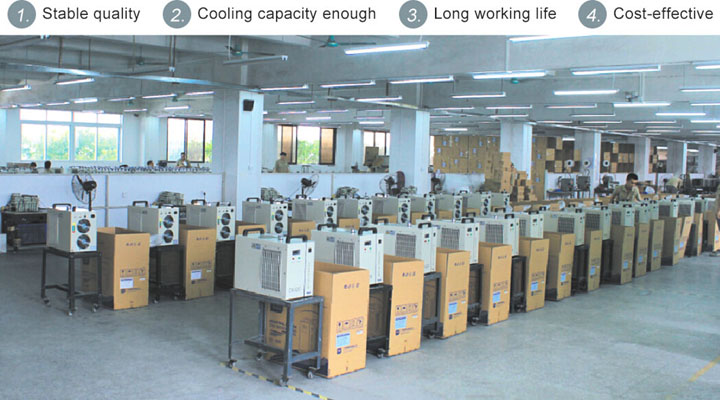

S&A water chiller covers 50% of market share of the CO2 laser refrigeration industry with annual sales amount of 30,000 units. After 16-year development, S&A has become a well-known and popular brand in laser cooling industry.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

1. 1400W cooling capacity; use environmental refrigerant;

7. Optional heater and water filter.

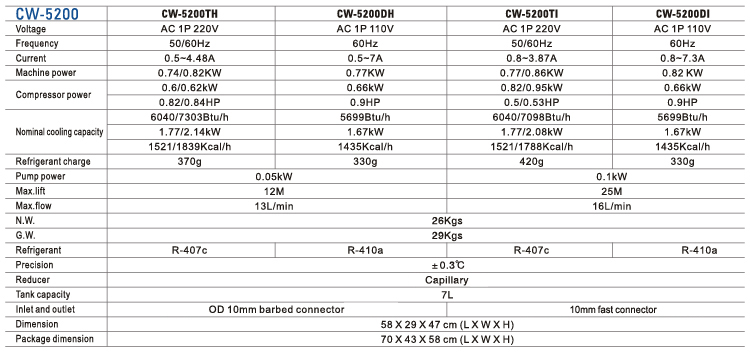

  Specification

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

 Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona.

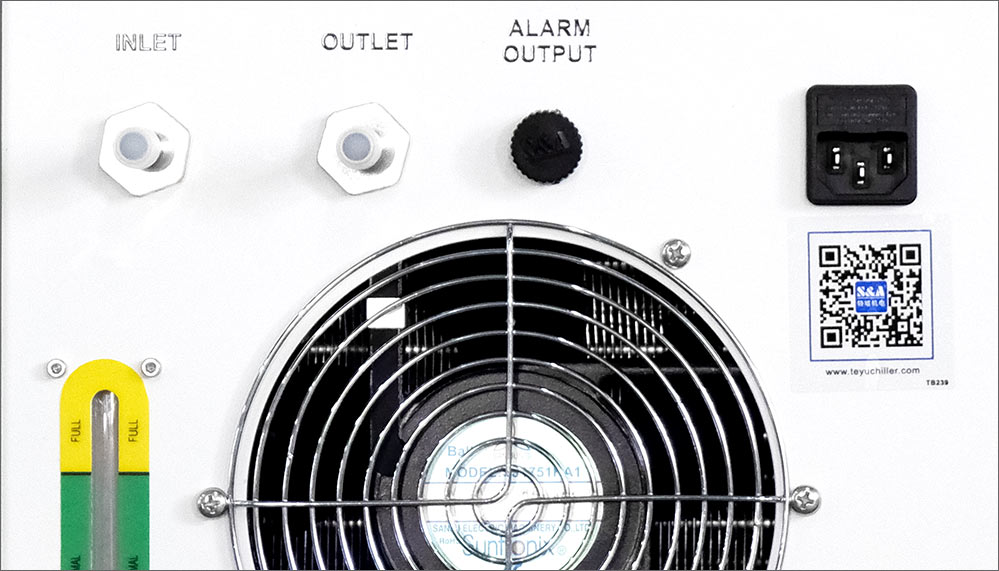

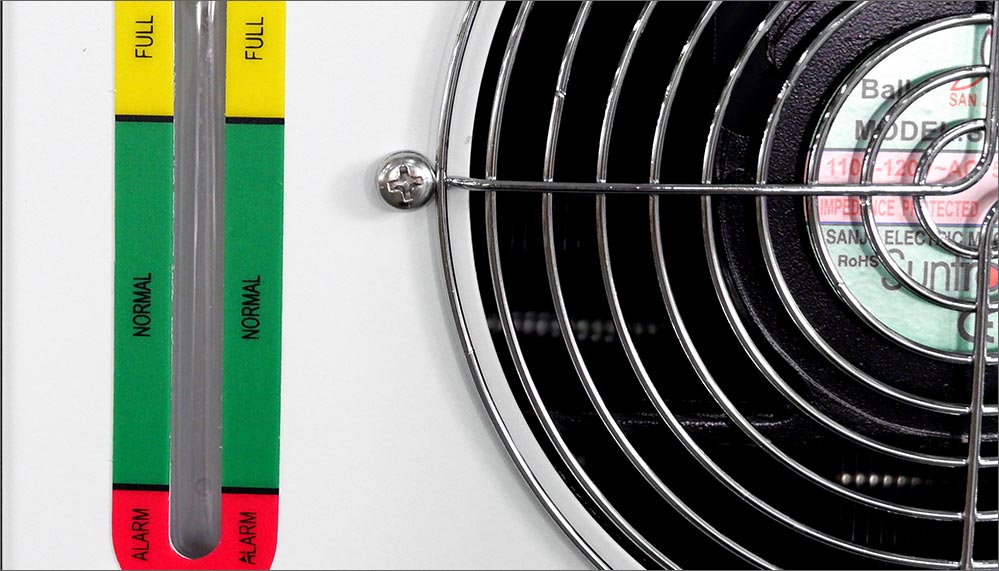

  CONTOUR AND PARTS INTRODUCTION

Independent production of sheet metal,evaporator and condenser

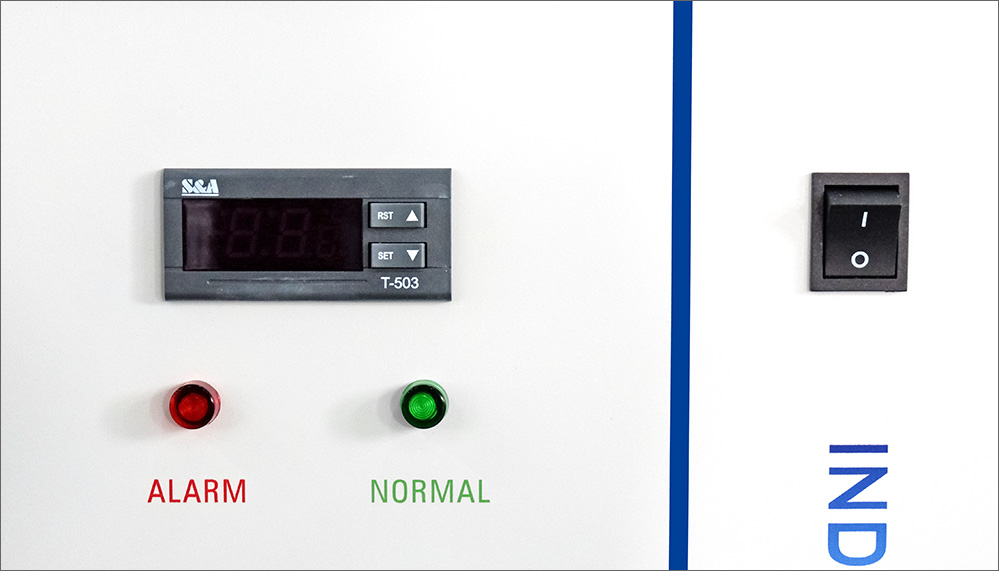

High precision temperature control system

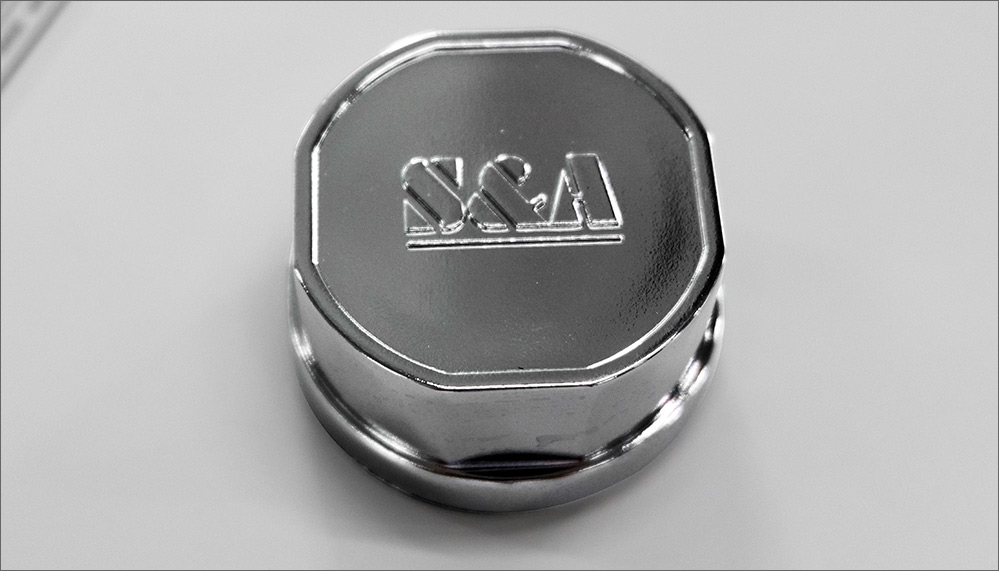

  Identify Teyu(S&A) authentic chiller

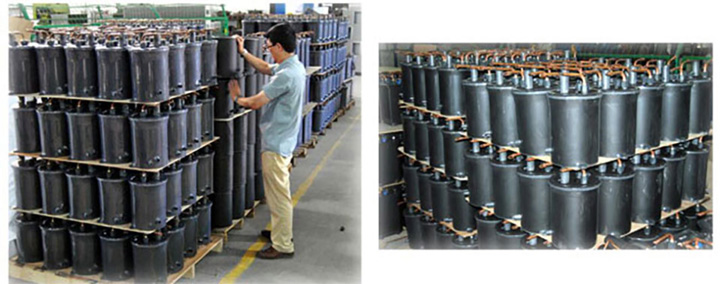

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

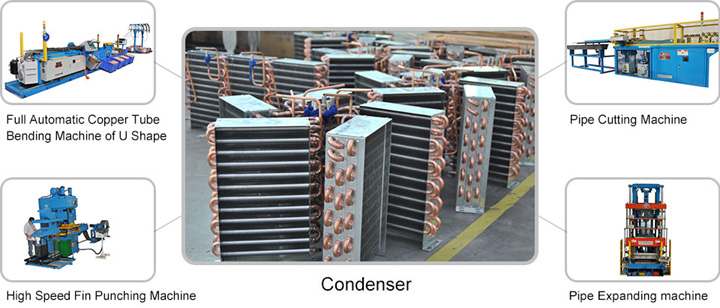

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A
