Product Description

fiber laser chiller

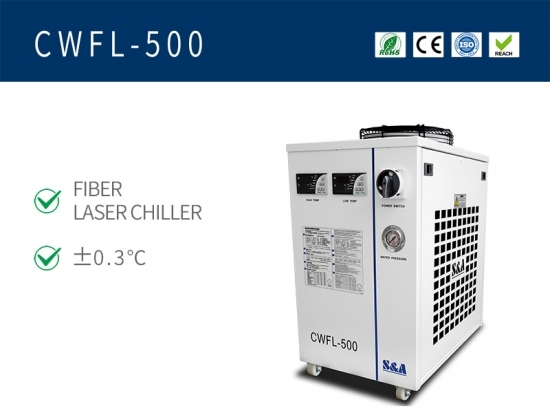

S&A Teyu CWFL-500 dual temperature water chillers  specially designed for cooling 500W fiber lasers are so multi-functional that the fiber laser and laser head can be cooled by the low temperature control system and the high temperature control system respectively at the same time, which can greatly reduce the generation of the condensed water and save cost & space.




  Fiber laser chillers features
1. With environmental refrigerant;
2. ±0.3℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser and the laser head;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;
8. Optional heater and water filter.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.


  Dual recirculation water chillers specification

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


  PRODUCT INTRODUCTION


Independent production of sheet metal, evaporator and condenser

Adopt IPG fiber laser for welding and cutting sheet metal.

High precision temperature control system with dual temperature control function

Temperature control accuracy can reach ±0.3℃. High temp. for QBH connector/optics and low temp. for laser device.

Multiple alarm protection

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.


temperature controller



Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.
 drain outlet


Dual inlet and dual outlet connector equipped.

Water Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.


water inlet & outlet


Level gauge equipped

water level gauge


Cooling fan of famous brand installed.

With high quality and low failure rate.
cooling fan


Customized dust gauze available and easy to take apart




  TEMPERATURE CONTROLLER PANEL DESCRIPTION

S&A Teyu industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.


Suggestion:
Intelligent temperature control mode for QBH connector/optics
Constant temperature control mode for laser device


water chiller temp controller

Temperature controller panel description:

  Alarm function
(1)  Alarm Display:
500W fiber laser chiller alarm display
When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.


  ALARM AND OUTPUT PORTS

In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CWFL-500 series chillers possess alarm protection function.
1. Alarm output terminals and wiring diagram.
cwfl500 chillers ALARM AND OUTPUT PORTS
2. Alarm causes and working status table.
water chillers Alarm causes and working status

Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.


  CHILLER APPLICATION




water CHILLER APPLICATION







  WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop


  TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM



Video

Refrigeration Industrial Water Chiller CWFL -500

How to adjust the water temperature for T-506 intelligent mode of chiller


S&A Teyu dual temp chiller CWFL-500 for 500W thin metal fiber laser cutting machine

S&A Teyu fiber laser water chiller CWFL-500 helps 500W fiber laser achieve fast cooling



  CHILLER APPLICATION



water CHILLER APPLICATION
