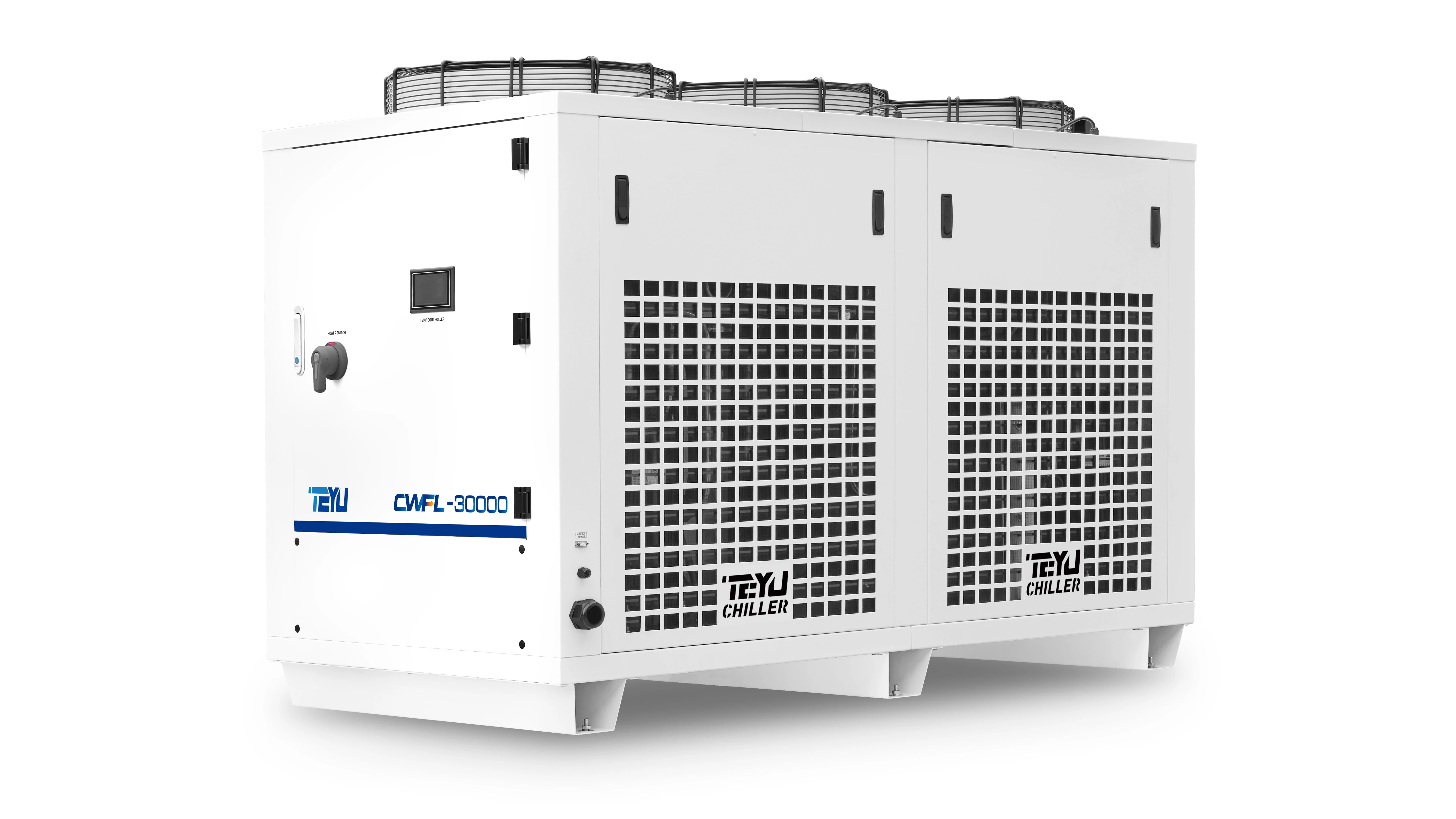

High Performance Laser Cooling Machine CWFL-30000 for 30kW Fiber Laser Equipment

High Performance Laser Cooling Machine CWFL-30000 for 30kW Fiber Laser Equipment

TEYU laser cooling machine CWFL-30000 is a high-performance laser cooling unit specially designed by TEYU chiller manufacturer, which offers advanced features while also making 30kW fiber laser equipment cooling easier and more efficient. With dual refrigeration circuit, this recirculating water chiller has enough capacity to cool the fiber laser and the optics independently and simultaneously. All of the components are carefully selected to ensure reliable operation.

High-performance industrial water chiller CWFL-30000 provides an RS-485 interface for communication with the fiber laser system. A smart temperature controller is installed with advanced software to optimize the water chiller's performance. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. A variety of built-in alarm devices to further protect the chiller and laser equipment.

Inquiry

Write a Review

Product Introduction

Laser Cooling Machine CWFL-30000 for 30KW High Performance Fiber Laser

Model: CWFL-30000

Machine Size: 207X96X146cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-30000ETTY	CWFL-30000FTTY
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50Hz	60Hz
Current	10.6~64.3A	15.8~67.4A
Max. power consumption	33.6kW	37.65kW
Heater power	1.8kW+7.5kW
Precision	±1.5℃
Reducer	Capillary
Pump power	3.5kW+3.5kW	3kW+3kW
Tank capacity	250L
Inlet and outlet	Rp1/2”+ Rp1-1/4”*2
Max. pump pressure	8.5bar	8.1bar
Rated flow	10L/min+＞300L/min
N.W.	540Kg
G.W.	710Kg
Dimension	207X96X146cm (L X W X H)
Package dimension	222X114X169cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-32 / R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V

* Available in SGS-certified version, equivalent to UL standard.

Optional Items

Heater

Filter

Product Details

TEYU CWFL-30000 Laser Chiller Temperature Controller

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

TEYU CWFL-30000 Laser Chiller Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

TEYU laser chiller drain port with valve

Easy drain port with valve

Draining process can be controlled very easily.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-30000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
