Product Description

water chiller system

Industrial air cooled water chiller machine CW-6100 is applicable to cool water EDM machine and its cooling performance is excellent


S&A Teyu industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.



  Water chiller equipment features
1. 4200W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;
6. Optional heater and water filter

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.

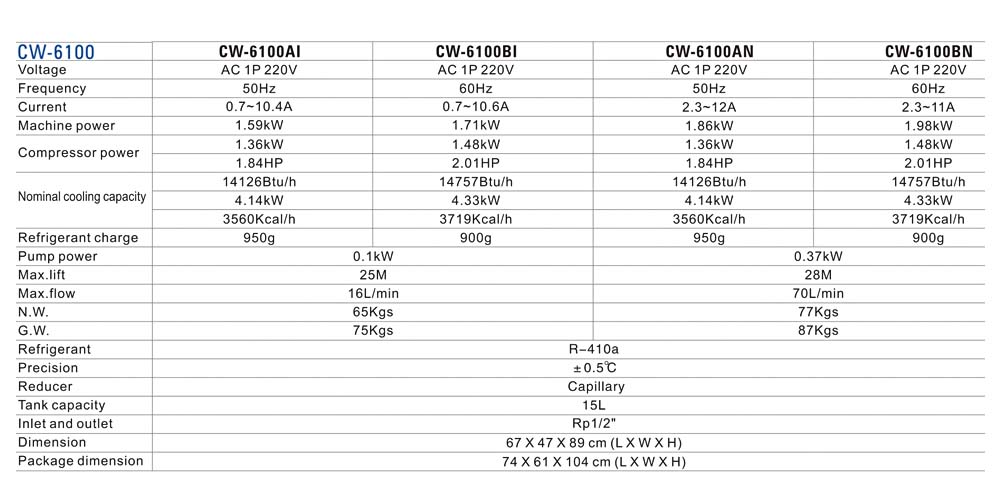

  Industrial water chiller systems specification

CW-6100: Applied to cool co2 glass laser tube
CW-6100: Applied to cool co2 metal RF laser tube or solid-state laser or semiconductor laser or  fiber laser or CNC spindle;
CW-6102: Dual inlet and outlet series (option); heating device (option); filter(option)


Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


  PRODUCT INTRODUCTION




Independent production of sheet metal, evaporator and condenser

Multiple alarm protection.
Adopt IPG fiber laser for welding and cutting sheet metal. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
temperature controller

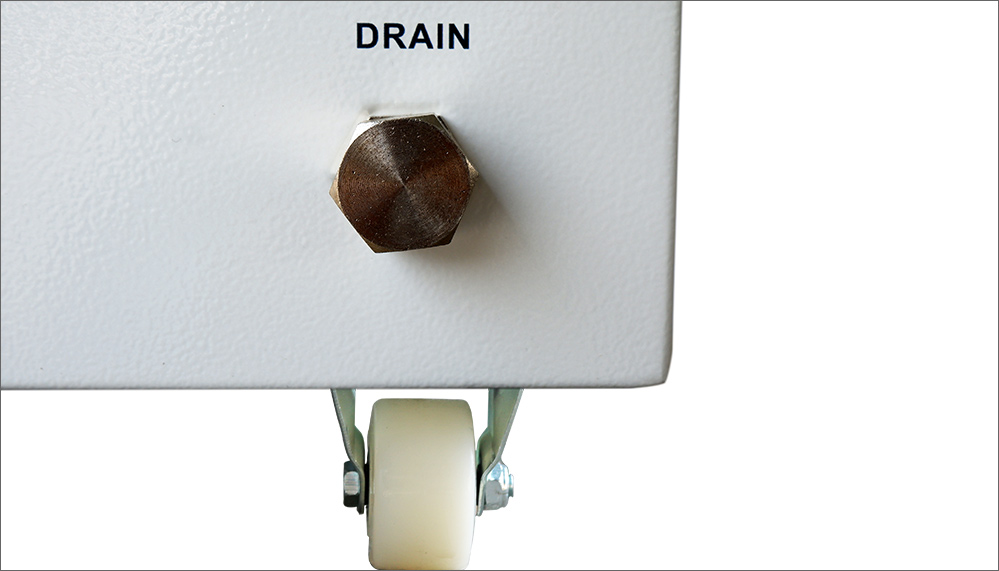

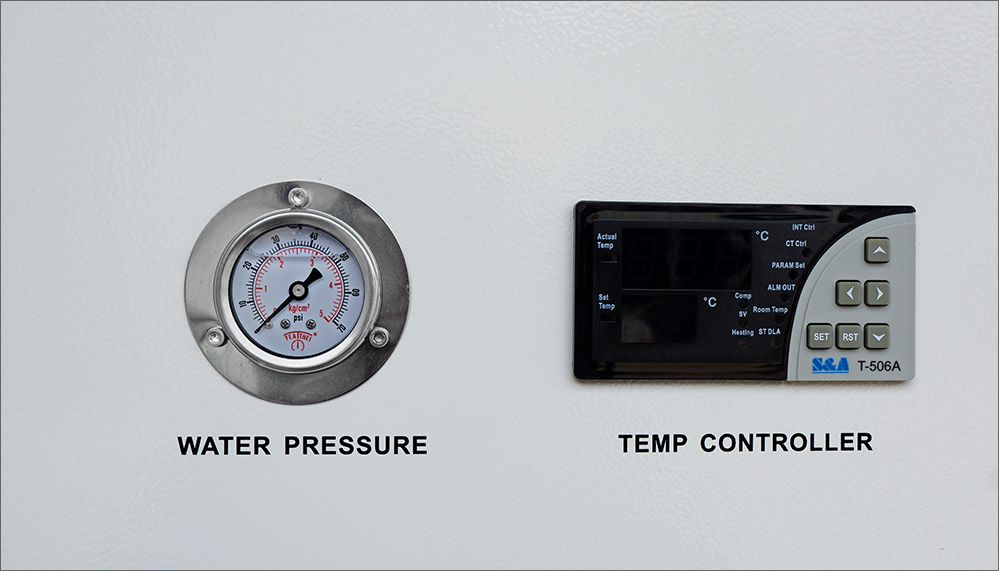

Equipped with water pressure gauges and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.
water pressure gauge & universal wheel

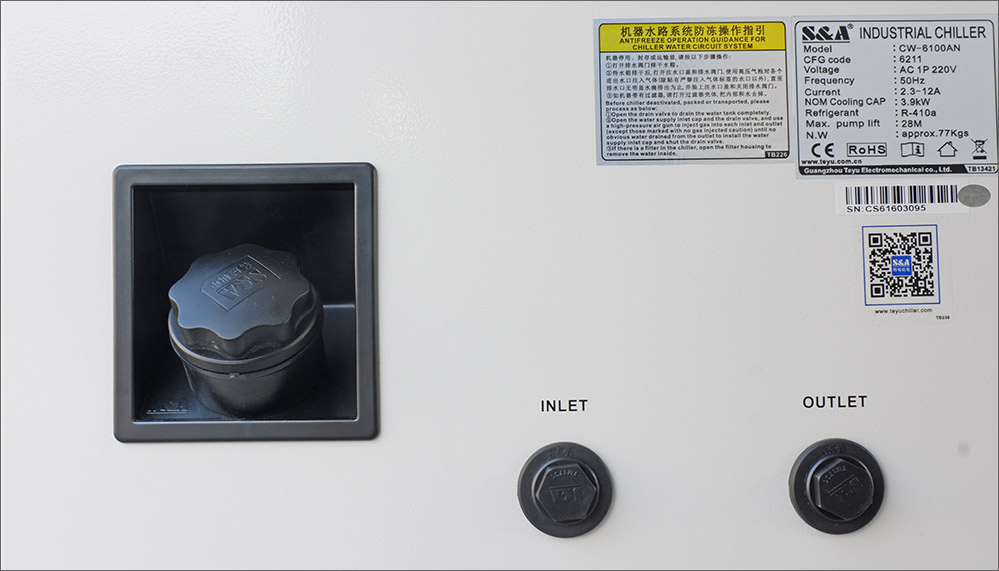

Inlet and outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

inlet & outlet

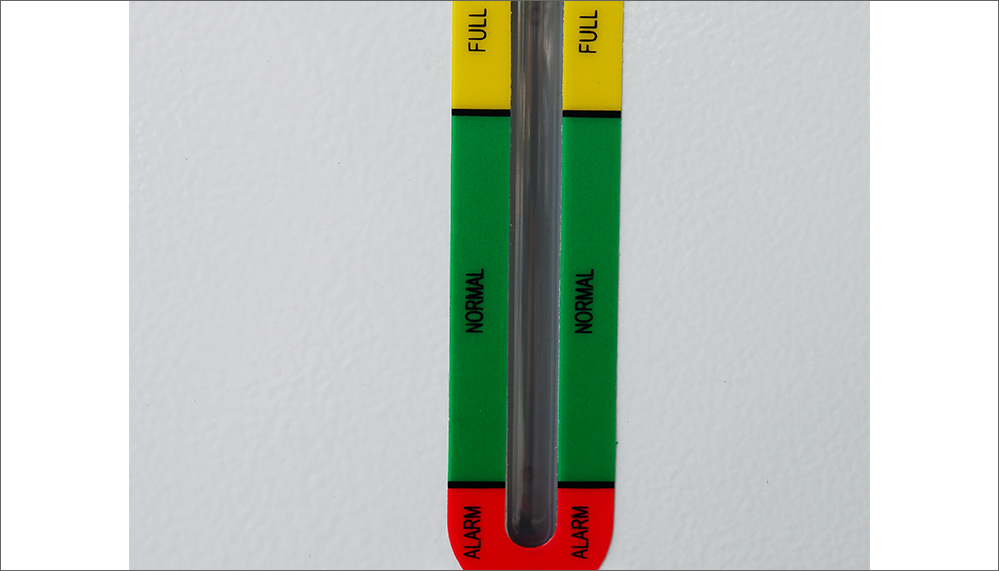

Level gauge equipped.

water level gauge

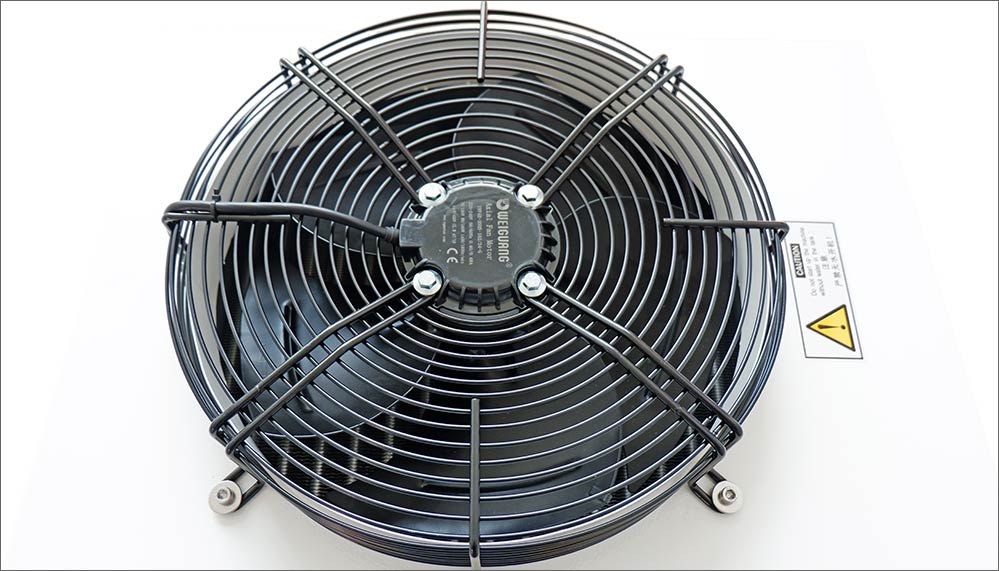

Cooling fan of famous brand installed.

With high quality and low failure rate.
cooling fan


Customized dust gauze available and easy to take apart.

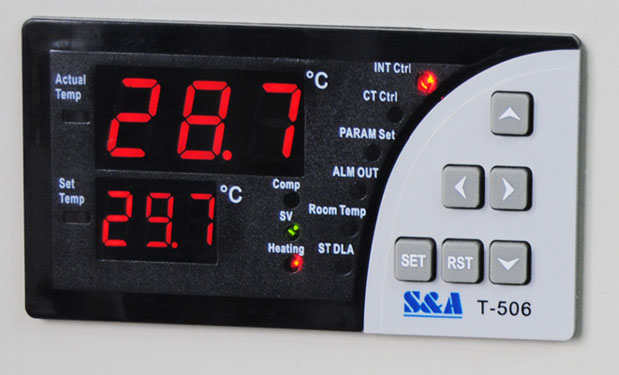

  TEMPERATURE CONTROLLER PANEL DESCRIPTION

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.

User also can adjust the water temperature as needed.

chiller temp controller

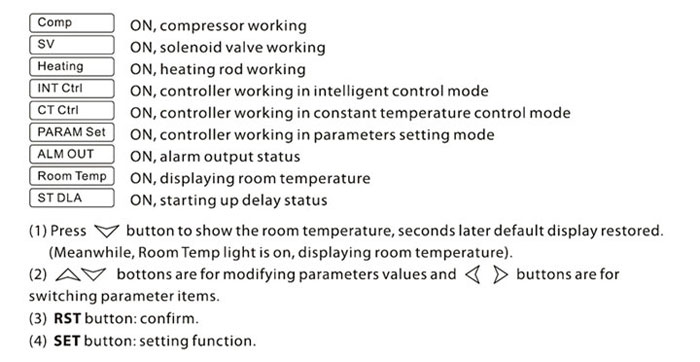

Temperature controller panel description: CHILLERS TEMPERATURE CONTROLLER PANEL


  Alarm function

(1)  Alarm Display:


E1 - ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input
E7 - water flow alarm input

When alarm occurs, the error code and the temperature will be alternately displayed.
(2) To suspend the alarm:
In alarming state, the alarm sound could be suspended by pressing any button, but the alarm display remains until the alarm condition is eliminated.

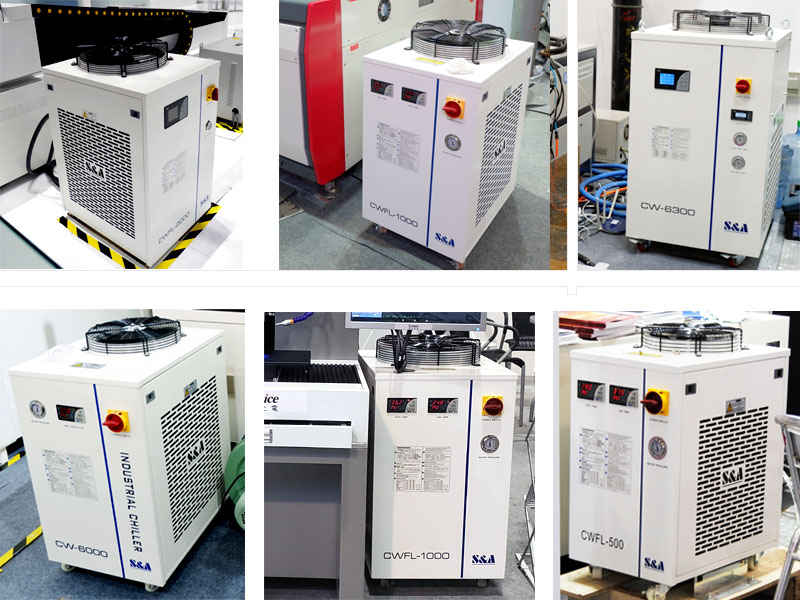

  CHILLER APPLICATION

 water chillers application

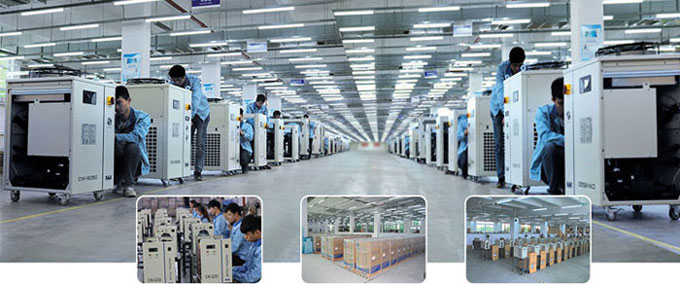

  WAREHOUSE

18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop

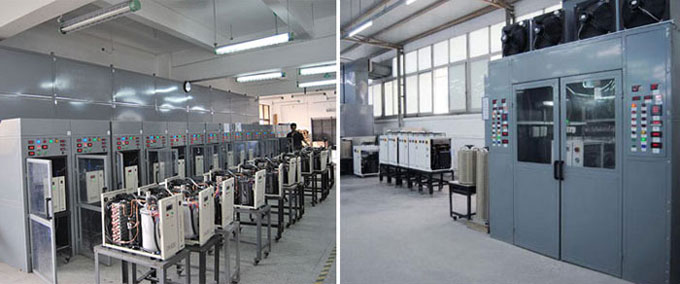

  TEST SYSTEM

With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM


Video

S&A Teyu water cooling chiller machine CW-6100 video

How to adjust the water temperature for T-506 intelligent mode of chiller

S&A Teyu water chiller CW-6100 for cooling fiber cutting machine

S&A Teyu water chiller CW-6100 for sheet metal laser cutting machine
