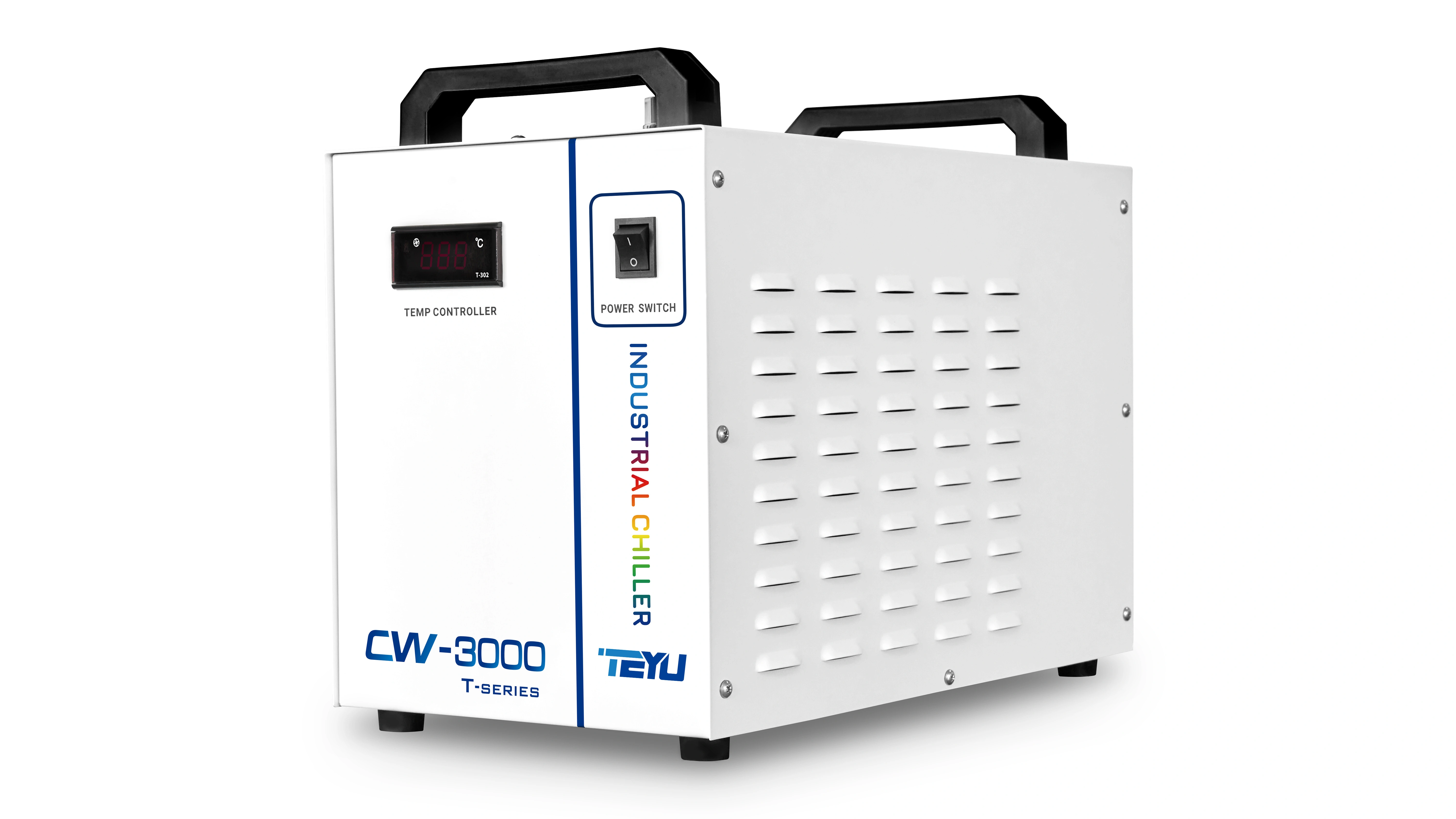

Mini Industrial Chiller CW-3000 for CO2 Laser Engraving Machine

Mini Industrial Chiller CW-3000 for CO2 Laser Engraving Machine

TEYU mini industrial chiller CW-3000 is a basic passive cooling solution suitable for ≤80W CO2 laser engraver powered by DC glass tube. Featuring a heat dissipation capacity of 50W/℃ and a 9L reservoir, this small chiller can radiate the heat from the laser tube very effectively. It's designed with a high-speed fan inside without compressor to reach heat exchange in a simple structure with high reliability.

Air cooled industrial chiller CW-3000 is compact and reliable, the dimension is only 49X27X38cm (L X W X H), which provides efficient cooling while saving a lot of space for laser users. Integrated top mount handle for easy portability. The digital temperature display is able to indicate temperature and alarm codes. With excellent heat dissipation capability and cost-effective price, portable CW 3000 industrial chiller has become the favorite of ≤80W CO2 laser engraving machine users.

Inquiry

Write a Review

Product Introduction

Model: CW-3000

Machine Size: 49X27X38cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-3000TGTY	CW-3000DGTY	CW-3000TKTY	CW-3000DKTY
Voltage	AC 1P 220~240V	AC 1P 110V	AC 1P 220~240V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60Hz	60Hz
Current	0.4~0.7A	0.4~0.9A	0.3~0.6A	0.3~0.8A
Max. power consumption	0.07kW		0.11kW
Radiating capacity	50W/℃
Max. pump pressure	1bar		7bar
Max. pump flow	10L/min		2L/min
Protection	Flow alarm
Tank capacity	9L
Inlet and outlet	OD 10mm Barbed connector		8mm Fast connector
N.W.	9Kg		11Kg
G.W.	11Kg		13Kg
Dimension	49X27X38cm (L X W X H)
Package dimension	55X34X43cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Heat dissipation capacity: 50W/℃, meaning it can absorb 50W of heat by rising 1°C of water temperature;

* Passive cooling, no refrigerant

* High speed fan

* 9L reservoir

* Digital temperature display

* Built-in alarm functions

* Easy operation and space-saving

* Low energy and environmental

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

High speed fan

The high speed fan is installed to ensure high cooling performance.

Integrated top mounted handle

The firm handles are mounted on top for easy mobility.

Digital temperature display

The digital temperature display is able to indicate water temperature and alarm codes.

Ventilation Distance

Mini industrial chiller CW-3000 Ventilation Distance

Certificate

Product Working Principle

Industrial chiller CW-3000 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
