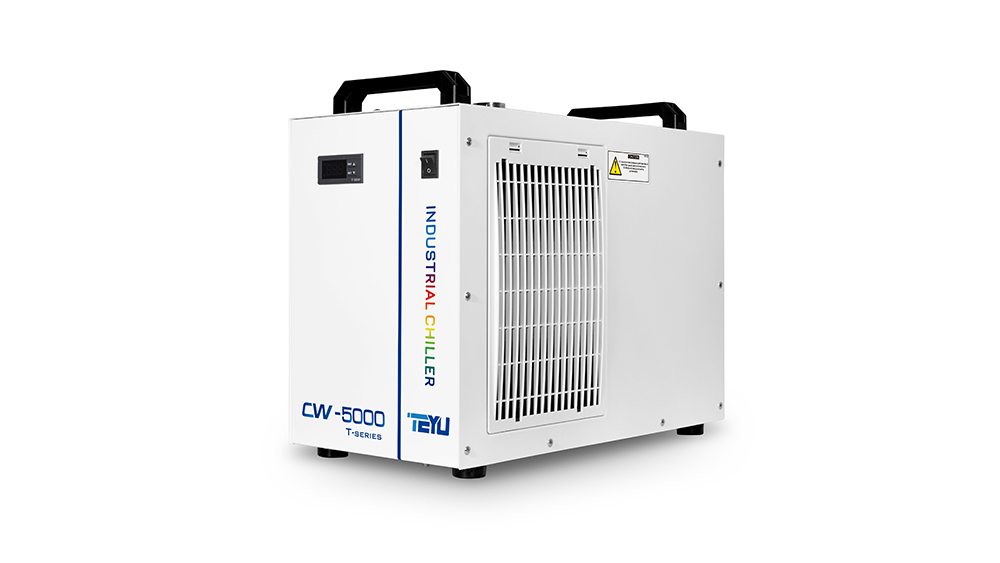

Industrial Water Chiller CW-5000 for CO2 Glass Laser Tube

Industrial Water Chiller CW-5000 for CO2 Glass Laser Tube

TEYU industrial chiller CW-5000 can provide perfect cooling for up to 120W CO2 DC laser tubes. This small water chiller has a small footprint, saving a lot of space for CO2 laser engraving and cutting machine users. The temperature control accuracy of the CW-5000 chiller is ±0.3°C with a cooling capacity of up to 750W. Mini laser chiller CW-5000 is capable of providing superior active cooling.

Industrial chiller CW-5000 has multiple choices of water pumps and optional 220V or 110V powers. Designed with intelligent temperature control function, this portable water chiller unit can keep your CO2 laser tube at a water temperature you preset, automatically adjusting the temperature for you to avoid the occurrence of condensate water.

Inquiry

Write a Review

Product Introduction

Model: CW-5000

Machine Size: 58X29X47cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CW-5000TGTY	CW-5000DGTY	CW-5000TITY	CW-5000DITY
Voltage	AC 1P 220-240V	AC 1P 110V	AC 1P 220-240V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60Hz	60Hz
Current	0.4~2.8A	0.4~5.2A	0.4~3.7A	0.4-6.3A
Max. power consumption	0.4/0.46kW	0.47kW	0.48/0.5kW	0.53kW
Compressor power	0.31/0.37kW	0.36kW	0.31/0.38kW	0.36kW
	0.41/0.49HP	0.48HP	0.41/0.51HP	0.48HP
Nominal cooling capacity	2559Btu/h
	0.75kW
	644Kcal/h
Pump power	0.03kW		0.09kW
Max. pump pressure	1bar		2.5bar
Max. pump flow	10L/min		15L/min
Refrigerant	R-134a
Precision	±0.3℃
Reducer	Capillary
Tank capacity	6L
Inlet and outlet	OD 10mm Barbed connector		10mm Fast connector

N.W.	18Kg		19Kg
G.W.	20Kg		23Kg
Dimension	58X29X47cm (L X W X H)
Package dimension	65X36X51cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 750W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-134a

* Compact, portable design and quiet operation

* High efficiency compressor

* Top mounted water fill port

* Integrated alarm functions

* Low maintenance and high reliability

* 50Hz/60Hz dual-frequency compatible available

* Optional dual water inlet & outlet

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

User-friendly control panel

The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

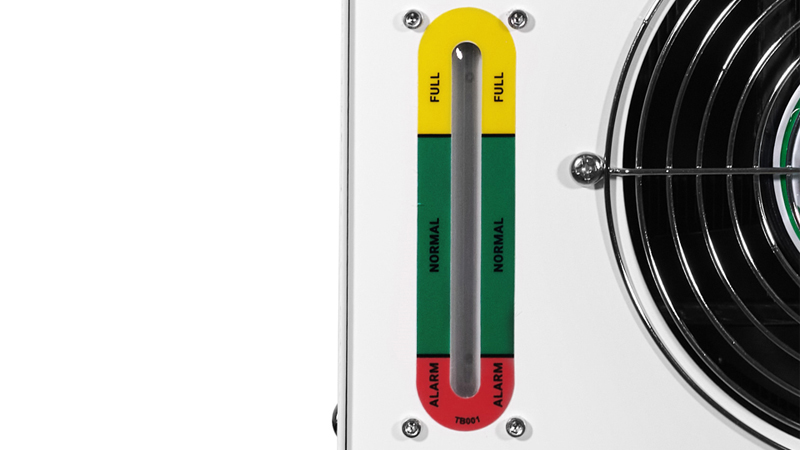

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.

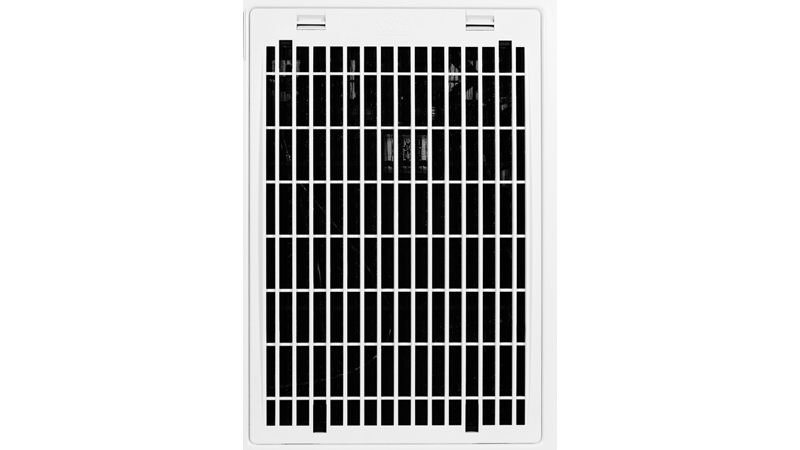

Dust-proof filter

Integrated with the grill of the side panels, easy mounting and removal.

Ventilation Distance

Industrial Water Chiller CW-5000 Ventilation Distance

Certificate

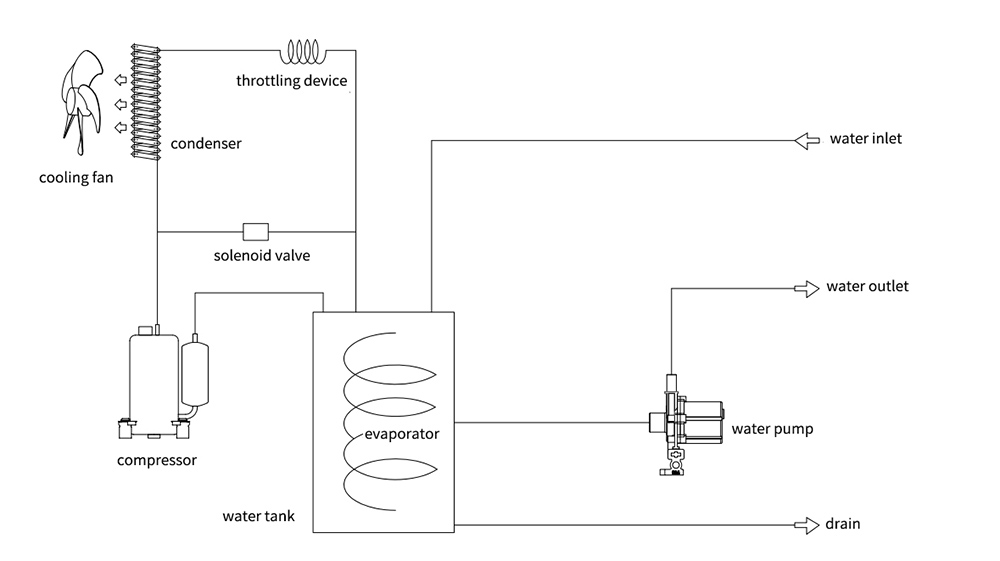

Product Working Principle

Industrial Water Chiller CW-5000 Product Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial water chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the industrial water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
