Industrial Process Chiller
VR
Product Introduction

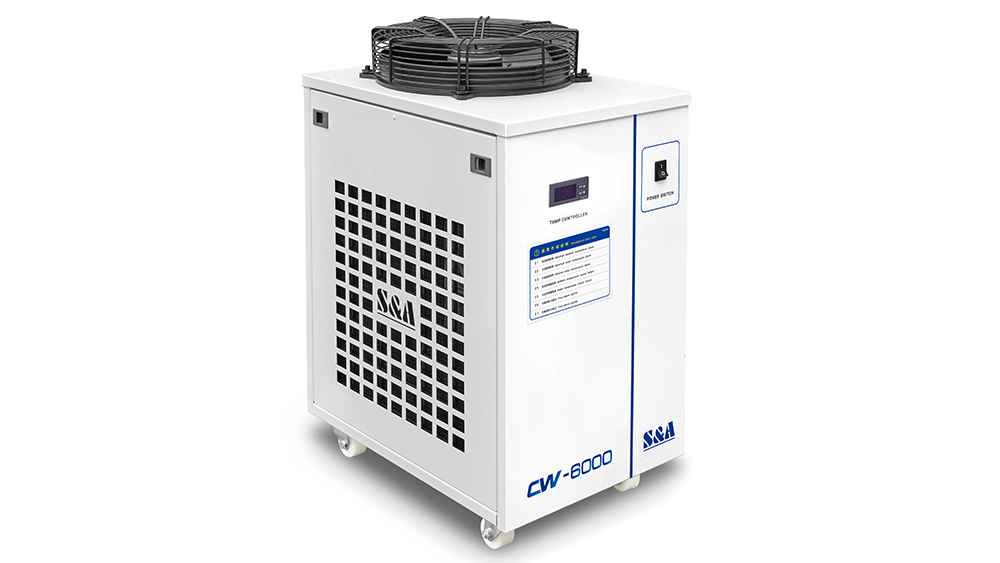

Model: CW-6000

Machine Size: 67 X 47 X 89cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters
ModelCW-6000AHCW-6000BHCW-6000DHCW-6000AICW-6000BICW-6000DICW-6000ANCW-6000BNCW-6000DN
VoltageAC 1P 220-240VAC 1P 220-240VAC 1P 110VAC 1P 220-240VAC 1P 220-240VAC 1P 110VAC 1P 220-240VAC 1P 220-240VAC 1P 110V
Frequency50Hz60Hz60Hz50Hz60Hz60Hz50Hz60Hz60Hz
Current0.5~7.2A0.5~6.6A0.5~13.5A0.8~7.5A0.8~6.9A0.8~13.8A2.3~9A2.1~8.2A5.7~18.7A
Machine power0.98kW1.23kW1.34kW1.03kW1.28kW1.39kW1.48kW1.55kW1.66kW

Compressor power

0.84kW0.83kW0.62kW0.84kW0.83kW0.62kW0.84kW0.83kW0.85kW
1.14HP1.47HP1.62HP1.14HP1.47HP1.62HP1.14HP1.47HP1.62HP


Nominal cooling capacity

11160Btu/h10717Btu/h11775Btu/h11160Btu/h10717Btu/h11775Btu/h11160Btu/h10717Btu/h11775Btu/h
3.27kW3.14kW3.45kW3.27kW3.14kW3.45kW3.27kW3.14kW3.45kW
2811Kcal/h2700Kcal/h2966Kcal/h2811Kcal/h2700Kcal/h2966Kcal/h2811Kcal/h2700Kcal/h2966Kcal/h
Refrigerant charge780g640g880g780g640g880g780g640g880g
Pump power0.05kW0.1kW0.37kW
Max. lift12M25M27M28M
Max. flow13L/min16L/min70L/min
N.W53Kgs60Kgs53Kgs54Kgs60Kgs58Kgs60Kgs72Kgs
G.W63Kgs70Kgs63Kgs64Kgs70Kgs68Kgs70Kgs82Kgs
RefrigerantR-410a
Precision±0.5℃
ReducerCapillary
Tank capacity14L
Inlet and outletRp1/2"
Dimension67 X 47 X 89cm (L X W X H)
Package dimension74 X 61 X 103cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 3000W

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* User-friendly temperature controller

* Integrated alarm functions

* Back mounted water fill port and easy-to-read water level check

* Multiple power specifications

* High reliability, energy efficiency and durability

* Simple setup and operation

Application

* Laboratory equipment (rotary evaporator, vacuum system)

* Analytical equipment (spectrometer, bio analyzes, water sampler)

* Medical diagnostic equipment(MRI, X-ray)

* Machine tool (high speed spindle)

* Plastic molding machines

* Printing machine

* Furnace

* Welding machine

* Packaging machinery

* Plasma etching machine

* UV curing machine

* Gas generators

Optional Items



 Heater




Filter




 US standard plug / EN standard plug


Product Details


Intelligent temperature controller


The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.



Easy-to-read water level indicator


The water level indicator has 3 color areas - yellow, green and red.

Yellow area - high water level.

Green area - normal water level.

Red area - low water level.



Caster wheels for easy mobility


Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Certificate
Product Working Principle

FAQ
Is S&A Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (techsupport@teyu.com.cn) first.
