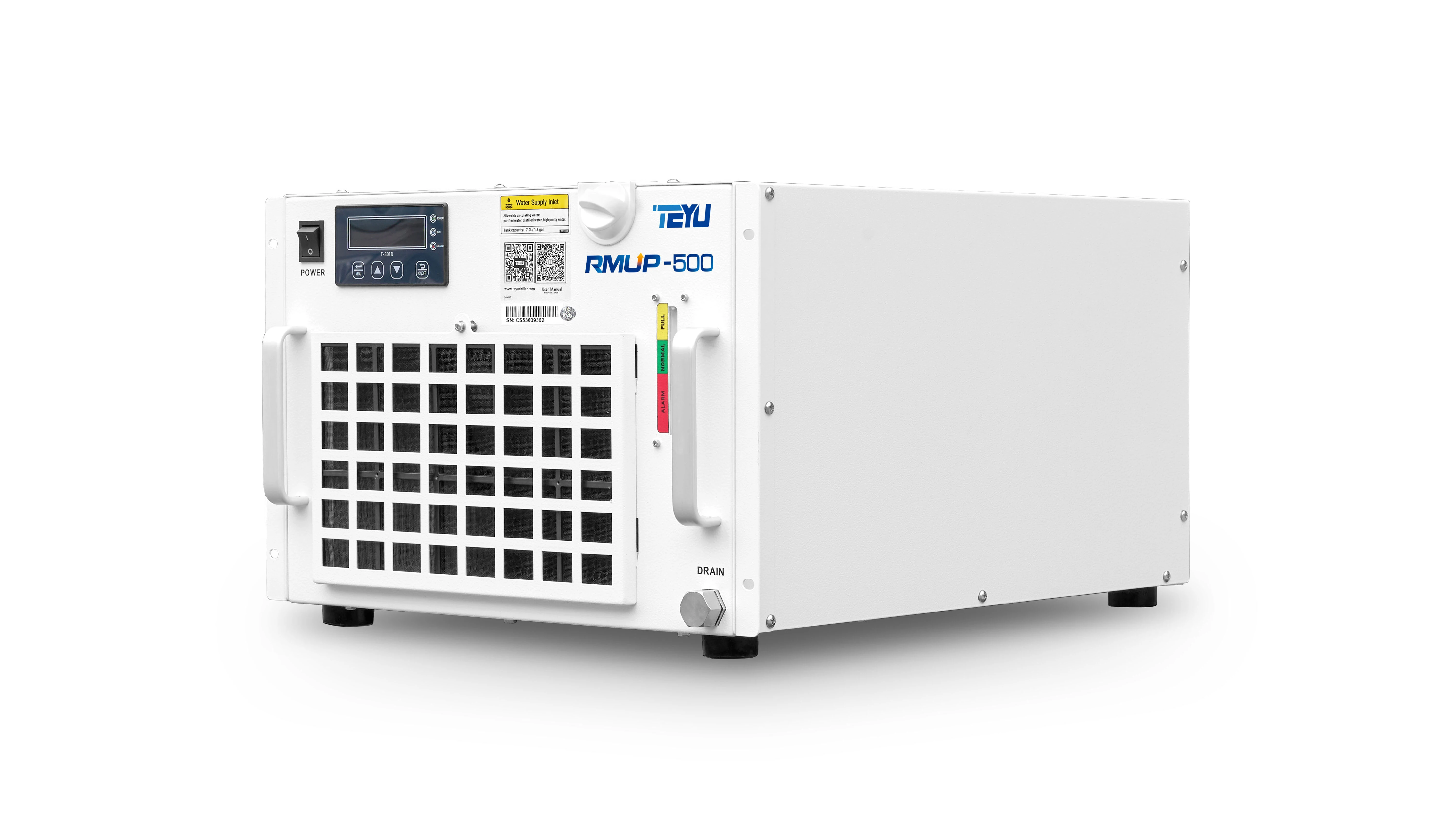

7U Rack Mount Chiller RMUP-500TNP for Ultrafast and UV Laser Cooling
7U Rack Mount Chiller RMUP-500TNP is engineered for ultrafast and UV laser applications where precision is critical. Offering ±0.1℃ temperature stability and dual-frequency power support (50/60Hz, 220–240V), it guarantees consistent results and reliable operation across global power systems.
Its 19-inch rack-mounted design maximizes lab space efficiency while delivering stable cooling for 10W–20W ultrafast and UV lasers. Quiet operation and low vibration safeguard sensitive optics, while a 5-micron filter improves water quality to extend system life. With RS-485 ModBus connectivity, users benefit from real-time monitoring and remote control, making it an ideal solution for ultrafast laser micromachining, UV medical device manufacturing, and semiconductor lithography.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Model: RMUP-500TNP
Machine Size: 67X48X33cm (L X W X H) 7U
Warranty: 2 years
Standard: CE, REACH and RoHS
Product Parameters
| Model | RMUP-500TNPTY | |
| Voltage | AC 1P 220-240V | |
| Frequency | 50Hz | 60Hz |
| Current | 1.2~5.7A | 1.2~5.7A |
| Max. power consumption | 2.05kW | 2.95kW |
| Compressor power | 1.73kW | 2.09kW |
| 2.32HP | 2.8HP | |
| Nominal cooling capacity | 4229Btu/h | |
| 1.24kW | ||
| 1064Kcal/h | ||
| Refrigerant | R-407c | |
| Precision | ±0.1℃ | |
| Reducer | Capillary | |
| Pump power | 0.26kW | |
| Tank capacity | 7L | |
| Inlet and outlet | Rp1/2” | |
| Max. pump pressure | 3bar | |
| Max. pump flow | 57L/min | |
| N.W. | 35Kg | |
| G.W. | 39Kg | |
| Dimension | 67x48x33cm (L X W X H) 7U | |
| Package dimension | 74x57x50cm (L X W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Features
Intelligent functions
* Low tank water level detecting
* Low water flow rate detecting
* Over water temperature detecting
* Heating of the coolant water at low ambient temperature
Self-check display
* 12 types of alarm codes
Easy routine maintenance
* Toolless maintenance of dustproof filter screen
* Quick-replaceable optional water filter
Communication function
* Equipped with RS485 Modbus RTU protocol
Optional Items
Product Details
Digital temperature controller
The T-801B temperature controller offers high precision temperature control of ±0.1°C.
Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.
Modbus RS485 communication port
The RS485 communication port enables communication with the laser system.
Certificate
Product Working Principle
FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the water chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
