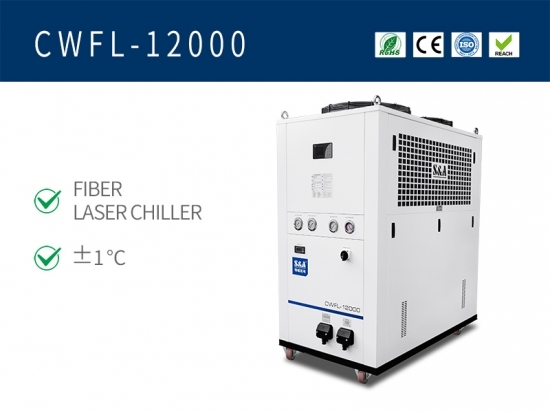

Recirculating refrigeration air-cooled water chillers CWFL-12000 for 12KW fiber laser

S&A CWFL-12000 dual temperature water chillers with 30000W cooling capacity and multiple alarm functions are specially designed for cooling 12000W fiber lasers and characterized by dual circulating refrigeration system and dual temperature control system.
  • Item NO.:

    CWFL-12000
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    30000W
  • Precision:

    ±1℃
  • Voltage:

    380V
  • Frequency:

    50Hz
  • Refrigerant:

    R-22/R-407C
  • Reducer:

    thermostatic expansion valve
  • Pump power:

    0.75W+1.1KW
  • Tank capacity:

    15L+145L
  • Inlet and outlet:

    Rp1/2+Rp1
  • Max.pump lift:

    53M+53M
  • Max.pump flow:

    70L/min+116L/min
  • N.W:

    500Kgs
  • G.W:

    630Kgs
  • Dimension:

    179*87*187(L*W*H)
  • Package dimension:

    189*110*207(L*W*H)
Inquiry now

Chiller For Co2 Laser

S&A CWFL-12000 dual temperature water chillers with 30000W cooling capacity and multiple alarm functions are specially designed for cooling 12000W fiber lasers and characterized by dual circulating refrigeration system and dual temperature control system.


The CWFL series industrial water chillers are so multi-functional that the laser device and the QBH connector/optics can be cooled by the low temperature control system and the high temperature control system respectively at the same time, which can greatly reduce the generation of the condensed water and save cost & space.

 S&A industrial chillers are applicable to cool fiber lasers from IPG, nLIGHT,Trumpf,Rofin,Coherent and SPI and provide effective cooling for laser cutting machines, laser welding machines and laser marking machines.




  Air-cooled water chillers features
1. 30000W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser device and the optics;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;

8. Optional heater and water filter.

9. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.


  12KW fiber laser water chillers specification

 12KW fiber laser water chillers specification


  CONTOUR AND PARTS INTRODUCTION

chillers CONTOUR AND PARTS INTRODUCTION


Independent production of sheet metal, evaporator and condenser

Adopt IPG fiber laser for welding and cutting sheet metal.


High precision temperature control system with dual temperature control function

Temperature control accuracy can reach ±1℃. High temp. for QBH connector/optics and low temp. for laser device.


Multiple alarm protection
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.
 water chillers dual temperature control function


Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

water chiller machines universal wheels refrigeration type water chillers pressure gauges



Dual inlet and dual outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

water chillers dual inlet and outlet


Level gauge equipped

dual temp. water chillers level gauge


Cooling fan of famous brand installed.

Adopt SAN JU cooling fan with high quality and low failure rate.
industrial water chillers cooling fan


Customized dust gauze available and easy to take apart

 fiber laser chillers


  CHILLER APPLICATION

 fiber chillers application






  WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop


  TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM



S&A Refrigeration Industrial Water Chiller CWFL-12000 video

How to set water temperature for T-507 temperature controller of dual temp chiller



  CHILLER APPLICATION

 fiber chillers application
