Efficient Stable Refrigeration Equipment for 80000W High Power Fiber Laser Cutting Welding Drilling Machine

Efficient Stable Refrigeration Equipment for 80000W High Power Fiber Laser Cutting Welding Drilling Machine

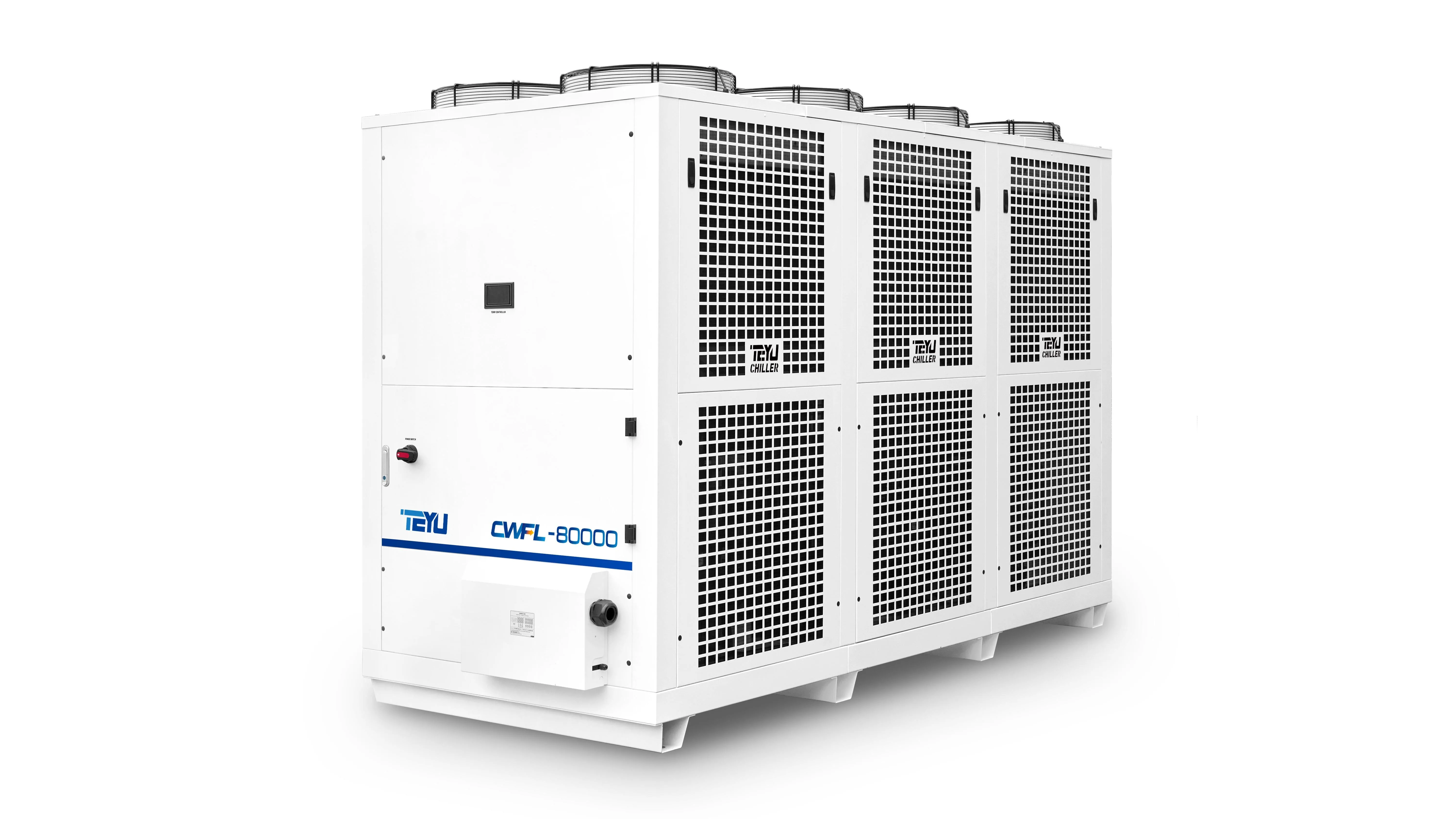

Efficient Stable Refrigeration Equipment CWFL-80000, is specially designed by TEYU Chiller Manufacturer to cool up to 80kW high power fiber laser cutting welding drilling machine, featuring high reliability, high performance and high intelligence. Its refrigerant circuit system adopts solenoid valve bypass technology to avoid the compressor's frequent start/stop to prolong its service life. All of the components are carefully selected to ensure reliable operation.

Refrigeration Equipment CWFL-80000 integrates dual cooling circuits designed for the laser and the optics, providing a dual protection effect on the laser cutting equipment, gradually optimizing energy efficiency through distinct temperature regulation during long-term operation. The design of the ModBus-485 communication adds a layer of convenience, enhancing connectivity and control for seamless operation. It also features multiple alarm functions for all-around protection for both the chiller and fiber laser machine.

Inquiry

Write a Review

Product Introduction

Model: CWFL-80000

Machine Size: 340X139X220cm (L X W X H)

Warranty: 2 years

Application: for 80kW Fiber Laser

Product Parameters

Model	CWFL-80000ETTY
Voltage	AC 3P 380V
Frequency	50Hz
Current	30.2~159.5A
Max. power consumption	82.19kW
Heater power	12kW+5.4kW
Precision	±1.5℃
Reducer	Capillary
Pump power	H: 0.75kW, L: 5.5kW+5.5kW
Tank capacity	600L
Inlet and outlet	Rp 1/2"+Rp 2"*2
Max. pump pressure	H: 5.4bar, L: 7bar
Rated flow	H: 10L/min, L: ＞1600L/min
N.W.	1492Kg
G.W.	1859Kg
Dimension	340X139X220cm (L X W X H)
Package dimension	355X163X244cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V

Optional Items

Heater

Filter

Product Details

80kW Fiber Laser Chiller CWFL-80000 Temperature Controller

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

80kW Fiber Laser Chiller CWFL-80000 Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Junction Box

Professionally designed by engineers from TEYU chiller manufacturers, easy and stable wiring.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

TEYU Laser Chiller CWFL-80000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
