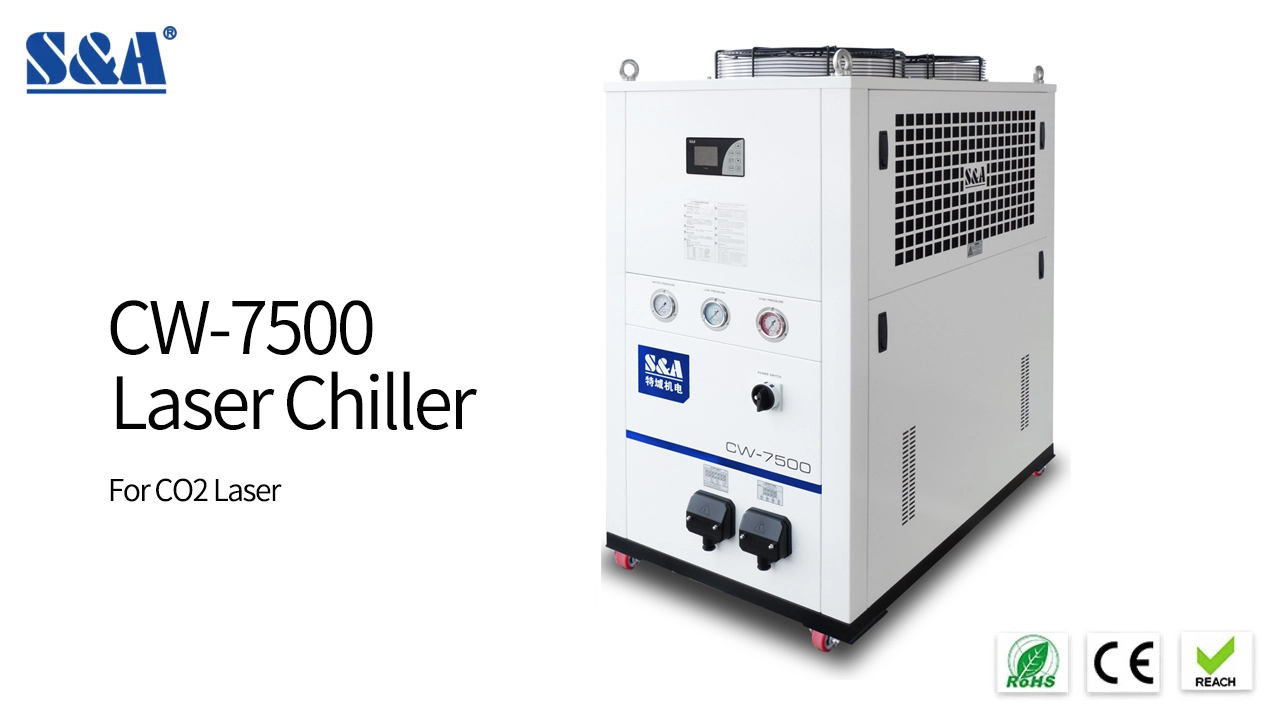

Refrigeration industrial water chiller systems CW-7500 14000W cooling capacity

S&A CW-7500  Refrigeration industrial water chiller systems with 14000W cooling capacity, support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.
  • Item NO.:

    CW-7500
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    14000W
  • Precision:

    ±1℃
  • Voltage:

    380V
  • Frequency:

    50/60Hz
  • Refrigerant charge:

    R-22/R-407C
  • Reducer:

    Capillary
  • Pump power:

    0.37-1.1KW
  • Tank capacity:

    75L
  • Inlet and outlet:

    Rp1
  • Max.pump lift:

    28M-53M
  • Max.pump flow:

    70-116L/min
  • N.W:

    325Kgs
  • G.W:

    410Kgs
  • Dimension:

    129*70*149(L*W*H)
  • Package dimension:

    145*92*178(L*W*H)
Inquiry now

S&A CW-7500  Refrigeration industrial water chiller systems with 14000W cooling capacity, support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.




  Compressor refrigeration water chillers features
1. 14000W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs ;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;

8. Optional heater and water filter.

9. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.


  Industrial water chiller systems  specification

Industrial water chiller systems specification



  CONTOUR AND PARTS INTRODUCTION

air cooled water chiller CONTOUR AND PARTS



Independent production of sheet metal, evaporator and condenser

Multiple alarm protection

Adopt IPG fiber laser for welding and cutting sheet metal. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

chiller Multiple alarm protection




Equipped with water pressure gauges ,drain outlet with valve and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

water chiller machines universal wheels refrigeration type water chillers pressure gauges



Inlet and outlet connector equipped.

Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

water chillers dual inlet and outlet


Level gauge equipped

dual temp. water chillers level gauge


Cooling fan of famous brand installed.

Adopt SAN JU cooling fan with high quality and low failure rate.
industrial water chillers cooling fan


Customized dust gauze available and easy to take apart

water chiller Customized dust gauze available




  CHILLER APPLICATION



industrial water chillers application





  WAREHOUSE
18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

air cooled water chillers workshop


  TEST SYSTEM
With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

WATER CHILLER TEST SYSTEM



S&A industrial water chiller CW-75000 video

How to set water temperature for T-507 temperature controller of dual temp chiller


  CHILLER APPLICATION


industrial water chillers application
