refrigeration water chillers CW-6000 cooling capacity 3000W multiple alarm functions

CW-6000 industrial water chiller is the perfect temperature control system for laser, high frequency welding machine, induction brazing machine, EDM machine, spot welding machine, vacuum pump system and more.
  • Item NO.:

    CW-6000
  • Product Origin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou,China
  • Cooling capacity:

    3000W
  • Precision:

    ±0.5℃
  • Voltage:

    110/220V
  • Frequency:

    50/60Hz
  • Refrigerant:

    R-410a
  • Reducer:

    capillary
  • Pump power:

    0.05KW/0.1KW/0.37KW
  • Tank capacity:

    15L
  • Inlet and outlet:

    Rp1/2
  • Max.pump lift:

    12M/25M/28M
  • Max.pump flow:

    13L/min, 16L/min, 70L/min
  • N.W:

    60Kgs/72Kgs
  • G.W:

    70Kgs/82Kgs
  • Dimension:

    67*47*89(L*W*H)
  • Package dimension:

    74*61*104(L*W*H)
Inquiry now

WATER CHILLER

CW-6000 industrial water chiller is the perfect temperature control system for laser, high frequency welding machine, induction brazing machine, EDM machine, spot welding machine, vacuum pump system and more.


This refrigeration chiller is engineered to deliver high temperature stability of ±0.5℃ and a refrigeration capacity up to 3KW.

CW-6000 chiller provides outstanding reliability backed by a powerful compressor while its unmatched performance is also assured by CE, REACH, ISO and ROHS certification.

The warranty period is 2 years.


  Features
1. 3000W refrigeration capacity. R-410a refrigerant with low global warming potential;
2. ±0.5℃ temperature stability;
3. Temperature control range: 5-35 ℃;
4. Constant temperature and intelligent temperature control modes;
5. Built-in alarm functions to avoid water flow problem or temperature problem;
6. CE, RoHS , ISO and REACH certification;
7. Available in 220V or 110V
8. Optional heater and water filter

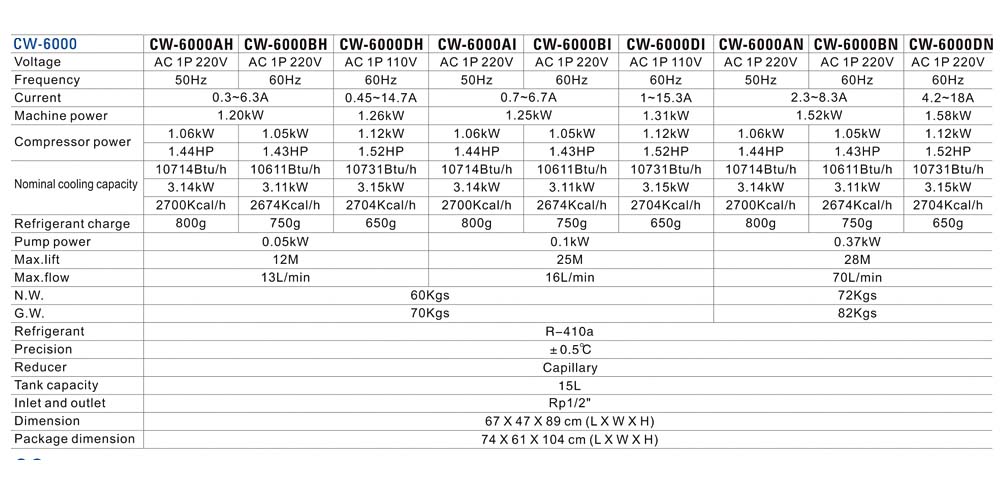

 Specification

1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment).

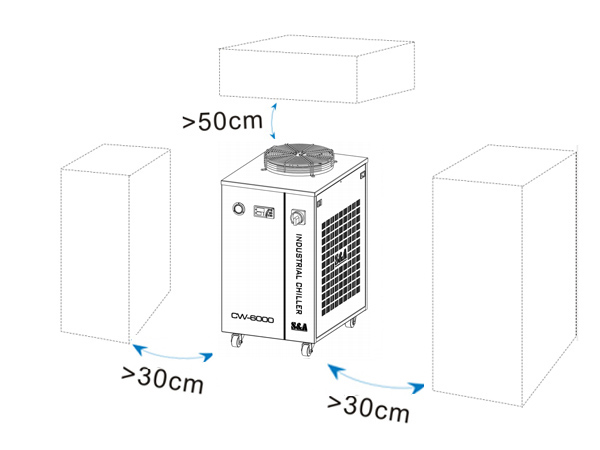

4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.




  PRODUCT INTRODUCTION

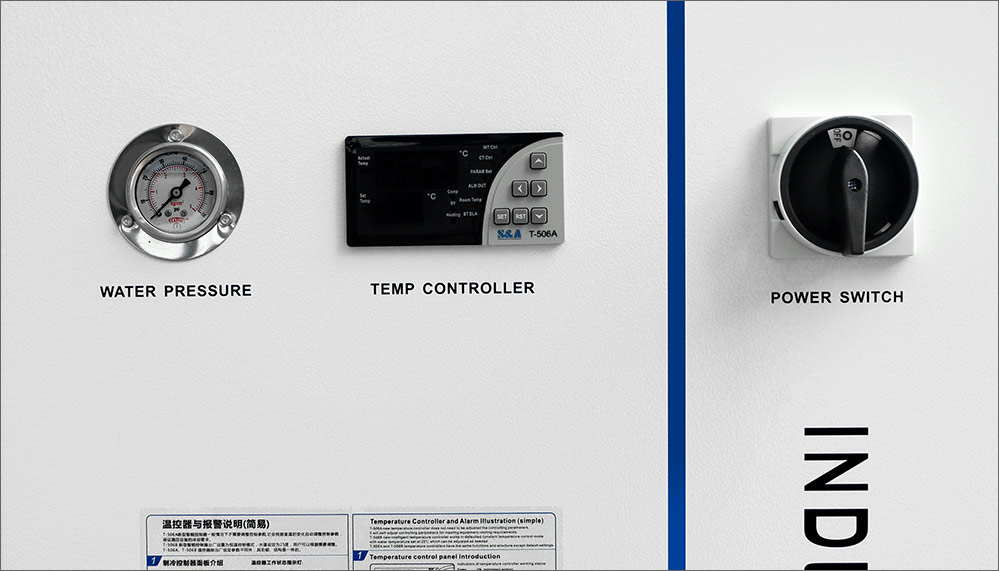

User-friendly temperature controllers for easy operation

temperature controller


Equipped with caster wheels for easy mobility

water pressure gauge & universal wheel

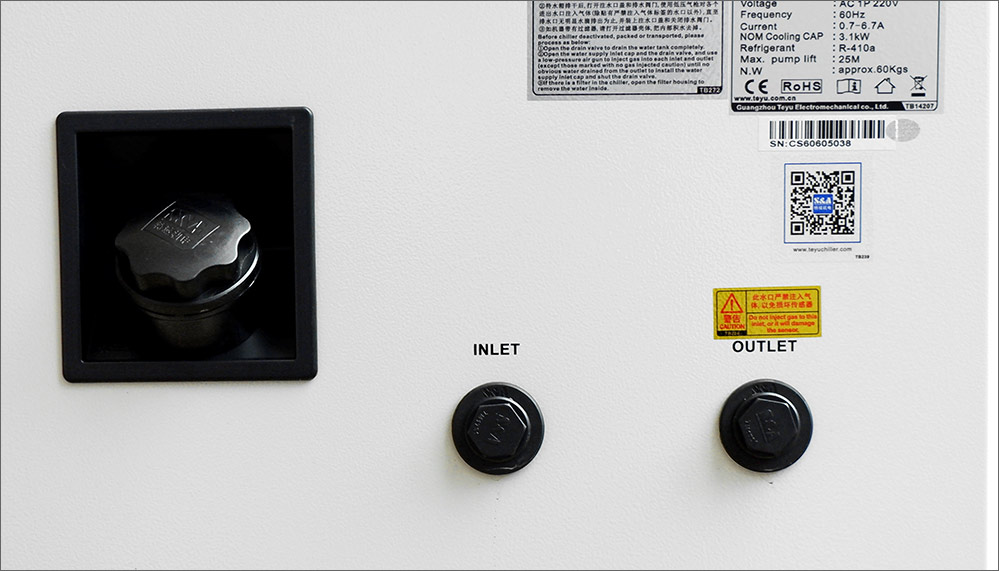

Water inlet and outlet ports made from stainless steel to prevent potential corrosion or water leakage.

water inlet & outlet

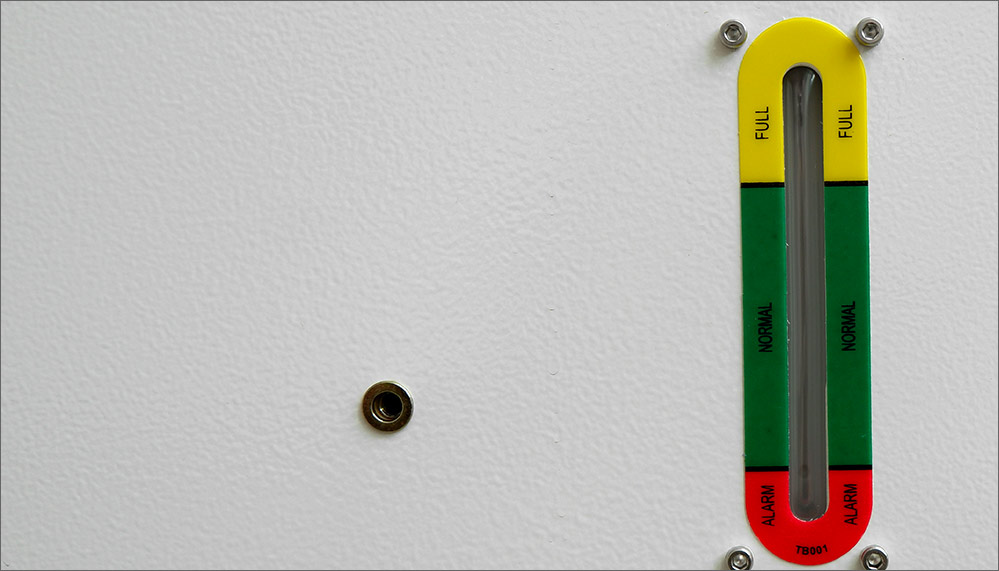

Easy-to-read water level check. Fill the tank until the water reaches the green area.

water level gauge

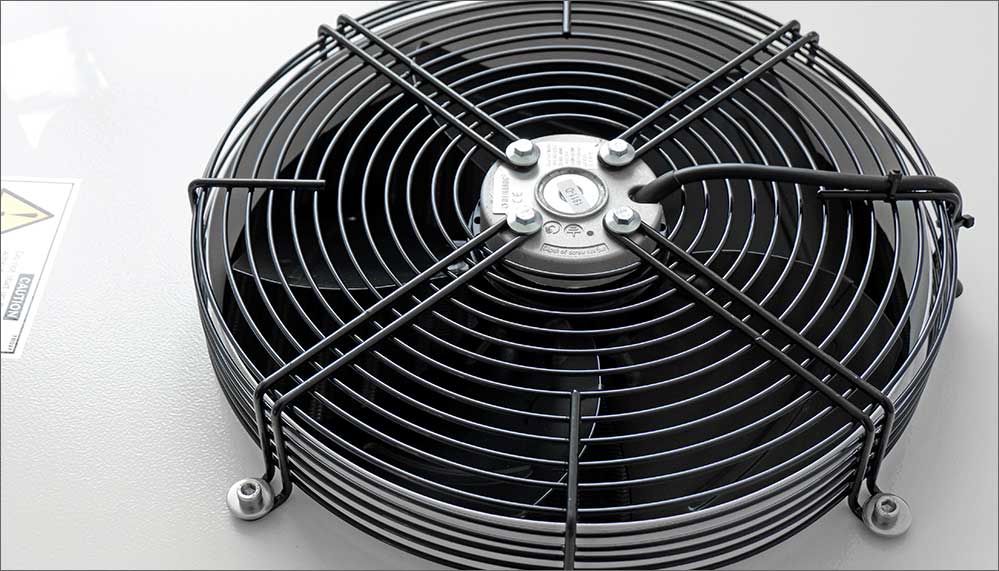

Cooling fan of famous brand installed.

With high quality and low failure rate.

cooling fan



How to adjust the water temperature for T-506 intelligent mode of chiller

S&A Teyu water chiller CW-6000 for high precision UV printer

S&A Teyu water chiller CW-6000 for cooling AD laser welding machine

S&A Teyu water chiller CW-6000 for cooling laser cutting & engraving machine

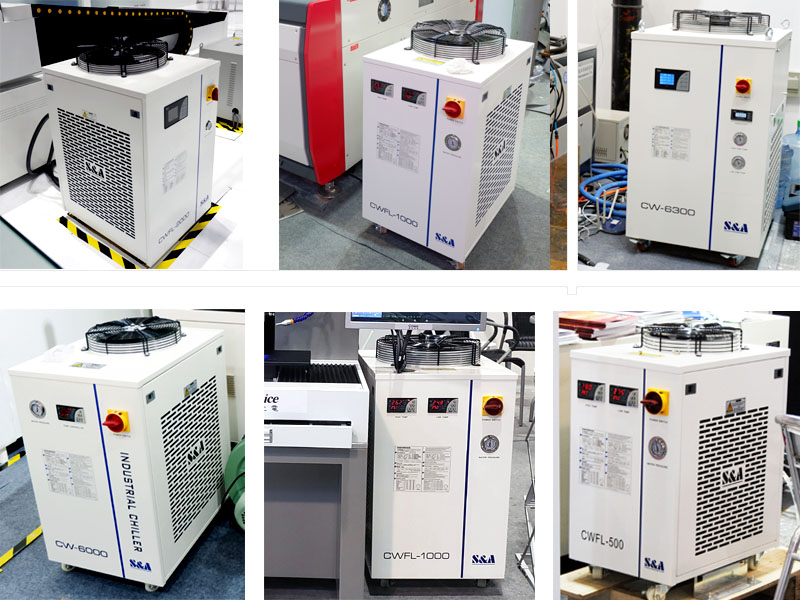

  CHILLER APPLICATION



 CHILLER APPLICATION



Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Why us
  • Technology Leader Technology Leader

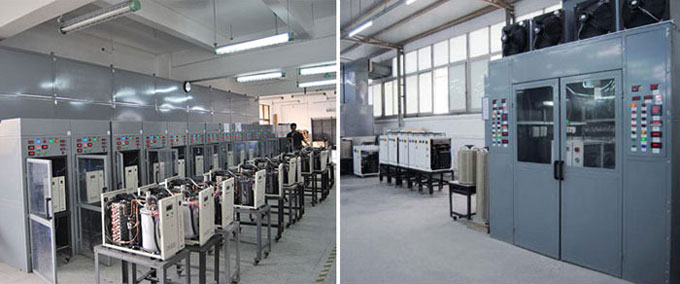

    Provide systematic products and customized service; Products diversification and wide applications; More than 90 chiller models to choose; More than 120 chiller models available for customization; Applicable to over 100 manufacturing and processing industries; Cooling capacity ranging from 0.6kW to 30 kW. Technology Advantage a. With 19 years development, gradually grow as the industry standard builder and quality guarantee. b. ±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication, which can realize the commnucation between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers, constant temperature and intelligent temperature control modes. c. With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller. Product Advantage a. With 11 patent certificates and won Quality integrity Level A certificate; b. ISO 9001, CE, RoHS and REACH environmental certificated. c. Conforms to air transport requirements, energy saving and environment friendly. d. Offer customized service to fulfill various demands of customer. e. Independent production of sheet metal, evaporator and condenser,minmize risks of water and refrigerant leakage and improve quality.
  • Production Advantage Production Advantage

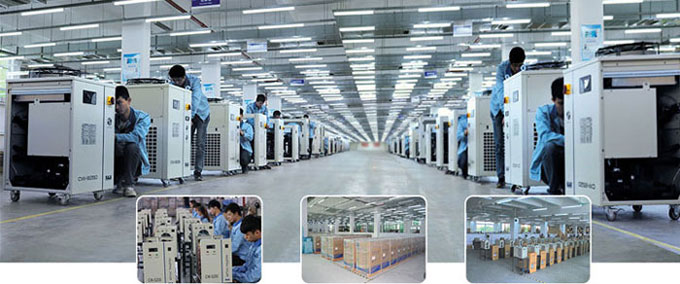

    18,000 square meters brand new industrial refrigeration system research center and production base. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability. Annual production capacity of 80,000 units, focus on large, medium and small power chiller production and manufacture. S&A Teyu Chiller Quality Control System Purchasing Strictly control and manage supply chain Ensure that each component is compliant with using standard Pre-production control Full inspection on key components Aging test on key components Production assembly process Standardized implementation on technology Assemble the chillers in strict accordance with specific regulated manufacturing procedures. Before delivery Overall performance testing Aging test and complete performance test must be executed  on each finished chiller. Delivery Delivery on time Shorten the overall response cycle of customer's supply chain Customer service 2 years warranty Lifetime maintaince and repair 24/7 hotline service with quick response
