Product Description

CO2 CHILLER

S&A Teyu small industrial cooling unit CW-5200 is characterized by portable design and efficient refrigeration, so it is an ideal accessory for cosmetic laser equipment..


S&A Teyu co2 laser water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.

S&A Teyu co2 glass chillers covers 50% of market share of the CO2 laser refrigeration industry with annual sales amount of 30,000 units. After 16-year development, S&A Teyu has become a well-known and popular brand in laser cooling industry.


THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.



  Co2 chiller unit features

1. 1400W cooling capacity; use environmental refrigerant;

2. Compact size, long working life and simple operation;

3. ±0.3°C precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;  with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;

7. Optional heater and water filter.


  Specification


One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

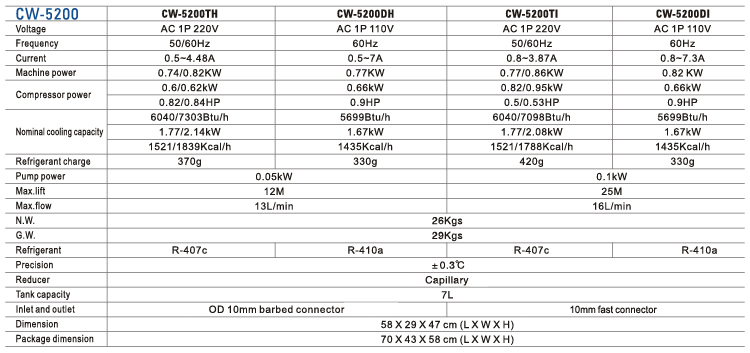

parameter

 Note:

1.other electric sources can be customized; heating and higher temperature control precision functions are optional;

2.the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.


  PRODUCT INTRODUCTION


Independent production of sheet metal,evaporator and condenser

High precision temperature control system

Adopt IPG fiber laser for welding and cutting sheet metal. Temperature control accuracy can reach ±0.3°C.

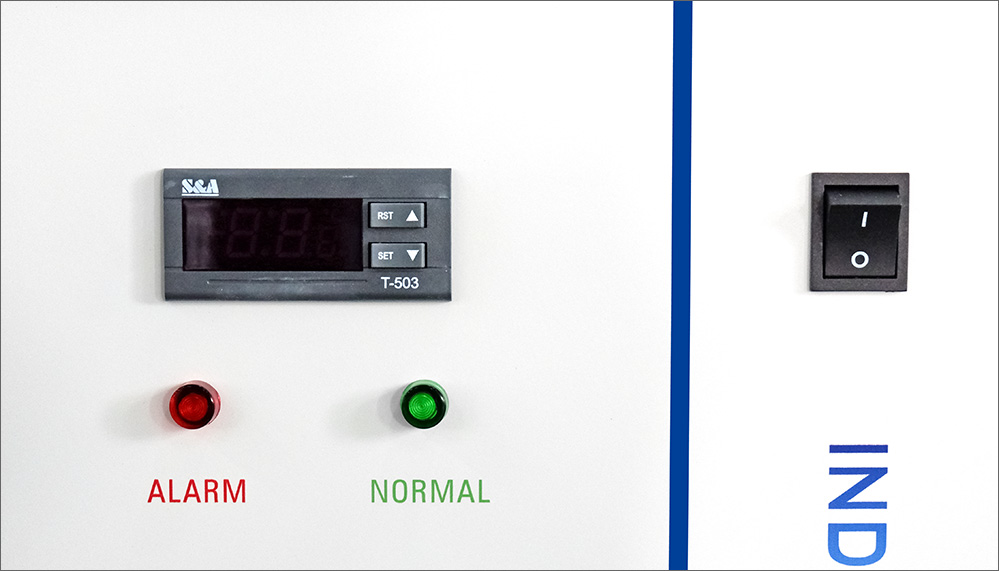

temperature controller


Ease  of  moving  and  water  filling

The firm handle can help move the water chillers easily.

water supply inlet



Inlet  and  outlet  connector  equipped

Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

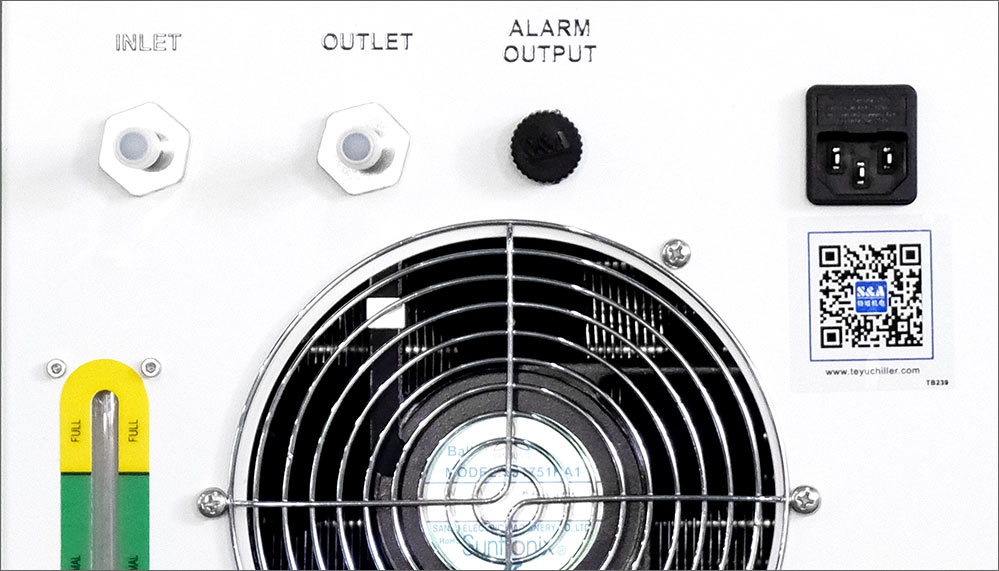

water inlet & outlet


Cooling fan of famous brand installed.

Level gauge equipped.
Cooling fan with high quality and low failure rate.

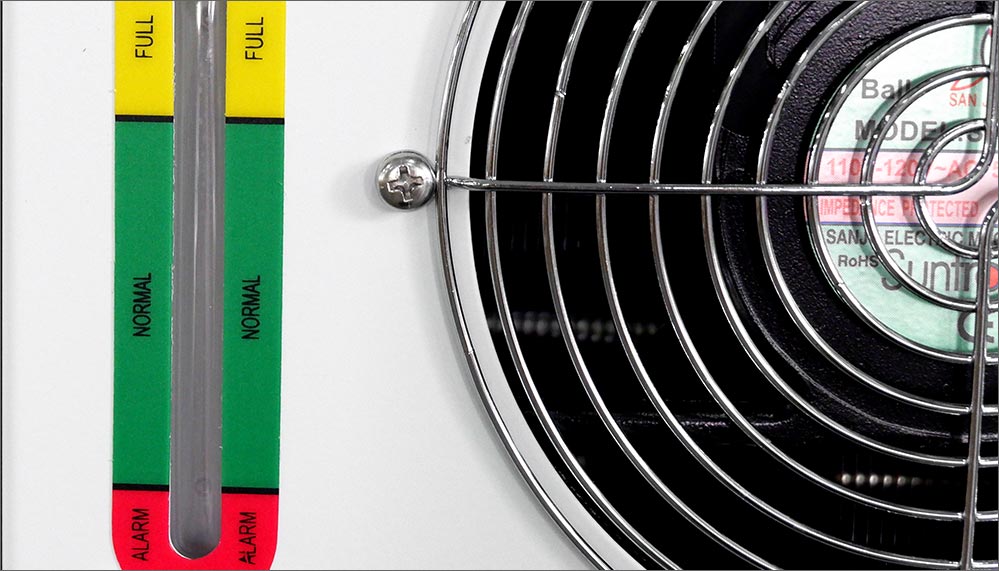

 water level gauge & cooling fan


Alarm description

CW-5200 chiller is designed with built-in alarm functions.

E1 - over high room temperature
E2 - over high water temperature
E3 - over low water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure




  Identify Teyu(S&A Teyu) authentic chiller


All of S&A Teyu water chillers are certified with design patent. Counterfeiting is not allowed.
Please recognize S&A Teyu logo when you purchase S&A Teyu water chillers.

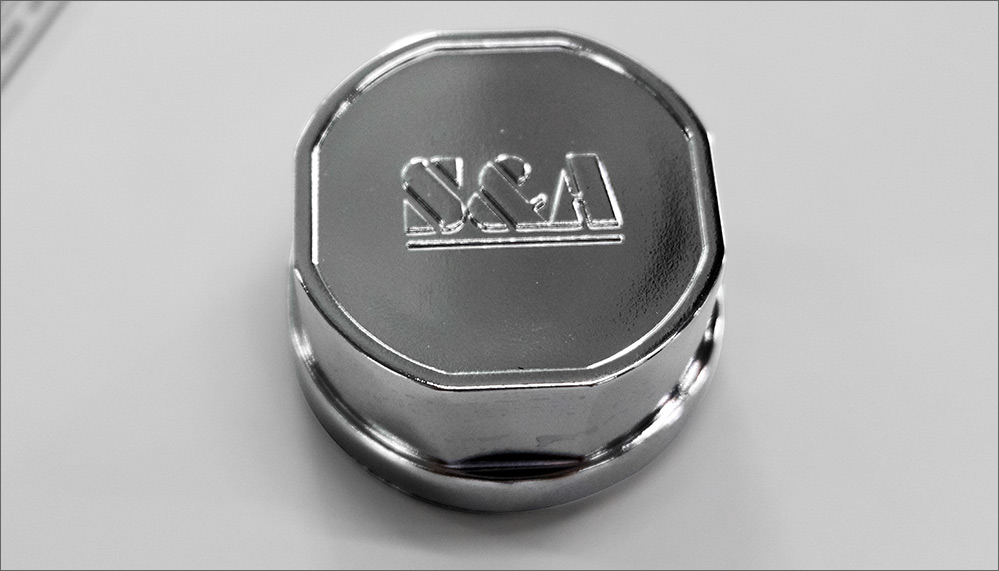

Components carry “S&A Teyu” brand logo. It is an important identification distinguishing from counterfeit machine.
S&A Teyu water chillers logo


  More than 3,000 manufacturers choosing Teyu (S&A Teyu)

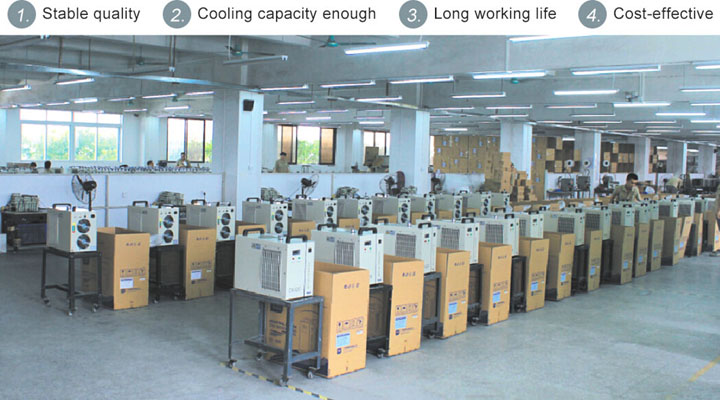

chiller workshop


  The reasons of quality guarantee of Teyu (S&A Teyu) chiller

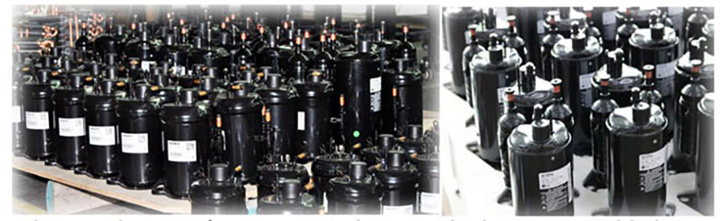

Compressor in Teyu chiller: adopt compressors from Toshiba, Hitachi, Panasonic and LG etc well-known joint venture brands.
water chiller compressor

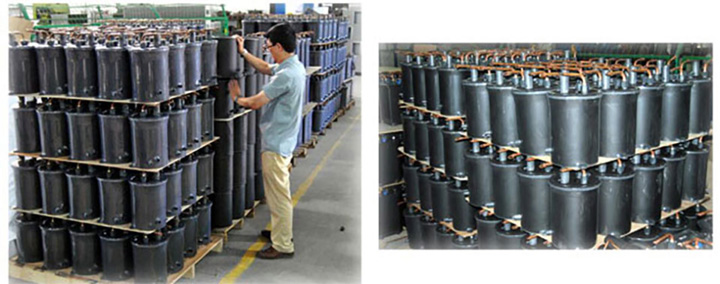

Independent production of evaporator: adopt standard injection molded evaporator to minimize risks of water and refrigerant leakage and improve quality.

water chiller evaporator

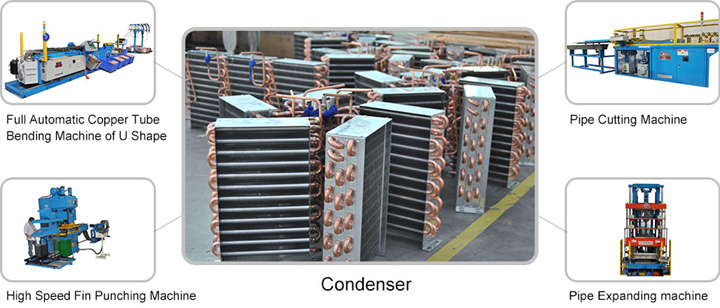

Independent production of condenser: condenser is the center hub of industrial chiller. Teyu invested millions in condenser production facilities for the sake of strictly monitoring production process of fin, pipe bending and welding etc to ensure the quality.Condenser production facilities: High Speed Fin Punching Machine, Full Automatic Copper Tube Bending Machine of U Shape, Pipe Expanding Machine, Pipe Cutting Machine.

chiller condenser


Independent production of Chiller sheet metal: manufactured by IPG fiber laser cutting machine and welding manipulator. Higher than higher quality is always the aspiration of S&A Teyu

S&A Teyu chiller

Video

Small Portable Chiller CW-5200

How to adjust the water temperature for T-503 intelligent mode of chiller

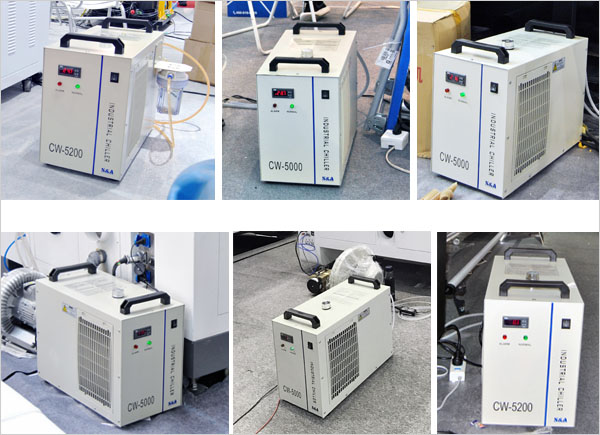

S&A Teyu cw5200 industrial water chillers application

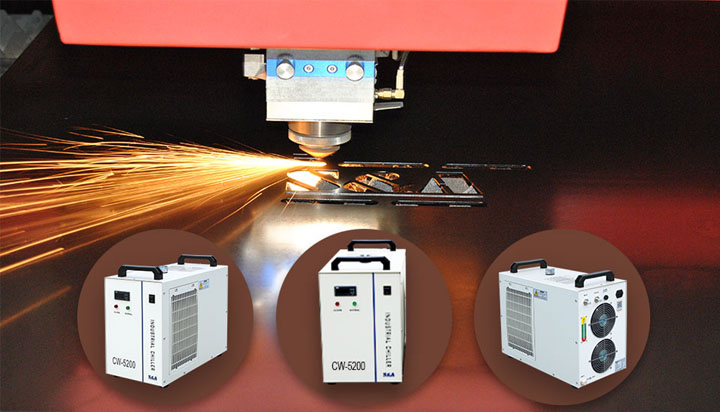

Chiller Application

CW5000 CHILLER APPLICATON
