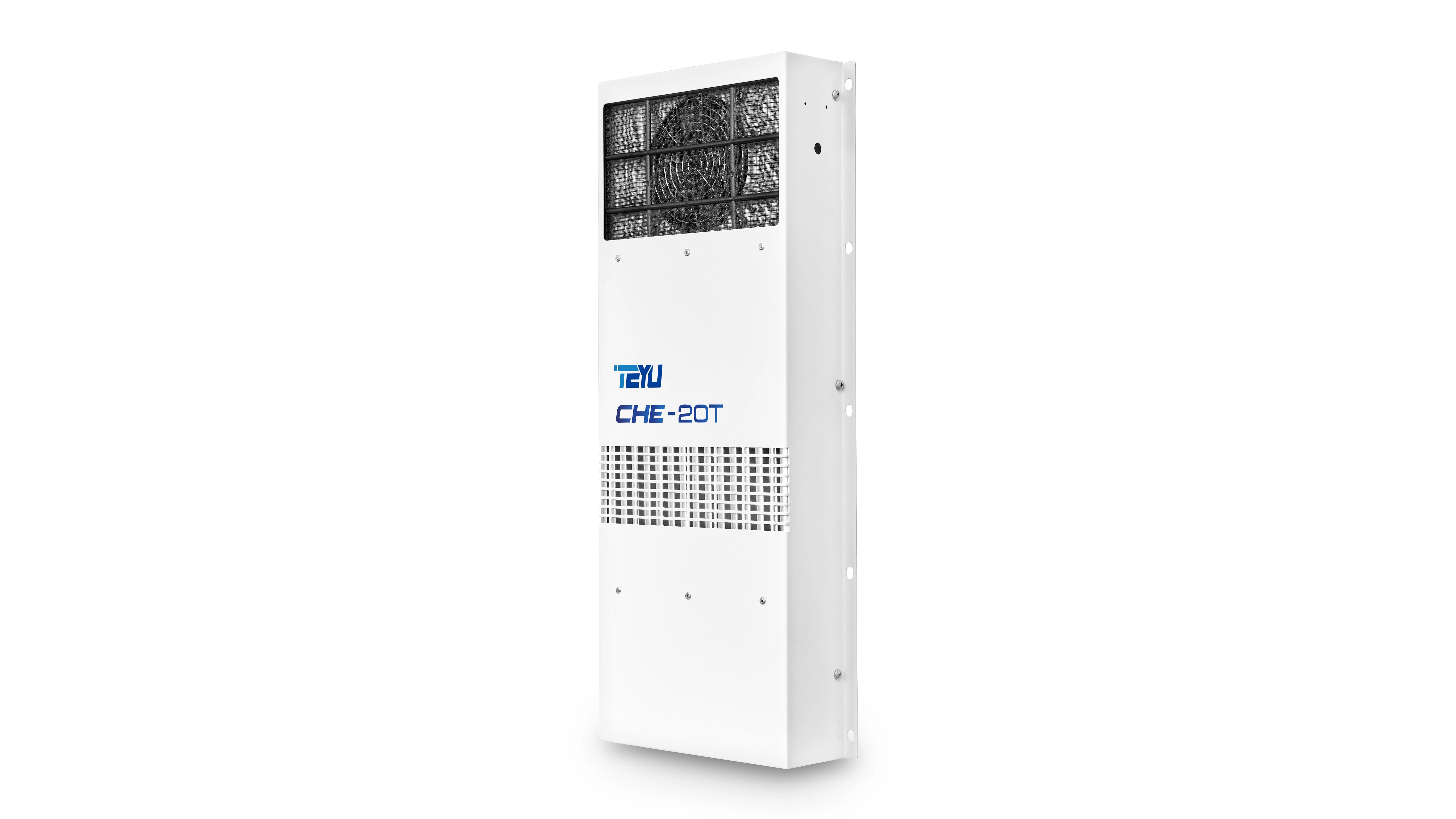

TEYU CHE-20T Cabinet Heat Exchanger for CNC and Industrial Control Cabinets

TEYU CHE-20T Cabinet Heat Exchanger for CNC and Industrial Control Cabinets

TEYU CHE-20T cabinet heat exchanger is designed for industrial environments, delivering reliable and energy-efficient temperature control. Its dual-circulation airflow system provides double protection against dust, oil mist, moisture, and corrosive gases, while advanced temperature control technology keeps operating temperatures above the air dew point to eliminate condensation risks. With a slim design and flexible installation for both internal and external mounting, it adapts easily to limited spaces.

Engineered for durability and low maintenance, the CHE-20T offers up to 200W heat exchange capacity with simple structure, low energy consumption, and reduced operating costs. It is widely applied in CNC systems, communication equipment, power machinery, foundry environments, and electrical control cabinets, ensuring long-term stability, extending equipment life, and lowering maintenance efforts.

Inquiry

Write a Review

Dual Protection

Flexible Compatibility

Anti-Condensation

Simple Structure

Product Parameters

Model	CHE-20T-03RTY	Voltage	1/PE AC 220V
Frequency	50/60Hz	Current	0.2A
Max. power consumption	28/22W	Radiating capacity	10W/℃
N.W.	4Kg	Max. Heat Exchange Capacity	200W
G.W.	5Kg	Dimension	25 X 8 X 60cm (L X W X H)
Package dimension	32 X 14 X 65cm (L X W X H)

Note: The heat exchanger is designed for a maximum temperature difference of 20°C.

More details

External Air Inlet

Draws in ambient air through the external circulation channel, equipped with protective design to block dust, oil mist, and moisture from entering the cabinet.

External Air Outlet

Expels processed air smoothly to maintain efficient heat exchange, ensuring stable cooling performance and reliable protection in harsh industrial environments.

Internal Air Outlet

Distributes cooled internal air evenly inside the cabinet, keeping temperature stable and preventing hotspots for sensitive electrical components.

Installation methods

Certificate

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
