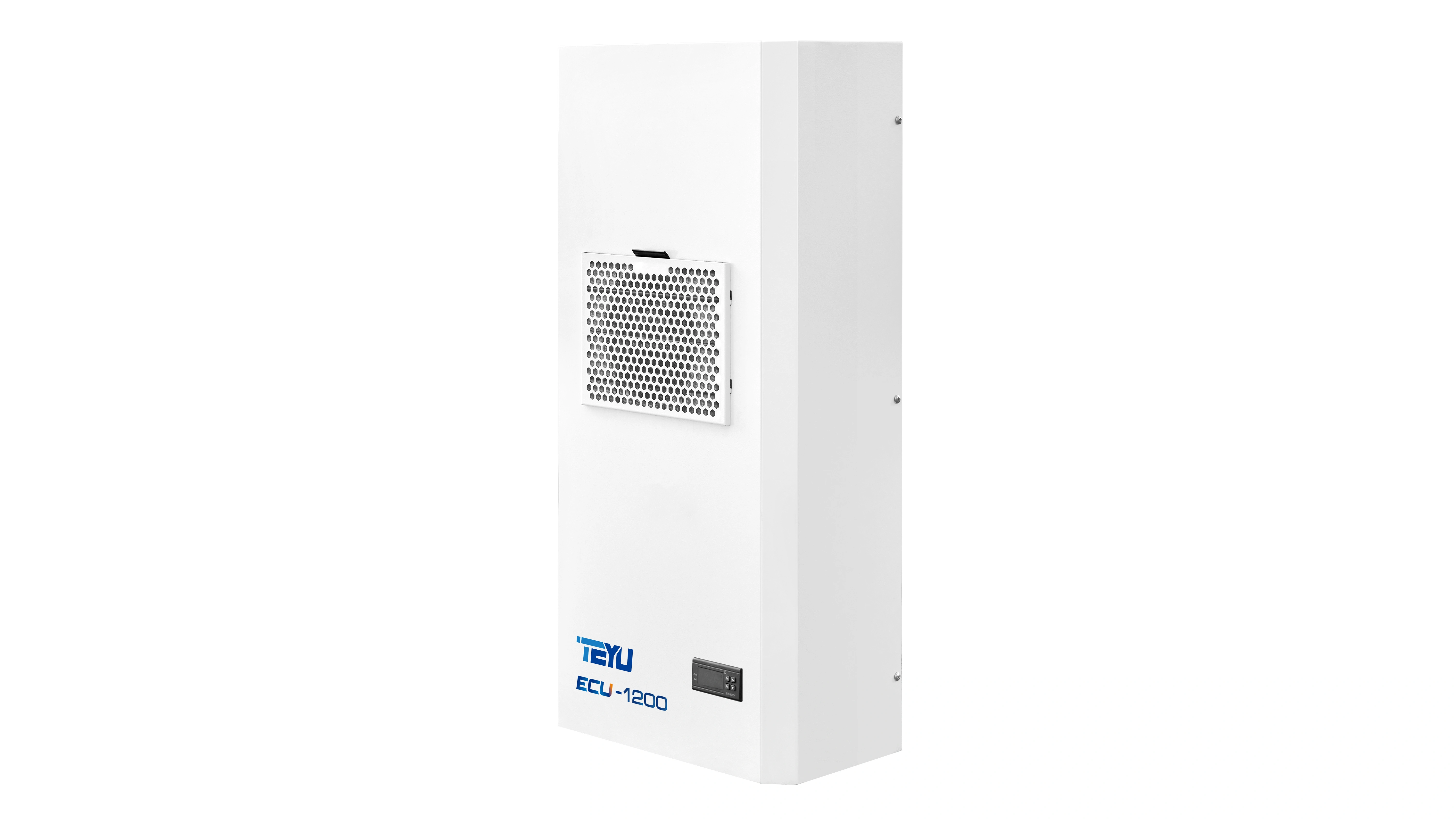

TEYU ECU-1200 Enclosure Cooling Unit for CNC and Industrial Cabinets

TEYU ECU-1200 Enclosure Cooling Unit for CNC and Industrial Cabinets

TEYU ECU-1200 enclosure cooling unit ensures precise climate control with a digital thermostat that continuously monitors and stabilizes cabinet temperature. Powered by a trusted compressor, it delivers 1200/1440W of efficient, energy-saving cooling, quickly adjusting heat loads while keeping energy costs low. Optional condensate solutions, including an evaporator or water box, keep enclosures dry and well protected.

Built for demanding environments, the enclosure cooling unit ECU-1200 is a reliable choice for CNC systems, communication cabinets, power machinery, laser equipment, instrumentation, and textile machinery. With a wide operating range of -5°C to 50°C, low-noise operation at ≤63dB, and eco-friendly R-134a refrigerant, it safeguards critical equipment, extends service life, and boosts overall productivity.

Inquiry

Write a Review

TEYU ECU-1200

TEYU ECU-1200 delivers 1200/1440W of efficient cooling with precise digital temperature control. Ideal for CNC systems, electrical cabinets, laser equipment, and industrial enclosures, it ensures stable performance, protects equipment, and boosts productivity.

50/60Hz

Frequency

1200/1440W

Cooling Capacity

25~38℃

Set Temperature Range

-5~50℃

Ambient Temperature Range

TEYU-Enclosure-Cooling-Unit-for-CNC-Cabinets

Eco-Friendly Refrigerant

Stable and durable

Intelligent protection

Compact & Light

Product Parameters

Model	ECU-1200T-03RTY	Voltage	AC 1P 220V
Frequency	50/60Hz	Ambient temperature range	﹣5~50℃
Rated cooling capacity	1200/1440W	Set temperature range	25~38℃
Max. power consumption	680/760W	Rated current	3/3.6A
Refrigerant	R-134a	Refrigerant charge	300g
Noise level	≤63dB	Internal circulation airflow	300m³/h
Power connection	Reserved wiring terminal	External circulation airflow	500m³/h
N.W.	28Kg	Power cord length	2m
G.W.	29Kg	Dimension	32 X 19 X 75cm (L X W X H)
Package dimension	43 X 26 X 82cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

More details

Temperature Controller

Accurately manages cabinet temperature to ensure reliable, long-lasting performance.

Condenser Air Inlet

Provides smooth, efficient airflow intake for optimal heat dissipation and stability.

Air Outlet (Cool Air)

Delivers steady, targeted cooling airflow to safeguard sensitive components.

Panel Opening Dimensions & Component Description

Installation methods

Note: Users are advised to make selections based on their specific usage requirements.

Certificate

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
