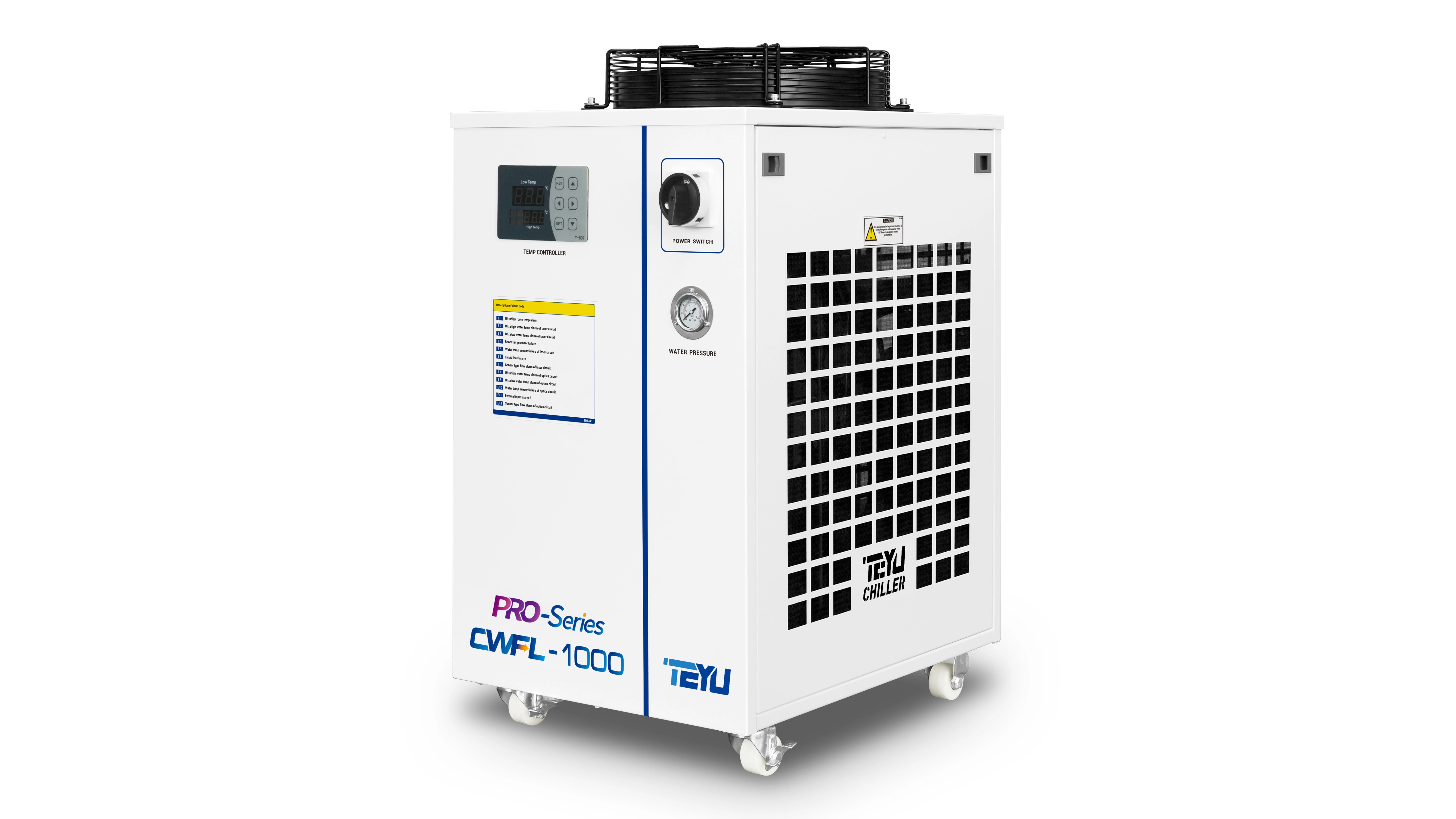

Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine

Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine

TEYU CWFL-1000 water chiller is a high-efficiency dual-circuit cooling solution designed for fiber laser cutting and welding machines up to 1kW. Each circuit operates independently—one for cooling the fiber laser and the other for cooling the optics—eliminating the need for two separate chillers.

TEYU CWFL-1000 water chiller is built with components that comply with CE, REACH, and RoHS standards. It provides precise cooling with ±0.5°C stability, helping to extend the lifespan and enhance the performance of your fiber laser system. Additionally, multiple built-in alarms protect both the laser chiller and the laser equipment. Four caster wheels offer easy mobility, providing unmatched flexibility. The CWFL-1000 chiller is the ideal cooling solution for your 500W-1000W laser cutter or welder.

Inquiry

Write a Review

Product Introduction

Model: CWFL-1000

Machine Size: 70 X 47 X 89cm (LX W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

Model	CWFL-1000ANPTY	CWFL-1000BNPTY
Voltage	AC 1P 220-240V	AC 1P 220-2400V
Frequency	50Hz	60Hz
Current	2.5~13.5A	3.9~15.5A
Max. power consumption	2.53kW	3.14kW
Heater power	0.55kW+0.6kW
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37kW	0.75kW
Tank capacity	14L
Inlet and outlet	Rp1/2"+Rp1/2"
Max. pump pressure	3.6bar	5.3bar
Rated flow	2L/min + >12L/min
N.W.	63Kg	66Kg
G.W.	75Kg	76Kg
Dimension	70 X 47 X 89cm (LX W X H)
Package dimension	73 X 56 X 105cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A

* User-friendly controller interface

* Integrated alarm functions

* Back mounted fill port and visual water level

* Optimized for high performance at low temperatures

* Ready for immediate use

Optional Items

Heater

Filter

US standard plug / EN standard plug

Product Details

Process Water Chiller CWFL-1000 temperature control

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

TEYU 1000 Laser Welding Chiller Water Inlet and Water Outlet

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

1000W Laser Engraver Chiller Caster wheels

Caster wheels for easy mobility

Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Industrial Water Chiller Ventilation Distance

Certificate

Product Working Principle

Laser Cutting Machine Chiller CWFL-1000 Working Principle

FAQ

Is TEYU Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the water chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
